Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $37.61 | $36.84 | $35.69 | $34.16 | Contact US |

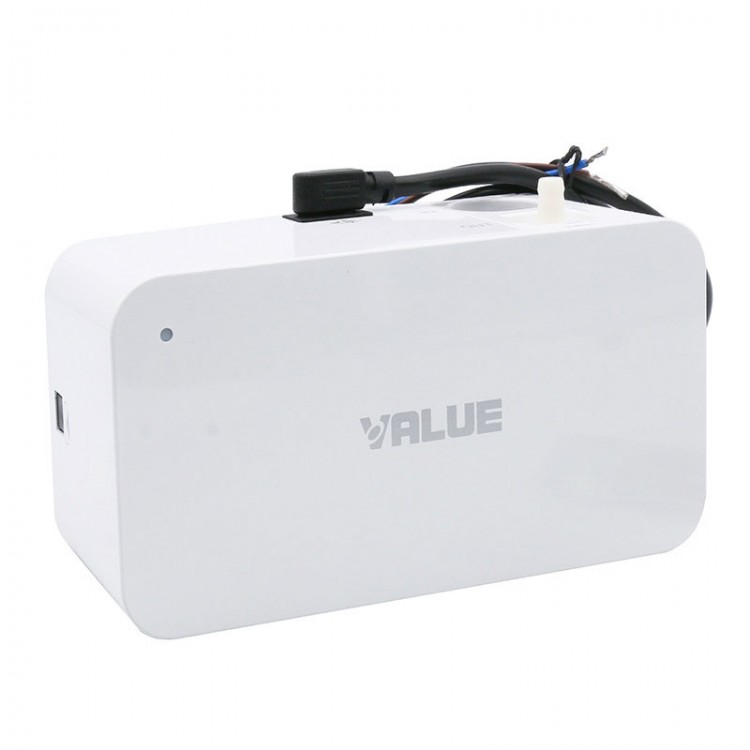

VALUE M1 100-240V 30000btu/h Air Conditioning Condensate Water Super Quiet Drainage Pump 200ML Water Storage

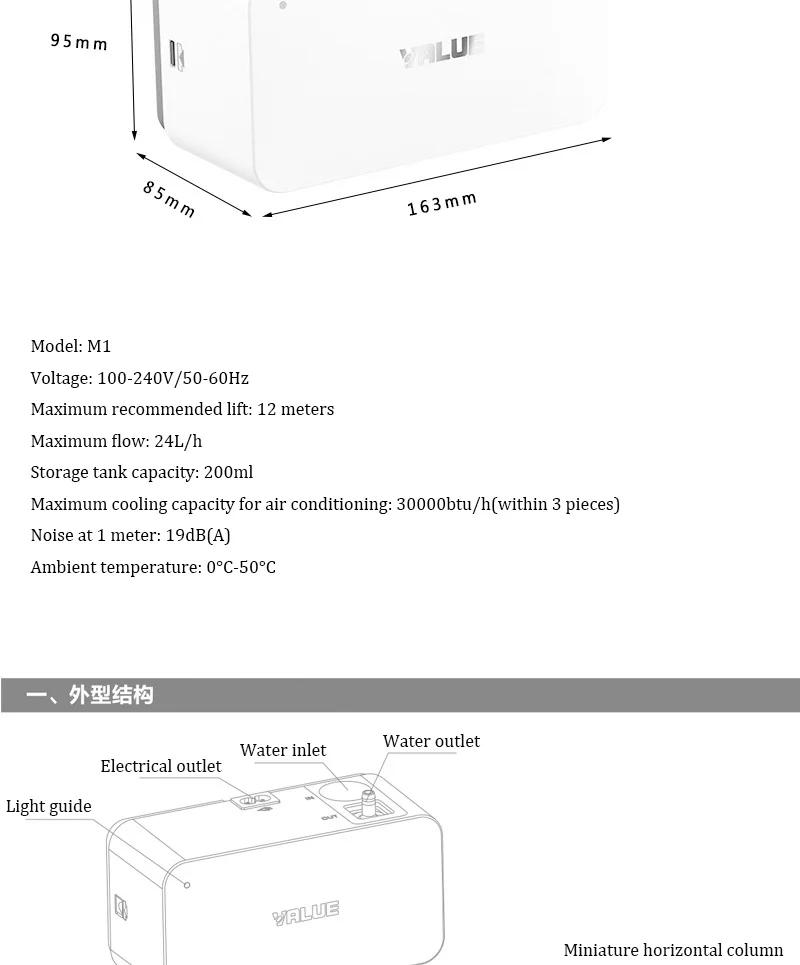

Specification:
- Model: M1
- Voltage: 100 - 240V/50 - 60Hz
- Maximum recommended lift: 12 meters
- Maximum flow: 24L/h

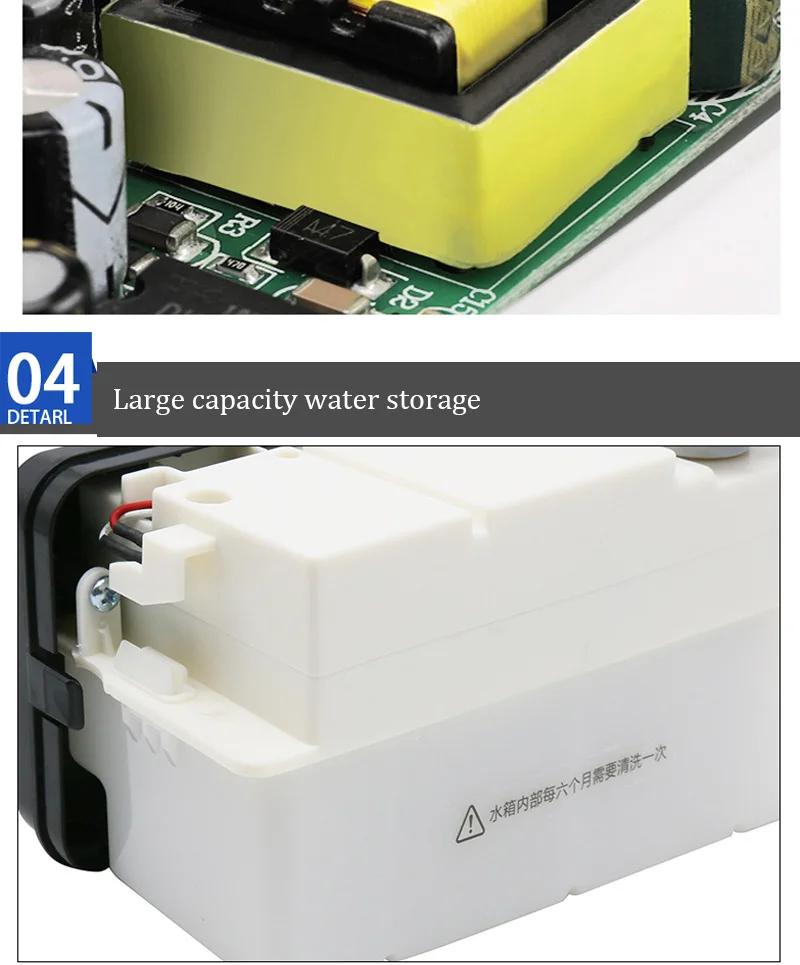

- Storage tank capacity: 200ml
- Maximum cooling capacity for air conditioning: 30000btu/h (within 3HP)

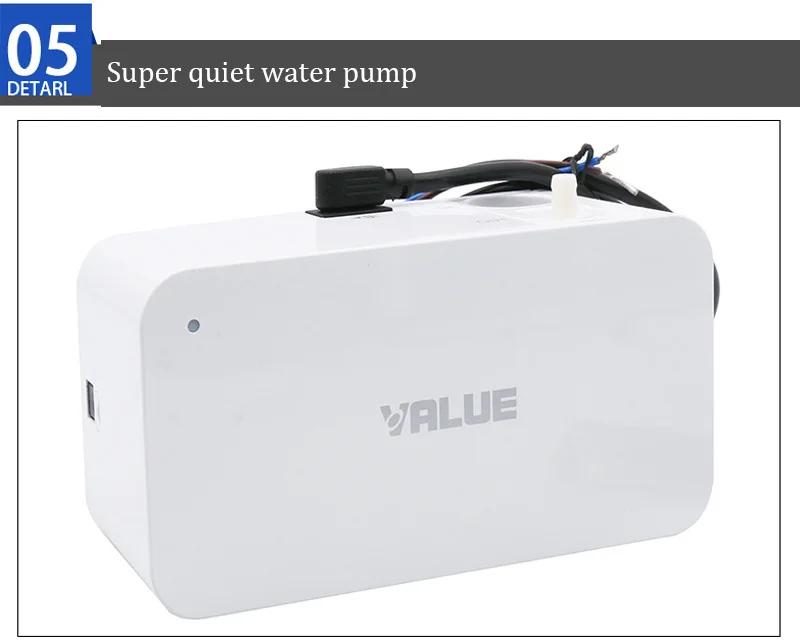

- Noise at 1 meter: 19dB(A)
- Using temperature: 0℃ to 50℃
Installation Steps:
1. Cut off the power supply.

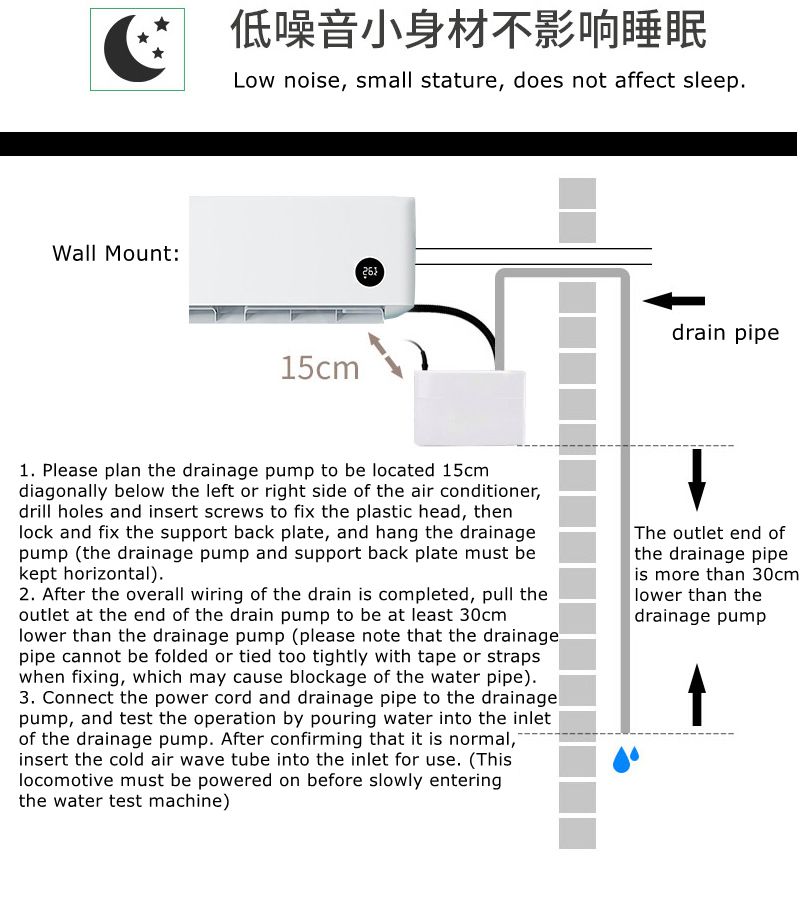

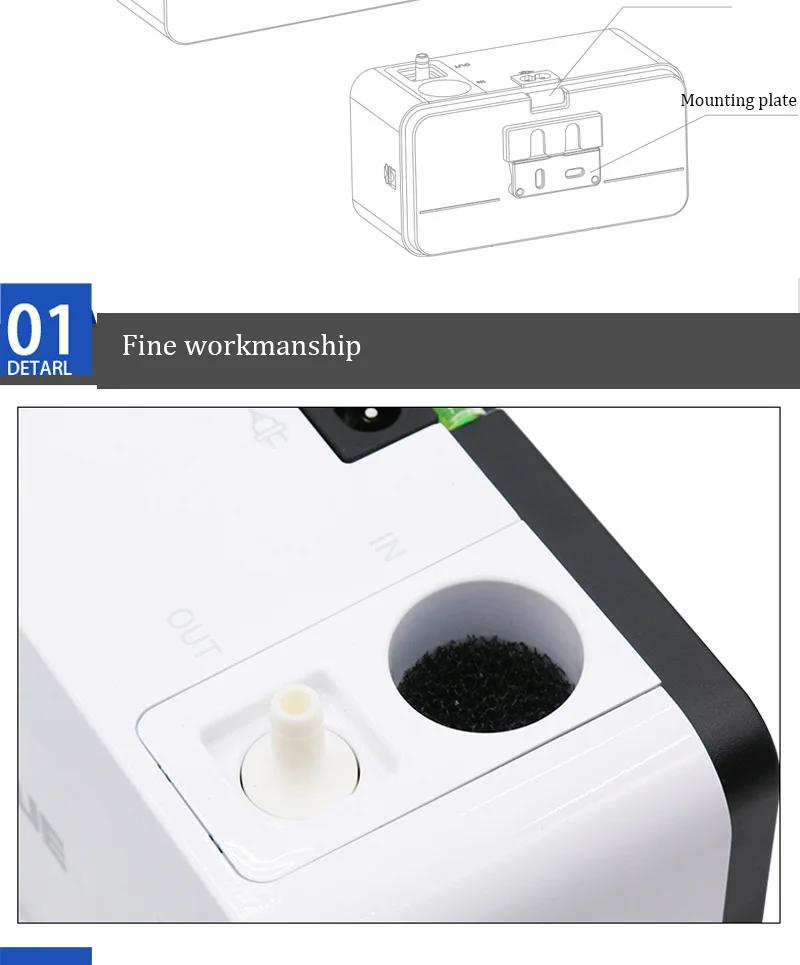

2. First, fix the installation hanging plate in the random accessory package at a suitable position on the wall. During the installation process, the installation hanging plate can be adjusted by a micro horizontal column to make its upper end surface horizontal.

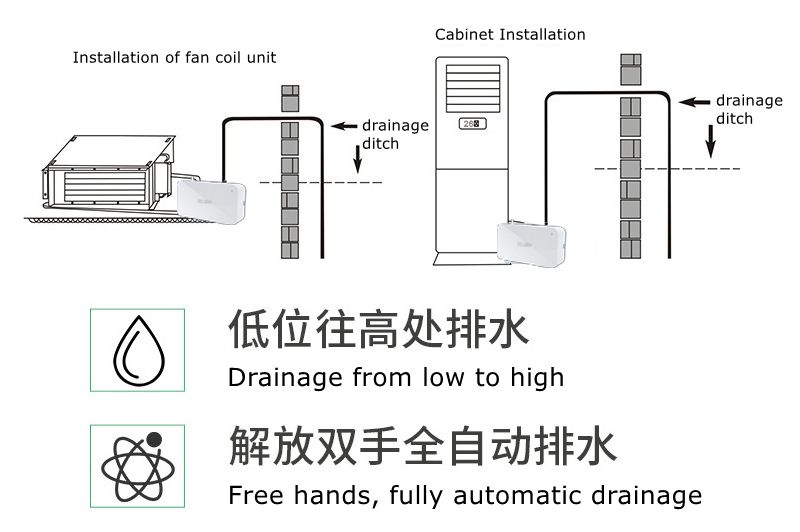

3. Insert the drainage pipe of the air conditioner into the inlet of the drainage pump. The outlet of the drainage pump can be connected with a Φ6mm x Φ9mm (inner diameter x outer diameter) water pipe, and fixed with the self-locking tie of the accessory package. Arrange the water pipe of the outlet, and then hang the drainage pump on the mounting plate on the wall.
4. Check that all water pipes and wires are connected correctly, then turn on the power and run the air conditioner and drainage pump.
5. Slowly pour water into the air conditioning drain pan using a container filled with water, and observe if the drainage pump is working properly. When the pump is draining normally, there will be a white working indicator light on the front housing, which will turn off after the water is pumped out.

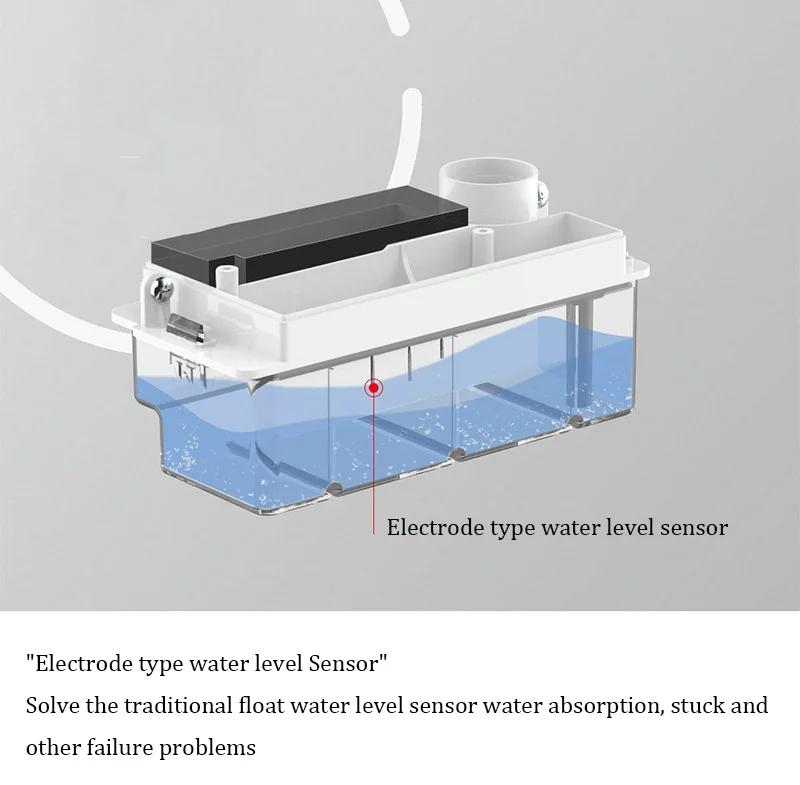

6. Built-in buzzer, once the warning water level is exceeded, the buzzer will sound an alarm reminder. Please turn off the air conditioner in a timely manner and ask professional personnel for maintenance.
7. After the above tests are completed, it indicates that the drainage pump is working normally and the installation is complete.
Package Included:
- 1 x Drainage Pump
