Vector Network Analyzer VHF/UHF/NFC/RFID RF Antenna Analyzer Signal Generator miniVNA Tiny Plus2 2019

Availability: In stock, usually dispatched in 1 business day

  • Price:$428.69
  • Price in reward points: 4287 Reward Points: 43
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $420.12 $411.54 $398.68 $381.53 Contact US
Quantity:

Vector Network Analyzer VHF/UHF/NFC/RFID RF Antenna Analyzer Signal Generator miniVNA Tiny Plus2 2019



Product Overview:

- The professional VNA-PC software is used for data analysis and processing. The signal generator function is integrated. The measurement range is 1MHz~3000MHz, and the S parameter measurement of S11 and S21 is supported.
- The miniVNA Tiny Plus2 has the software open-circuit, short circuit, load, and straight-through calibration functions (the corresponding calibration components need to be prepared or purchased by the customer).
- The software supports data export in multiple formats, including JPEG, Excel, ZPlots, S1P, S2P, and PDF.
- For Windows, Linux, and Mac

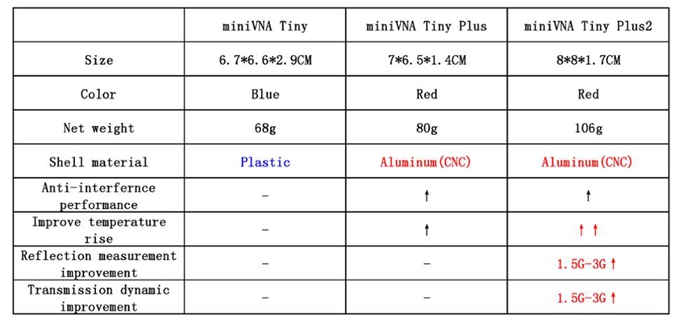

- The miniVNA Tiny Plus2: CNC aluminum shell (red upgrade).
- The upgraded version uses the CNC aluminum shell to enhance the high-frequency anti-interference capability, improve the heat dissipation of the equipment, improve the consistency and reproducibility of repeated measurement and different time measurement, and make the measurement more accurate and reliable.

Features:

- Frequency range: 1MHz~3000MHz
- Frequency step: 10Hz
- Port configuration: Dual ports
- S parameter: S11 and S21
- Dynamic range: 70dB@500MHz
- Z: 1~1000 ohms
- Output power: -6dB@500MHz
- Full phase measurement and integration with Smith chart
- With software open, short, load, and pass-through calibration functions, the test result is more accurate.
- Supports data export in multiple formats (JPEG, Excel, ZPlot, S2P, and PDF).
- Friendly user interface for Windows, Linux, and Mac
- The RF port is an SMA connector (SMA-K).
- USB power supply
- Super mini size, easy to carry (ultra-light and ultra-thin)

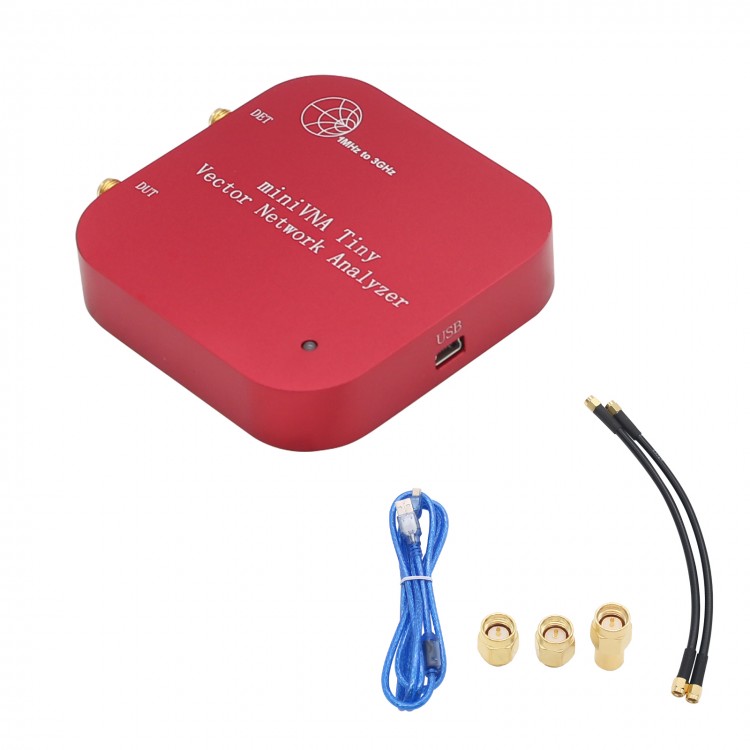

Package Included:
- 1 x Vector Network Analyzer
- 1 x Calibration Kit: Open/Short/Load (SMA Devices)
- 1 x USB Cable
- 1 x Tool Box
- 1 x SMA Male Plug to SMA Male Plug Straight Cable

Note: Please contact us for user manual after purchasing. Thank you!
