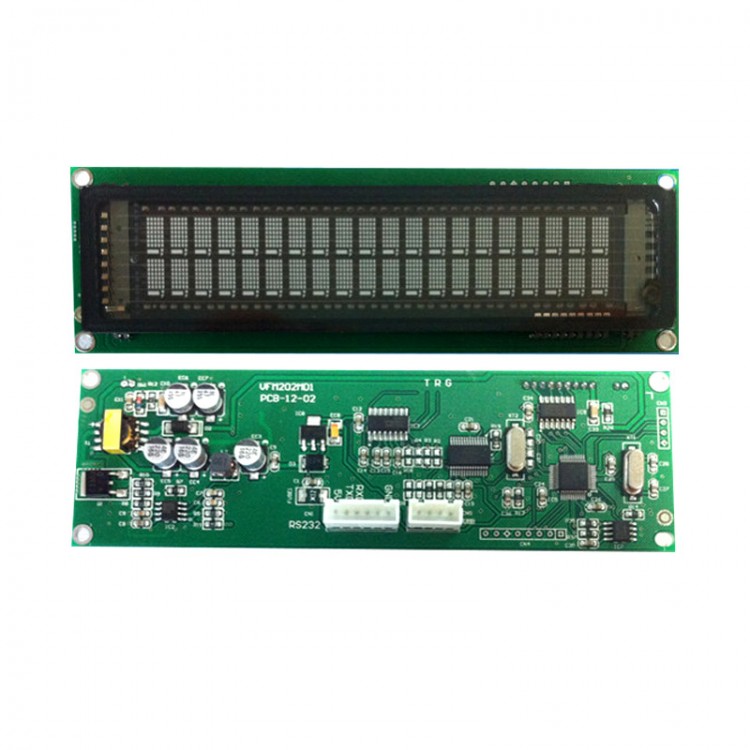

VFM202MD1 REV11 VFD Display Module Vacuum Fluorescent Display 20*2 For POS Customer Display
POS machine and instrument display screen, VFD display module, is also known as double-line English customer display module (29 languages).
VFD display module supports USB interface and RS232 interface.
Vacuum fluorescent display module in small size can be applied to embedded POS customer display.

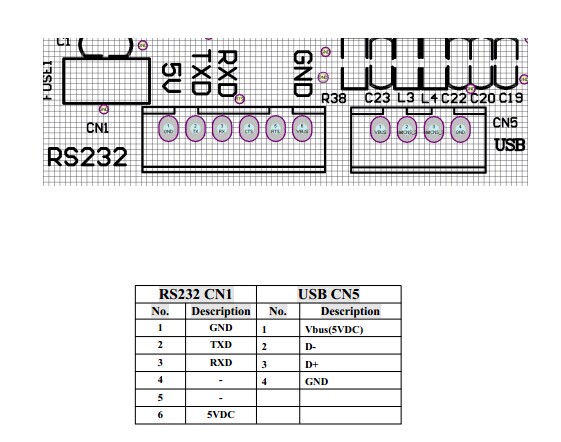

- Simple connection to the host system by RS232 or USB. The baud rate is 9600bps (default).
- Since a DC/DC converter is used, only +5VDC power source is required to operate the module.
- Characters are provided with a 5x7 dot matrix with comma and decimal point.
- Model: VFM202MD1 REV11
- Digit Format: 5*7 Dot Matrix with Comma and Decimal point, Annunciator (-)
- Outer Dimensions: 145 * 45 * 24 mm (W*H*T)
- Display Area: 106.3 * 19 mm (W*H)
- Character Size: 3.7 * 6.7 mm (W*H)
- Dot Size: 0.5 * 0.7 mm (W*H)
- Weight: 80 g
- 1 x VFD Module
