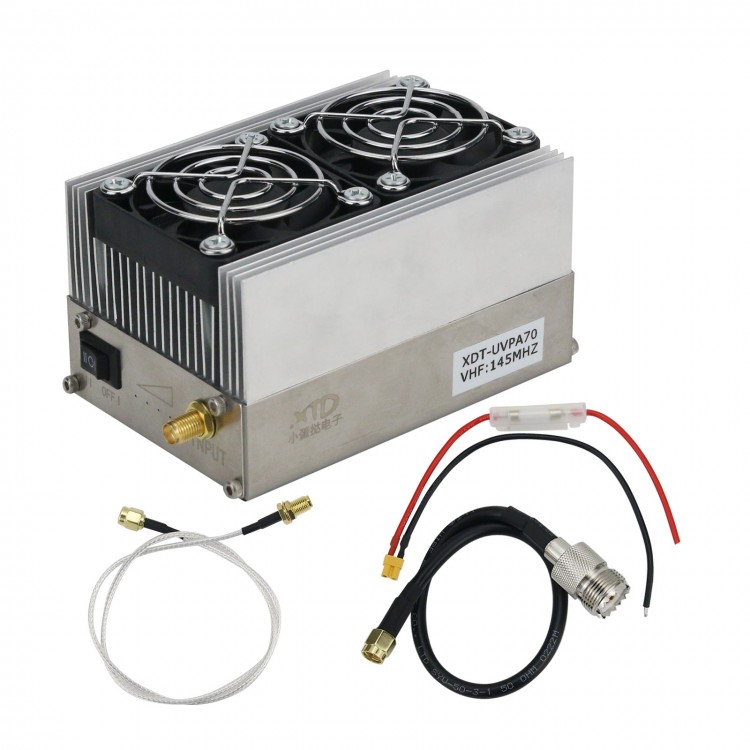

VHF80W Walkie Talkie Amplifier 136MHz-174MHz Relay Station Amp For Outdoor Car Marine XDT-UVPA70
Features:
- Handheld walkie-talkie power amplifier XDT-UVPA70
- Maximum output power 80W
- 13.8V power supply
-
Temperature control and automatic speed regulation fan: when the
temperature rises to 40℃, the fan starts to work, automatic stepless
adjustment
- Automatic transmission and receiving switching: When
users speaks, it automatically switches to transmitting state. When
users does not speak, it switches to receiving state
- 0.2W drive
- Compact and lightweight: it weighs 400g
- Excellent circuit design
- Sturdy shell: Well-designed, sturdy and beautiful. Using sheet metal design, 304 stainless steel
- Three connection methods, convenient for use on cars, indoors and relay station
- After using the amplifier, the communication distance is increased by 10 times to 50km
- Amplifier can be taken off your car for easy portability
Applicable Scenarios:
- For self-driving journey
- For engineering field command
- For radio enthusiasts
Specifications:
- Model: XDT-UVPA70
- Frequency Range: VHF 136MHz-174MHz
- Input Power: 1-7W
- Output Power: 40-80W
- Input voltage: 12-15V
- Input current: 15A
- Gain: 12DB-15DB
- Input & Output Connector: SMA-K
- Power Supply Connector: XT-30
- Size: 100*70*60 mm
- Net weight: 400g
Package Included:
- 1 x RF Power Amplifier
Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
