VKBSIM VKB GNX-SEM Side Extension Module Flight Simulation Joystick Expansion Module GNX SEM + MFH

VKBSIM VKB GNX-SEM Side Extension Module Flight Simulation Joystick Expansion Module GNX SEM + MFH

Friendly Reminder:
* When using this device, ensure there are no strong sources of electromagnetic radiation nearby, such as mobile phones, Wi-Fi routers, radios, or high-power electrical appliances. These may interfere with the joystick's magnetic resistance sensor, causing the axes to malfunction or jitter.

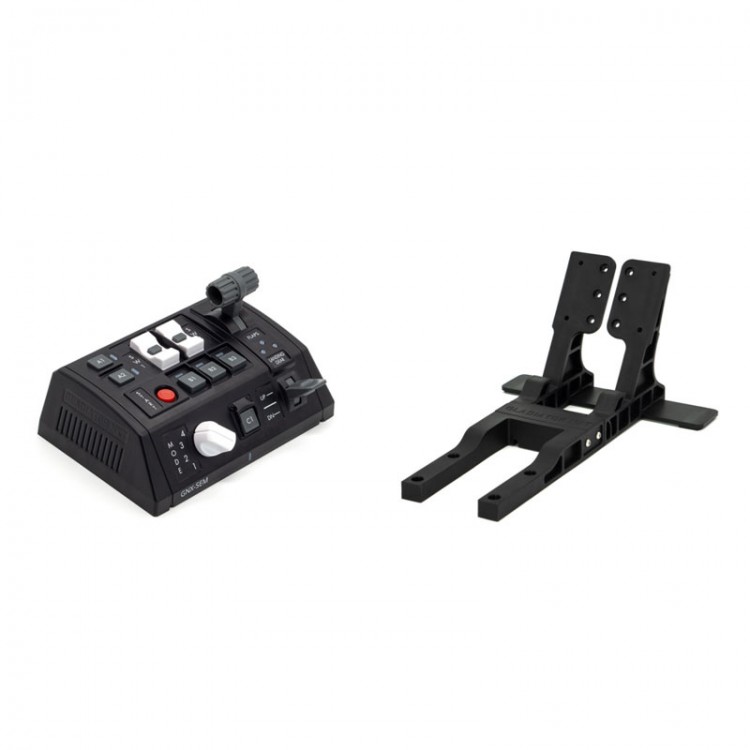

GNX-SEM (Side Extension Module):
Description:
GNX-SEM is a side extension module.

A USB connection is not included by default because GNX modules are specifically designed to be connected to Gladiator NXT/EVO joysticks, allowing them to function together as a single integrated device through their internal BUS interface.

If you want to use a GNX module on its own, directly connected to your PC, you'll need to separately purchase and install a GNX USB Controller (HID-Main) to replace the module's default GNX BUS Interface.

Tabletop Module:
A GNX tabletop module can be attached side-by-side to the following devices:
* Gladiator NXT/EVO joystick base (from either side)
* Gladiator NXT EVO Omni Throttle (from the opposite side of the OTA elbow)
* SEM modules (up to a total of 4 SEM modules)
* THQ modules (up to a total of 4 THQ modules)

Features:
* Made for Gladiator NXT modular flight control system
* The device can be configured to provide either a total of 24 logical buttons or 17 logical buttons and 2 analog axes, depending on your preference and setup.
* 1x Rotary Switch
* 2x Multi-Function Axes
* 2x K-Switches with a Central Push Button
* 7x Push Buttons
* 8x Programmable, Dual-Color LEDs

Profile Templates:
https://www.vkbcontrollers.com/pages/downloads

Video Guides:
* Building a SEM and Gladiator NXT/EVO Combo: https://www.youtube.com/watch?v=LBhCx1jQ6mE
* List of all SEM related video guides: https://www.youtube.com/@VKBSim/search

Compatible with:
* Gladiator NXT/EVO
* Gladiator NXT/EVO Omni Throttle
* UCM Stronghold
* GNX USB Controller (HID-Main)

MFH (Multifunctional Holder):
Features:
* Made for Gladiator NXT modular flight control system
* One MFH supports two vertical GNX extension modules side-by-side (e.g., one THQ-V in combination with one SEM-V), or a single FSM-GA module, or a single STECS STEM module.
* One MFH can be fitted to a GNX THQ or SEM desktop module already attached to a Gladiator NXT/EVO joystick base, or to the front of a STECS Throttle that ships with a pre-installed MFH Fixture (STECS Mini Plus and STECS Standard).
* The MFH can also be used as a standalone holder on a desk - without modules attached, it can support a smartphone, tablet, or keyboard.

Compatible with:
* GNX THQ/V
* GNX FSM-GA
* GNX SEM/V
* STECS Throttle (if equipped with STECS MFH Fixture)

Warranty:
* 2 Years

Requirements:
* Our products and configuration software are designed for use on Windows PC.

Packing List:
* 1x SEM Module
* 1x Plastic Coupler
* 1x Type-C Connector Guard
* 1x Set of Rubber Pads
* 1x Set of Plastic Spacers
* 1x Set of Interchangeable Heads
* 1x Set of Interchangeable Detents
* 1x Internal "Module-to-Module" Cable
* 1x Internal "Module-to-Joystick" Cable
* 1x Phillips Screwdriver
* 1x HEX Screwdriver
* 1x Set of Stickers with Protective Film
* 1x MFH

Packaging Details:
* Weight: 1.9kg
