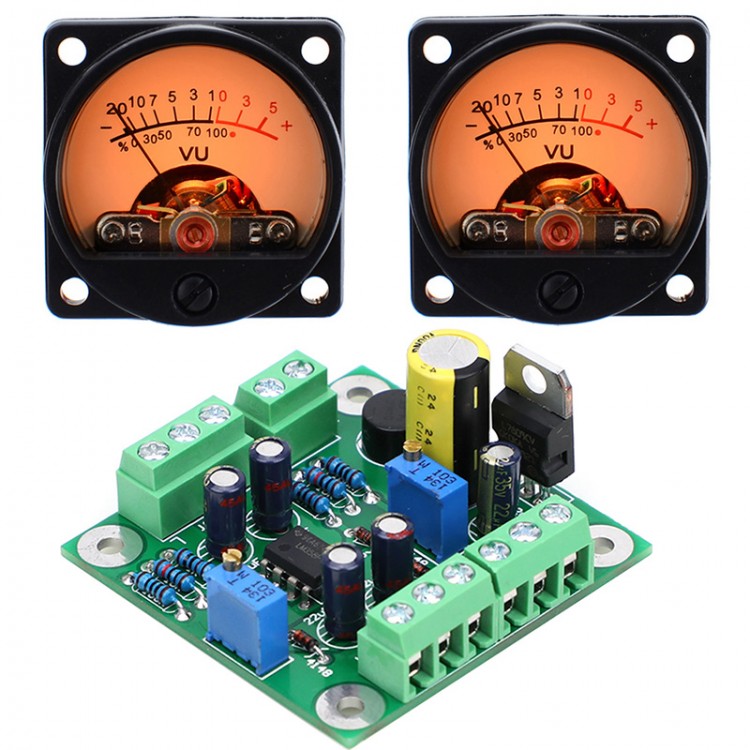

VU Level Audio Meter Driver Board + 2pcs VU Meter Backlight DB Sound Pressure Meter 9V-20V AC input

Availability: In stock, usually dispatched in 1 business day

  • Price:$20.51
  • Price in reward points: 205 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $20.10 $19.69 $19.07 $18.25 Contact US
Quantity:
Buy it now Add cart

You might like

2pcs VU Meter + Driver Board Set Power Amplifier Audio Level Meter LED Backlight White 45mm Round

2pcs VU Meter + Driver Board Set Power Amplifier Audio Level Meter LED Backlight White 45mm Round

$29.74

(0)
Audio Lever Power VU VU Backlight Meter DC 500μA Driver Board Kit

Audio Lever Power VU VU Backlight Meter DC 500μA Driver Board Kit

$20.71

(0)
2pcs VU Meter + Driver Board Set Power Amplifier Audio Level Meter LED Backlight Yellow 45mm Round

2pcs VU Meter + Driver Board Set Power Amplifier Audio Level Meter LED Backlight Yellow 45mm Round

$31.09

(0)
VU3 2-In-2-Out Aluminum Audio Power Amplifier 100Wx2 Speaker Switcher with Dual VU Meter Support Backlight Adjustment

VU3 2-In-2-Out Aluminum Audio Power Amplifier 100Wx2 Speaker Switcher with Dual VU Meter Support Backlight Adjustment

$103.48

(0)
Power Amplifier VU Meter DB Level Meter DAC Audio Power Sound Pressure Meter with Backlight P-134

Power Amplifier VU Meter DB Level Meter DAC Audio Power Sound Pressure Meter with Backlight P-134

$30.61

(0)
VU2-L Bulb Version MIC+LINE Dual VU Meter Audio Splitter Box 4-Way Switcher Sound Level Indicator

VU2-L Bulb Version MIC+LINE Dual VU Meter Audio Splitter Box 4-Way Switcher Sound Level Indicator

$169.00

(0)
VU Meter Driver Board Replaces TA7318P For Power Amplifier Preamp Tube Amp DB Level Meter Driver IC

VU Meter Driver Board Replaces TA7318P For Power Amplifier Preamp Tube Amp DB Level Meter Driver IC

$16.46

(0)
TN-90 VU Meter Audio Level Display Tube Amplifier DB Sound Pressure Meter w/ LED Backlight

TN-90 VU Meter Audio Level Display Tube Amplifier DB Sound Pressure Meter w/ LED Backlight

$18.85

(0)

VU Level Audio Meter Driver Board + 2pcs VU Meter Backlight DB Sound Pressure Meter 9V-20V AC input


Specification:
- UV level meter specifications：DC500μA
- VU meter head with backlight
- Meter DC internal resistance: 630 ohms
- Yellow dial, yellow backlight, standard VU indicator
- The backlight is an incandescent light bulb. Working voltage: 6 ~ 12V AC or DC. The main picture is the DC 9V lighting effect. (AC: 10.6V, current 48mA).

Meter drive board specifications:
- Supply voltage AC 9V 500mA （9V-20V）
- Size: 51mmX51mmX25mm


VU meter head size and opening distance chart




Wiring diagram



Commissioning instructions

- Select power supply AC input 9v-20v (500mA) - Adjusting the potentiometer can change the sensitivity, the left and right channels can be adjusted separately, and adjusted correctly according to the power amplifier - The input can be connected to the post-amp, pre-amp, headphone amplifier, etc. of the amplifier. The output gain control can be changed by changing the resistance.



VU meter driver board size:



Pakage content:

- 2x VU level meter header - 1x VU meter driver board AC 9V
