VV8 Dual Opamp Operational Amplifier to Upgrade V5i-D OP06AT 02 SS3602 HA8801 8802 HDAM9988SQ
Description:
VV8 dual op amp is a newly developed flagship J-FET input type high-quality audiophile op amp. It can accurately restore the rich details, dynamic changes and transparent natural musicality of sound scene, and well present the softness, flatness and listening resistance of the three-frequency connection, making the sound more balanced and durable.
In the actual evaluation, the VV8 sound quality is very transparent and clean, and the detail separation is excellent. The rare sweetness and pleasantness in its sound makes people feel very comfortable, the three-frequency performance is in place, the details are dynamically restored to reality, the sound scene is large but the tension is moderate, people are surrounded by music and can enjoy the emotions brought by music.
On the whole, the performance of VV8 can be summarized as 'clean, transparent, sweet, balanced, atmospheric, natural and durable'.
Specifications:
- Amplifier type: dedicated to hifi audio
- Number of amplifier channels: Dual op amp
- Rated voltage: ±3.5V to ±18V
- Conversion rate: 16V/μs
- Bandwidth: 6MHz
- Low noise: 2.6nV/√Hz at 1kHz
- Low distortion: 0.000038% at 1kHz
- Current - input bias: 45pA
- Voltage - input offset: 4.5mV
- Current - output/channel: 50mA
- Working temperature: -40℃ to 85℃

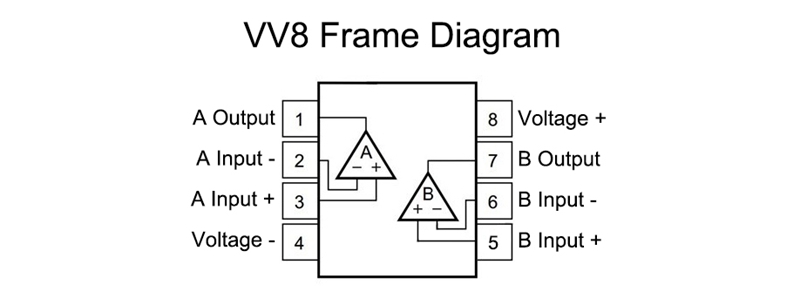

- Package: Dual in-line gold seal module (suitable for replaceable standard in-line DIP8 package)
Package Included:
- 1 x Op Amp
