Walkera FPV iLook Camera with Boscam RX LCD5802 Monitor & Carbon Fiber Holder

Availability: In stock, usually dispatched in 1 business day

  • Price:$229.90
  • Price in reward points: 2299 Reward Points: 23
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $225.30 $220.70 $213.81 $204.61 Contact US
Quantity:

Walkera FPV iLook Camera with Boscam RX LCD5802 Monitor & Carbon Fiber Holder










Description:

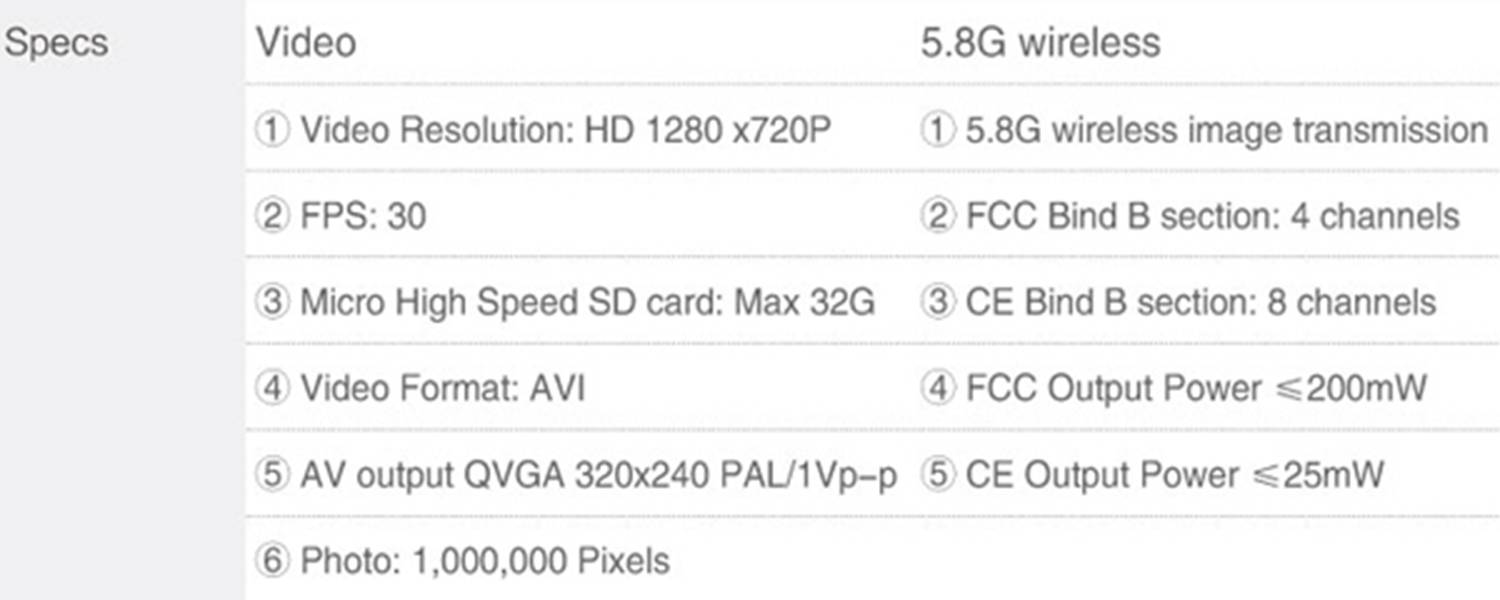

Walkera FPV iLook Camera
Brand Name: Walkera
Item Name: iLook Camera
Material: Metal
Resolution:720*1280P(HD)
FPS:30
Micro High Speed SD Card: Max 32G
Video Format: AVI
AV Output: QVGA 320 x 240 PAL/1Vp-p
Photo: 1,000,000 Pixels
Image Range: 500m-1km
Control Range: 1km-2km
FCC Bind B Section: 4 Channels
FCC Output Power: ≤ 200mW
CE Bind B Section: 8 Channels
CE Output Power: ≤25mW

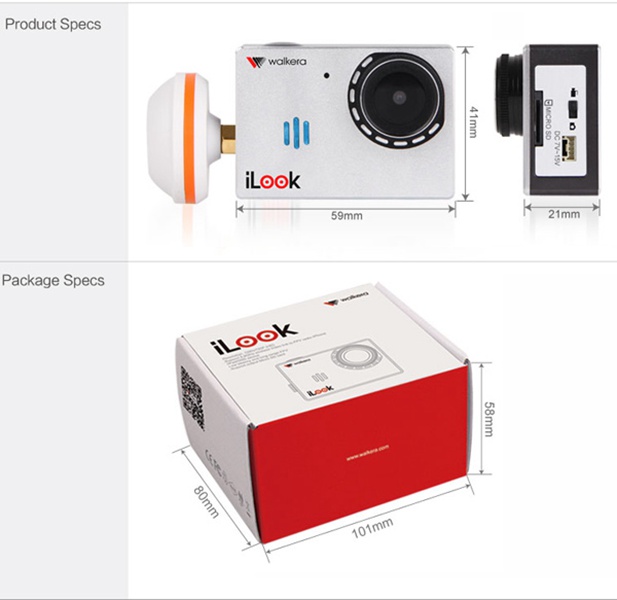

Dimension: 59mm x 41mm x 21mm

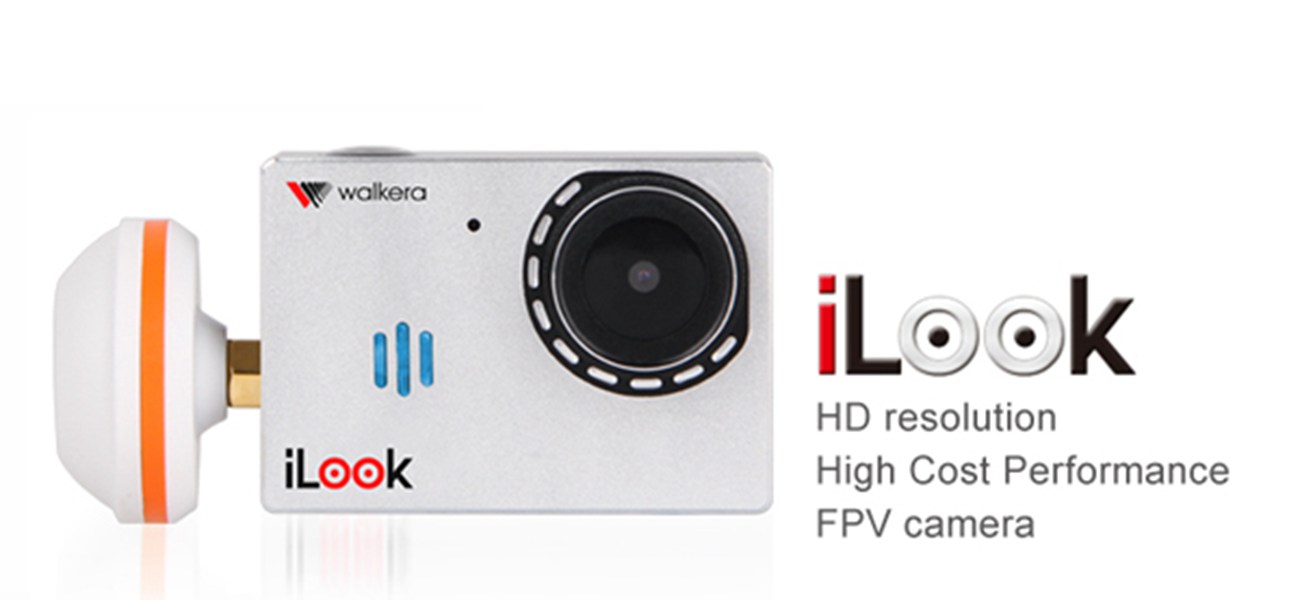

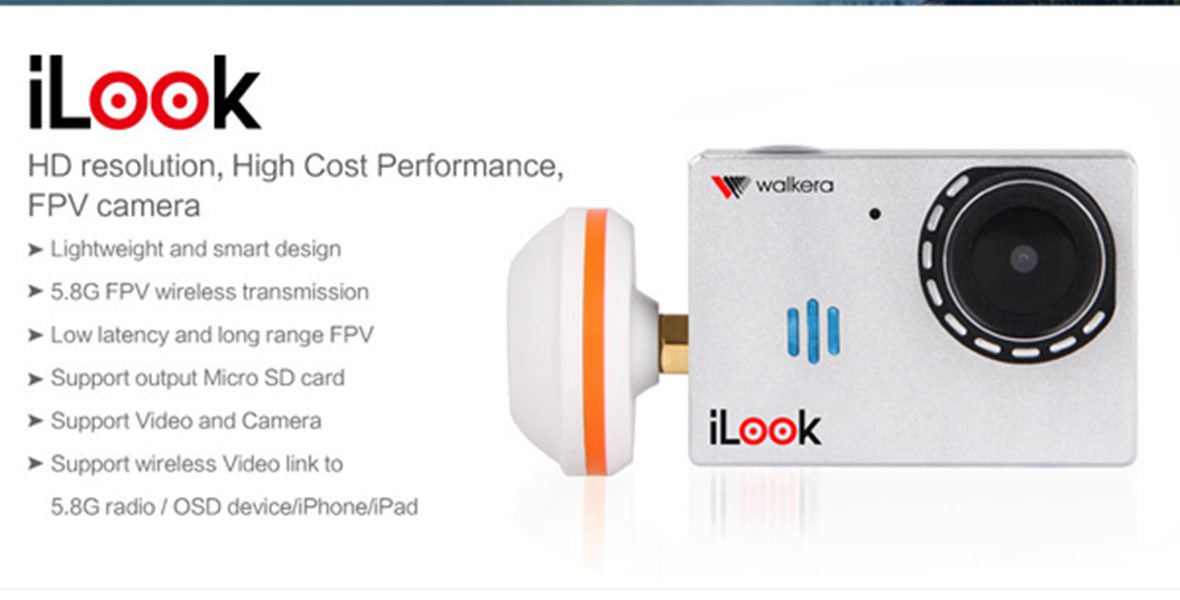

HD resolution. High cost performance, FPV camera.
Lightweight and smart design.
5.8G FPV wireless transmission.
Low latency and long range FPV.
Support output Micro SD card.
Support Video and Camera.

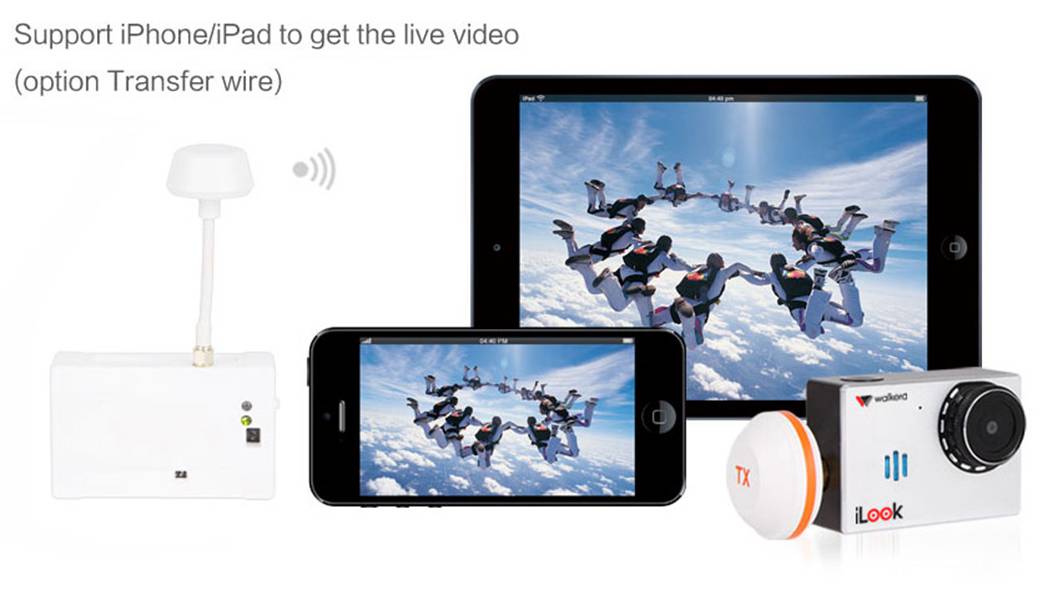

Support wireless Video link to 5.8G radio/OSD device/iPhone/iPad.
Support G-2D brushless gimble comvenient to use,plug and play.

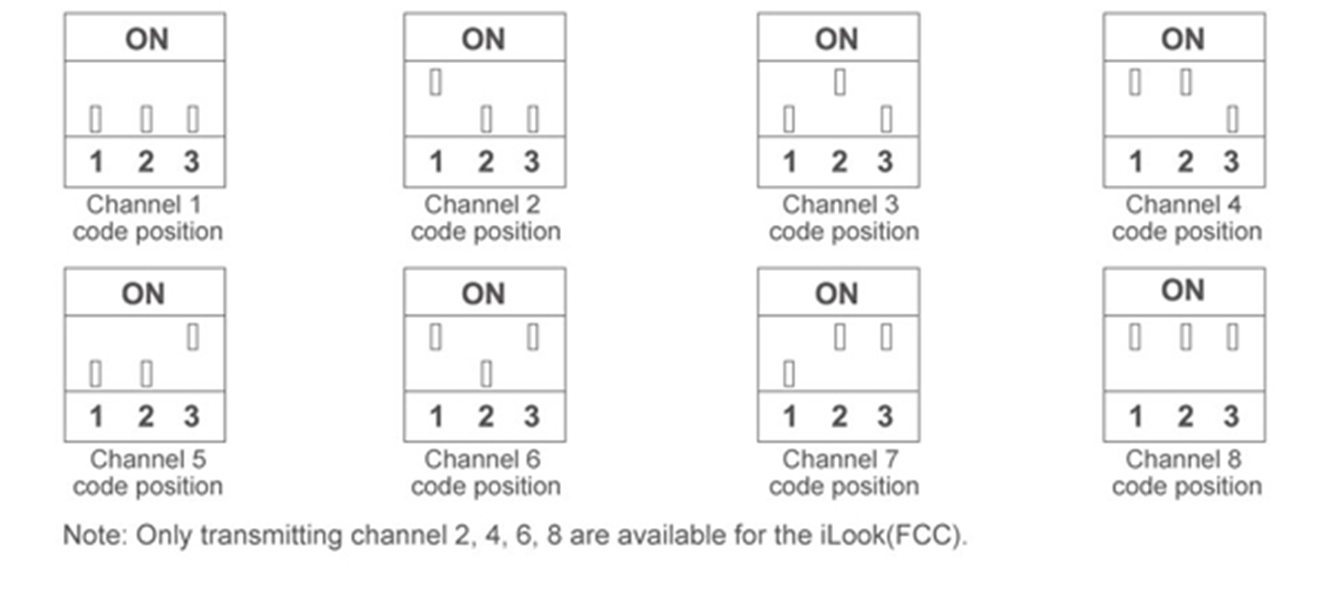

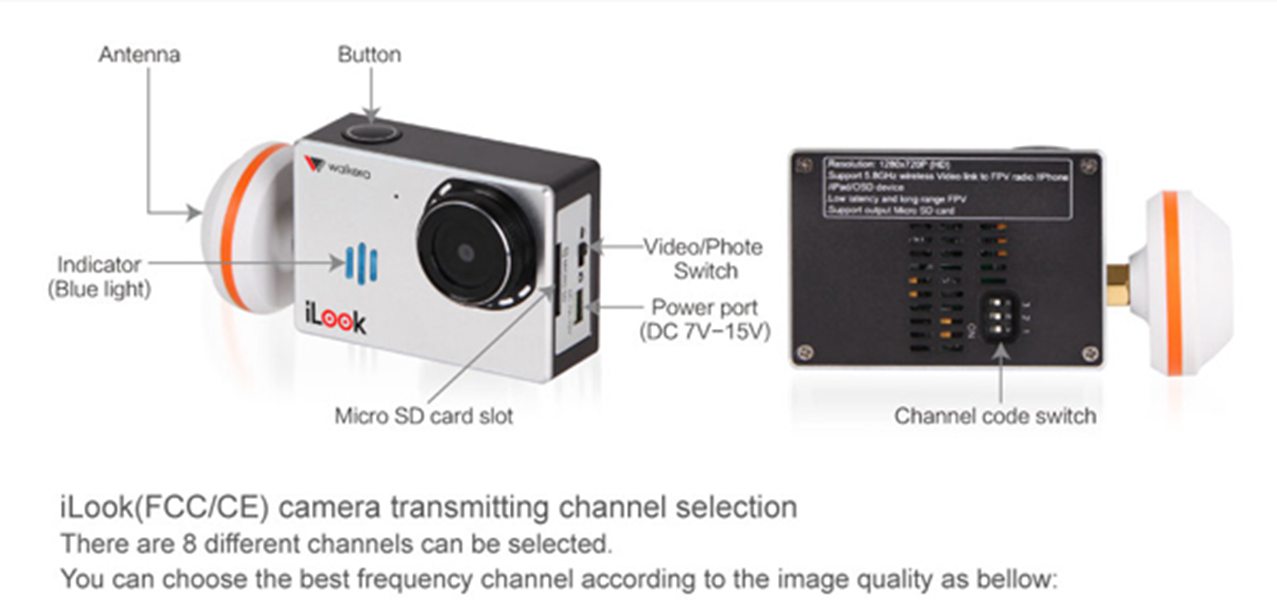

Note: When iLook camera transmission channel corresponds to transmitter video receiving channel, the transmitter can receive the video display, other channel appear blue sceen.

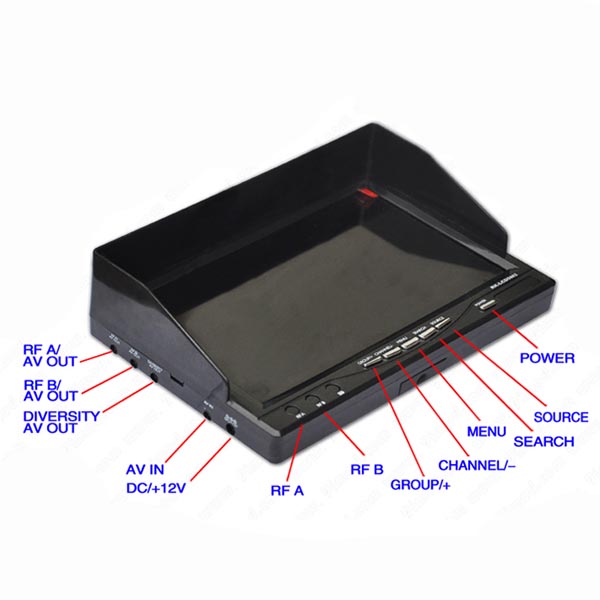

Boscam RX LCD5802 Monitor
Built-in 5.8Ghz Dual diversity receiver automatically for best reception
Built-in 2CH 5.8Ghz AV output and 1CH AV input
Built-in high performance Li-POLYMER Battery: 2450mAH/7.4V
Work status OSD display : RSSI indication ; Battery indicator;Channel indication
A key to automatic signal search
Support Chinese and English menu
Screen size: 7”
Screen type: TFT LCD Screen/long life, LED backlight
Resolution: 800*480
Brightness: 450cd/m2
View Angle: 140/120degree (Horizontal/Vertical)
Size: 180mm x 120mm x 50mm(Note:Sunshield height:28mm)
Working Voltage: DC 7~16V
Power Consumption: 650 mA @12V
Battery charging current : 850mA @12V ( max )
Working temperature: -10℃~+ 65 ℃
Connectors: SMA female(outer hole)
Antennas Connectors: SMA male (inner needle)
Built-in Dual Receiver Automatically for best reception Automatic Antenna Switching.
Dual buffered AV outputs.
Can receive 2 different channels at the same time.
Not affect by 2.4GHz R/C Radios.
AV Receiver with Diversity inputs.
Small, light weight, durable.

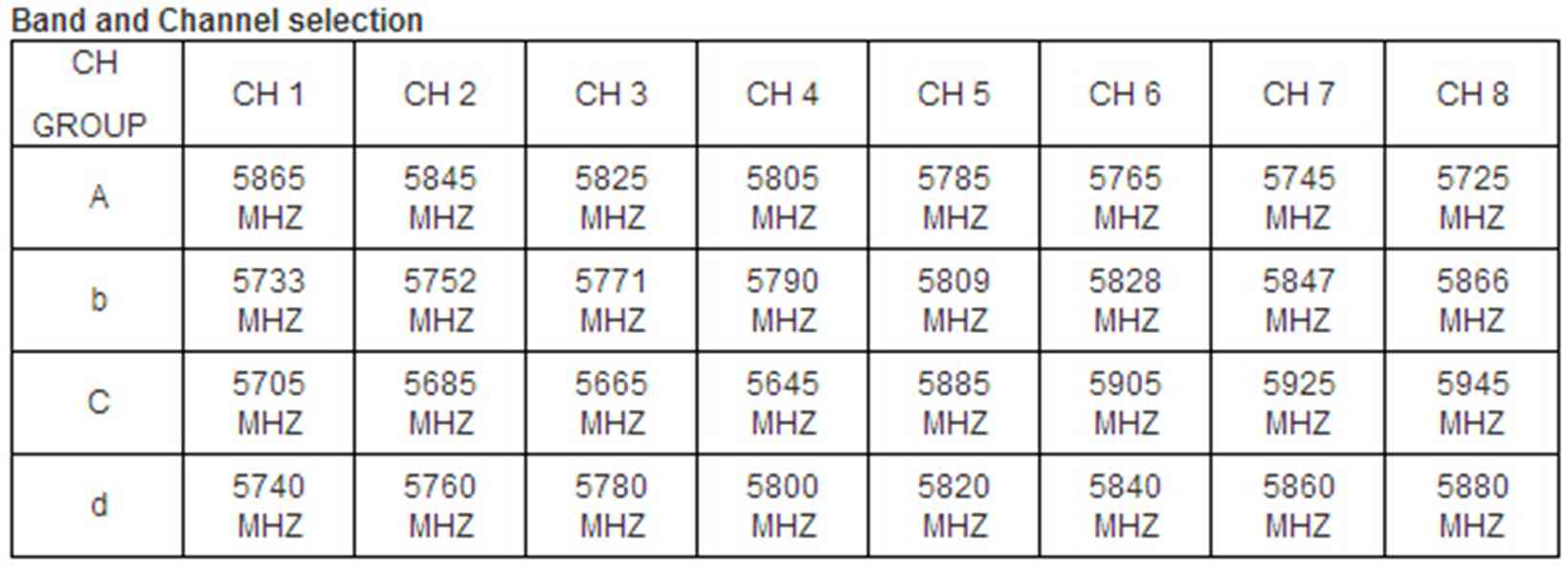

4 Bands and total 32 Channels.
Built-in battery, easy to carry and outdoor use.
A key to automatic signal search,Simple operation.
Work status OSD display:Always be aware of the device working condition.
FPV Monitor Carbon Fiber Holder
Suitable for the transmitter with metal carry, and display mast have fixed nut.
Material: 2.5mm Thick Carbon fiber.
High-quality Aluminum Locknut.
Light weight, High strength, Firmly & foldable.
2.5mm Thick Firmly Carbon Fiber Foldable Bracket for FPV Display better Suit for Transmitter Flysky Futaba FF9,T8FG.

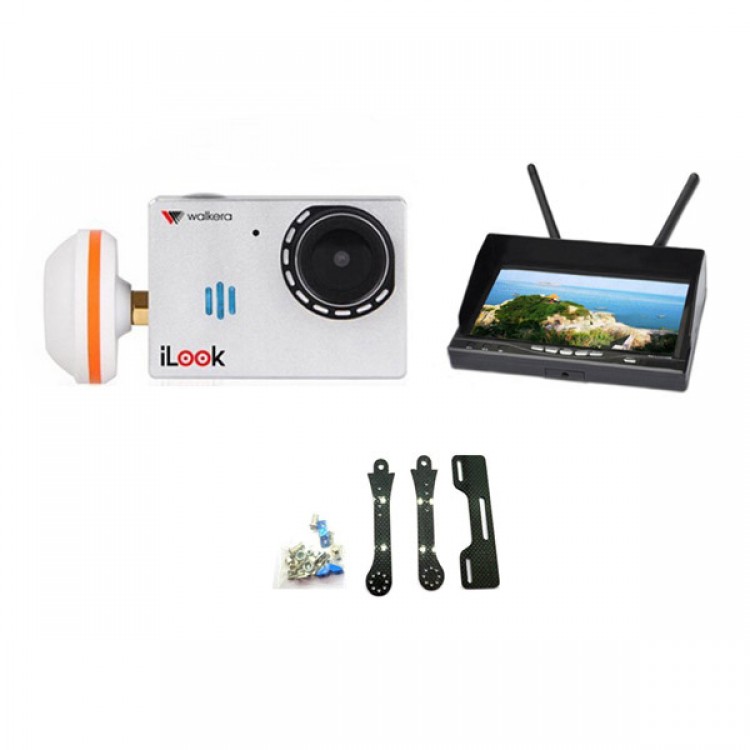

Package Included:
- 1 x Walkera iLook Camera
- 1 x LCD5802 Monitor with built in Rechargable Battery
- 2 x 5.8G Antenna
- 2 x AV Cable
- 1 x Charging Cable
- 1 x Monitor mounting plate
- 2 x support plate
- 1 x Screw pack
