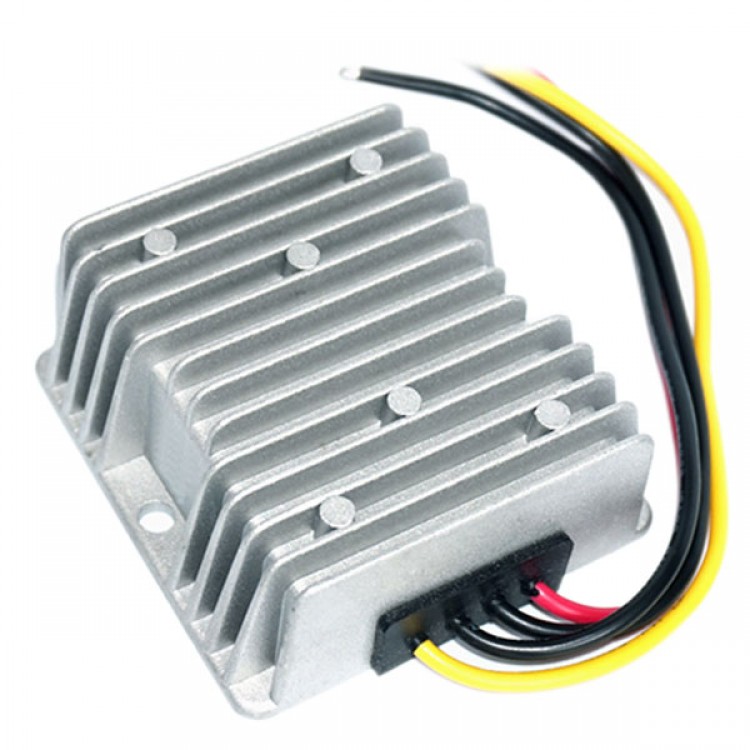

Waterproof DC/DC Converter 24V Step down to 12V 120W 10A Power Regulator
- Condition: One piece new high quality DC/DC Converter Regulator 24V Step-down to 12V
- Info: DC/DC 24V Step-down to 12V 10A 120W
- Size(mm): 74 x 72 x 31
- Pitch of holes:65mm
- wire length:165mm
- weight: 0.26Kg/PCS
- epoxy potting, seismic, water, moisture, dust, long term stable and reliable quality.
- thin, small size, high efficiency, easy installation.Aluminum alloy Shell waterproof ，quality is stable and reliable.
Features and parameter :
1. synchronous rectification, conversion rate is 90% with very low heat.
2. auto protect over voltage, over current, over temperature, short circuit, ,can work in normal condition when restored.
3. input voltage: DC 24V (15-37V)
4. output parameter : DC 12V
5. Output power: 10A 120W
6. output ripple: 50mV (MAX) 20M bandwidth
7. working temperature: (-40 ℃`80℃) when it is more than 40℃,please make lower power, or enhance heat dissipation
8. full load temperature rise: 50℃
9. Load regulation: ± 1%
10. voltage regulation rate: ± 2%
11. SIZE : 74*72*31MM; Pitch of holes:65mm ;Diameter：6mm; wire length:165
12. minimum pressure: 2V
13. Aluminum Shell
1. Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2. please take with an average load, do not merge,if there are multiple output cables in the output port.
3. you need to pay attention to make the power module cool,if output is up to the maximum current value.
4. in strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
