WB-SG1-6G 9K-6G Wideband Signal Generator RF Signal Source Sweep Signal Generator With 1.7" Screen

Availability: In stock, usually dispatched in 1 business day

  • Price:$178.46
  • Price in reward points: 1785 Reward Points: 18
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $174.89 $171.32 $165.97 $158.83 Contact US
Quantity:

WB-SG1-6G 9K-6G Wideband Signal Generator RF Signal Source Sweep Signal Generator With 1.7" Screen

Description:

It is a newly developed wide band signal source, with frequency range of 9K-6G. Channel 2 with on-off modulation, and modulation frequency can be set through ch1. Ch1 outputs square wave 3.3Vpp.

Features:
- Frequency range 9K-6G
- As a sweep signal generator
- CH2 With on/off modulation function
- Internal OCXO ensures more accurate frequency
- USB port to be connected to PC
- Small size and low power consumption
- With a 1.7" 128*64 screen

Specifications:

- Model: WB-SG1-6G
- CH1 frequency range: 1Hz-250MHz
- CH1 step: 1Hz-19.999999MHz/1Hz and 20MHz-250MHz/10Hz
- CH1 output amplitude: 3.3Vpp
- CH1 interface type: BNC
- CH2 frequency range: 1kHz-6GHz
- CH2 step: 0.5KHz
- CH2 output impedance: 50 ohms
- CH2 modulation: on-off modulation
- CH2 modulation frequency: 1Hz-2MHz
- CH2 output power: -40dBm to +13dBm
- CH2 interface type: SMA
- Internal reference frequency: 10MHz
- Internal reference type: OCXO
- Internal frequency standard aging: 0.5Hz/year
- 10M reference output power: 5dBm
- External reference input power range: 0dBm to +20dBm
- Frequency accuracy: benchmark 10M±0.05Hz, other frequencies are normalized to 10M
- Operating mode: CH1 dot frequency mode; CH2 dot frequency mode; CH1 sweep frequency mode; CH2 sweep frequency mode

Other Parameters:

- Power supply: 11.7-12.5V. Startup: <0.5A, stable: <0.25A
- Dimensions: 106 x 55 x 143mm/4.2 x 2.2 x 5.6" (LxHxD)
- With a DC12V power adapter

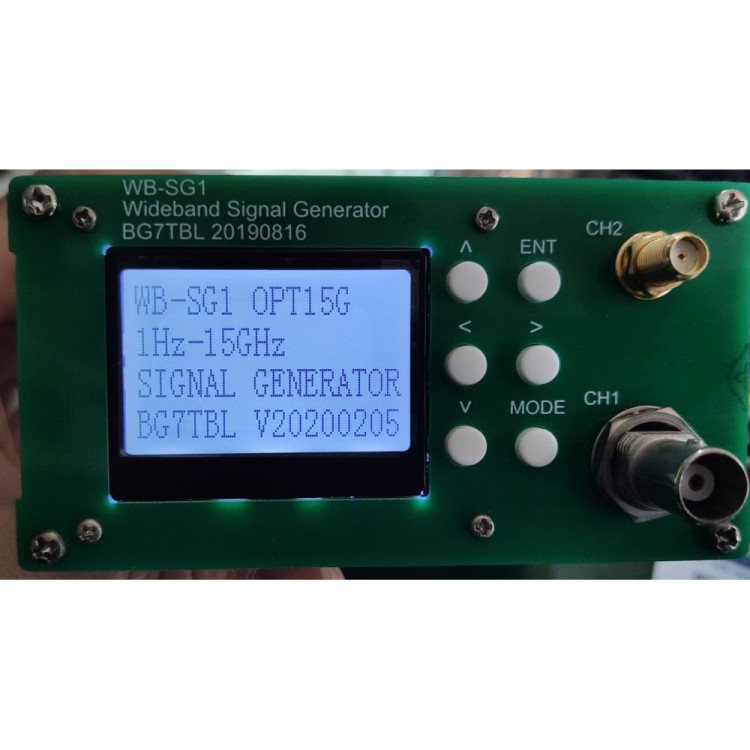

Functions of Front Panel:

Mode: Operation mode conversion
ENT: input data
< > ˄ ˅: Left, right, up and down keys
CH1: Channel 1 output
CH2: Channel 2 output

Functions of Rear Panel:
10M REF INPUT: external 10M reference input
10M REF OUTPU: 10M reference output
USB: USB communication port
STD ADJ: internal OCXO frequency fine tuning
With a switch
With a DC socket

Package Included:
- 1 x Set of Signal Generator

Note:
- Batteries are not included in the package. If they are needed, please contact us to pay extra cost.


Optional Parts:
1. External 12V 2.6AH 18650*3 batteries, with USB 5V/2A output.
2. Internal 2pcs 2.6AH 18650 batteries.
