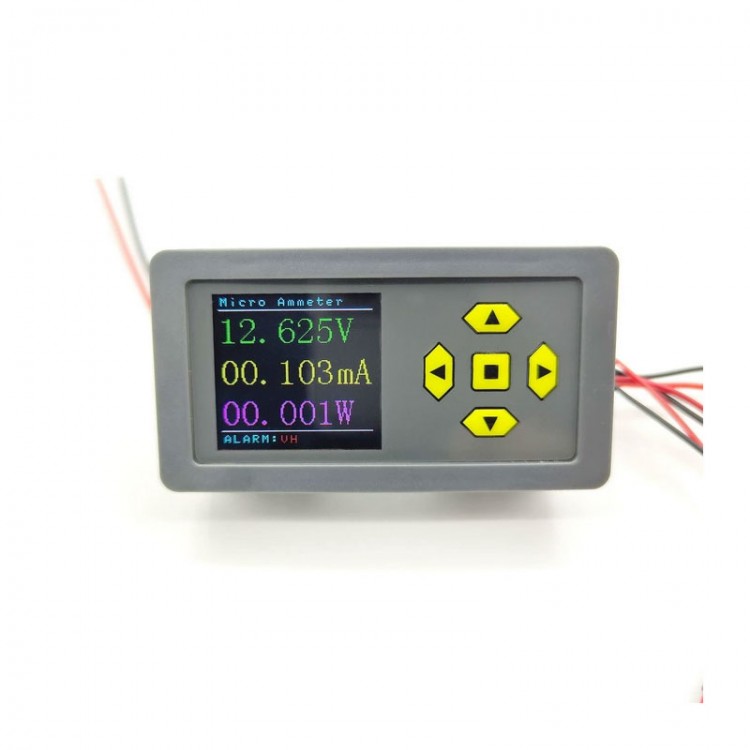

WDCU10010 uA-10A100V DC Voltage Current Display Voltage Current Meter Color Screen w/ High Precision

Availability: In stock, usually dispatched in 1 business day

  • Price:$20.03
  • Price in reward points: 200 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $19.63 $19.23 $18.63 $17.83 Contact US
Quantity:
WDCU10010 uA-10A100V DC Voltage Current Display Voltage Current Meter Color Screen w/ High Precision

Attention:

- Before shipment, all products have passed tests.
- After receiving the products, please see the wiring method before wiring. Due to wrong connection by users, wrong operation or DIY changes, products are not guaranteed!
- There is no rear cover, be sure to pay attention to safety operation. The store is not responsible for the consequences caused by not operating according to the specifications!

Specifications:

- Model number: WDCU10010
- Can measure voltage, current and power. With alarm output (can be connected to indicator light, buzzer and relay output)
- Power supply: DC 7-24V (power supply cannot be lower than 7V, otherwise the measured value will be inaccurate)
- Measuring voltage range: DC 0.001-100V
- Measuring current range: 1uA-10A (minimum resolution 1uA. Below 3mA, the range will switch automatically. 1uA is displayed as 0.001mA. Large current range is recommended to work about 70%. Do not use short circuit or limit overload)
- Accuracy: current 0.5%±3 digits; voltage 0.5%±3 digits
- Zone alarm: can set the alarm in the interval and outside the interval
- Alarm setting: low voltage, high voltage, low current, high current alarm, shielding voltage and current alarm range can be set
- Product size: 79 x 43 x 33mm/3.1 x 1.7 x 1.3"
- Hole spacing: 76 x 39mm/3 x 1.5"
- Weight: 42g/0.1lb

Package Included:
- 1 x Voltage current display
- 1 x Power cable with XH2.54 connector
- 1 x Alarm cable with PH2.0 connector
