Description:

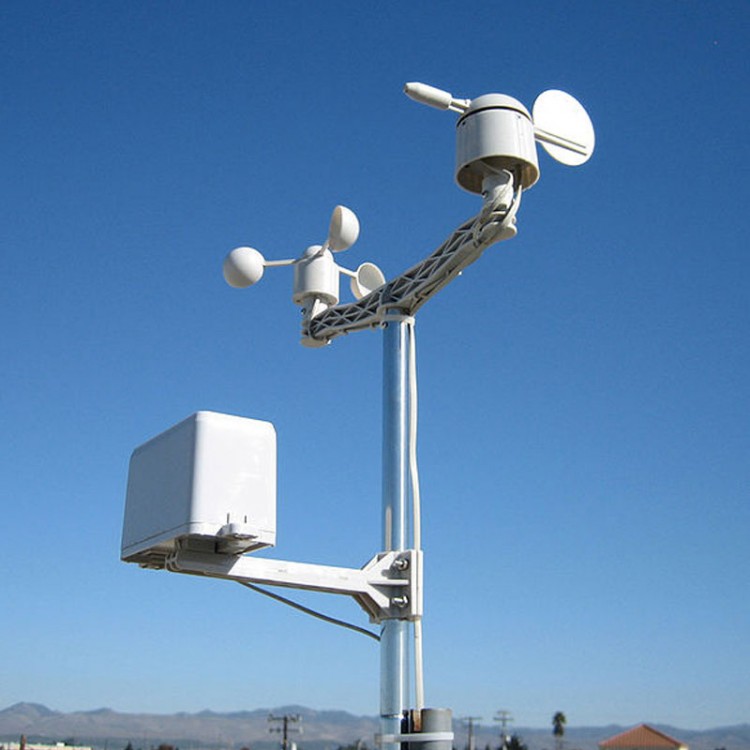

Special offer Sensors for Internet of things Meteorological station suite.
The 9 set contains:
1. Wind speedSensor, white box size 15X16.5X8CM
2. Wind directionsensorWhite box size 18.5X14X6.5CM
3.rain sensorWhite box size 9.5X15.5X6.5CM
4, stainless steel vertical pole 1, single length 30CM
5, bar length 29CM
6. Rainfall support
7, bandage
8. Stainless steel hoop
9. Loosening screws
10. Humidity temperature air pressure module
About the Secondary development:
- Wind speed is passive switch quantity, wind speed sensor, turn 1 turns, 2 pulse =2HZ.
- Formula for wind speed: m/s=wind speed Hz * 0.34
- Rainfall is passive switch, rain bucket reverses once =0.33mm
-
Wind direction: resistance network, equivalent to stepping
potentiometer, the user connected to a 10K pull-up resistance voltage,
SCM AD can detect the voltage.
- The wind direction is marked with NSWE direction.
Package size 20X18X30CM
Air pressure module
Notice that there are 2 kinds of shells. They are totally closed and semi closed. Please note which shell you want?
Totally enclosed: suitable for outdoor high temperature and high humidity environment.
Semi closed: easy to install, suitable for semi outdoor or indoor environment.
Without message, default delivery is semi enclosed shell.
