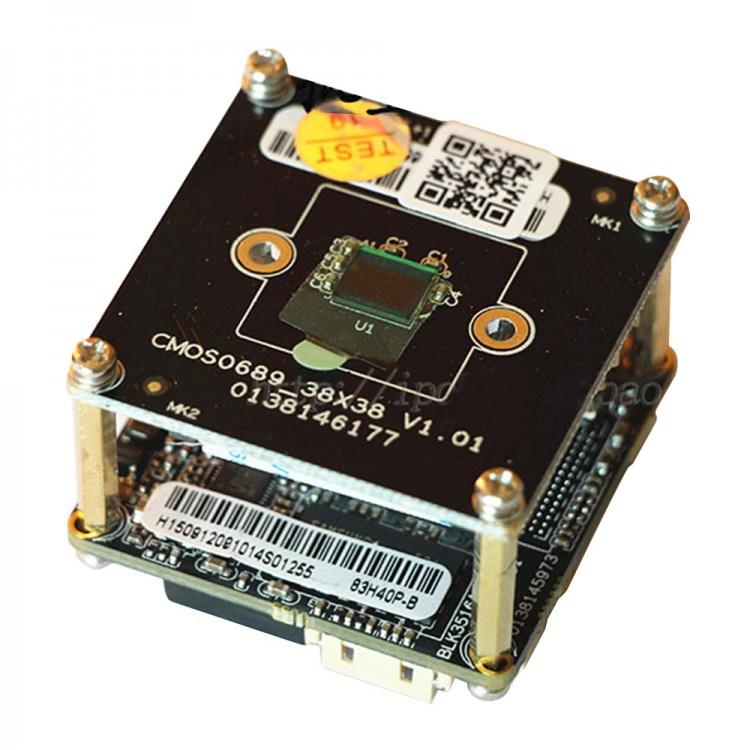

Webcam Camera Module HD 4.0MP CMOS w/Audio Alarm Input RS485 Function

Webcam Camera Module HD 4.0MP CMOS w/Audio Alarm Input RS485 Function

Specification:
- IPG-83H40PL-B
- System: RTOS design, dual core 32bit DSP(Hi3516D)
- Sensor: 1/3"  OV4869 CMOS sensor,color: 0.01Lux @F1.2 black and white 0.001 Lux@f1.2
- Video: H.265/H.264 video encoding,support double stream,AVI format, support stream 0.1M-4M adjustable,support 1-30frame/s adjustable
- Image output: Main stram: 4MP 2592*1520@15fps: 3MP 2048*1536@25fps, sub stream: 1280*720,704*576@25fps
- Support 2D/3D noise reduction
- Suppot digital wide dynamic
- Audio interface: 1 channel input, level 2Vp-p,impedance 1KOhm,support pickuo input;1CH output,16Ohm,30mW output,support headphone or amplifier
- Audio: G.711A encoding decoding,support two way voice function,support audio video synchronization
- 1*RJ45 Ethernet interface, 10/100M self adaptive,support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP et
- 1*USB interface, support WIFI/3G wireless extension
- Automatic aperture: No
- 1*1*Photoresistor resistance interface,1*IR-CUT drive interface,support photoresistor resistance input signal and IR-CUT, infared light linkage
- Gimbal interface:1*RS485 interface, support multi gimbal control protocal
- AlarmI/O: 2/0
- SD card: NO
- Support WEB configuration,
- Support OSD, real-time video transmission, mobile detection and IO alarm linkage front end storage,support front end
- Storage playback/ Download, support mobile alarm center alert;screen pop-up linkage,support MJPEG,support remote supervision software,MYEYE
- Support ONVIF protocal
- Support phone monitoring ,iOS, Android
- DC12V/2A power ,  power consumption <=3W
- Size: 38*38

Package List:
- 1 x Camera module
