AmazingHand Open-Source Robotic Hand (Package 4: Assembled Left Hand with Soft Rubber Fingers)
$252.95
AmazingHand Open-Source Robotic Hand (Package 4: Assembled Right Hand with Soft Rubber Fingers)
$252.95
AmazingHand Open-Source Robotic Hand (Package 3: Unassembled Left Hand with Soft Rubber Fingers)
$197.56
Wecon LX1V-1208MR-D Compact PLC Programmable Logic Controller with 12 Inputs and 8 Relay Outputs
Advantages:
* Model: LX1V-1208MR-D
* Input/Output Points: 12/08
* Output Type: Relay

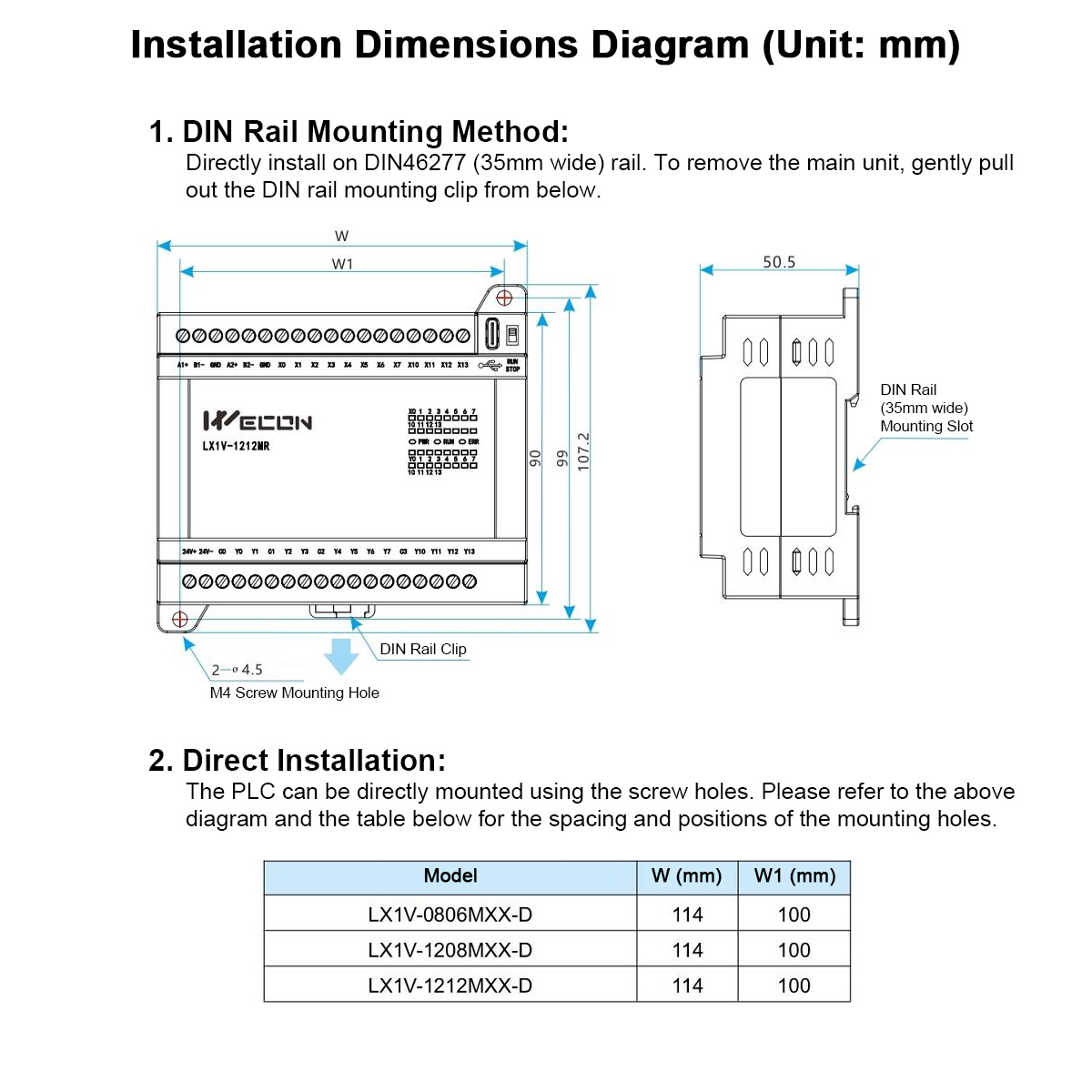

* Dimensions: 114mm × 107mm × 50mm
* High-speed Counting: 2 channels
* High-speed Output: None
* RS485 Serial Ports: 2
* BD Board: Custom Optional
* Expansion Module: Not Supported
* Power Type: DC
Features:
* High-speed I/O: 2 channels of 200kHz single-phase input, 1 channel of 100kHz dual-phase input (optional: 2 channels of 200kHz output)
* Communication Ports: 2 RS485 serial ports and customizable optional BD board
* I/O Configuration: 12 inputs and 8 outputs; expansion modules not supported
Specifications:
* Execution Mode: Cyclic Scan/Interrupt Mode
* Programming Method: Instruction List/Ladder Diagram
* Instruction Types: 27 Basic Instructions/136 + 2 Application Instructions
* Execution Time: Basic Instructions: 0.06μs; Application Instructions: 1–10μs
* Program Capacity: 16K steps
* Download & Monitoring: Serial Programming Cable/Type-C USB
* High-speed Pulse Output: Transistor Type: None (2 channels with expansion); Relay Type: None (2 channels with expansion)
* High-speed Counter Interrupts: 6 channels
* Timer Interrupts: 3 channels
* High-speed Single-phase Input: 2 channels at 200kHz; 4 channels at 5kHz
* High-speed AB-phase Input: 1 channel at 100kHz (supports 1×, 2× and 4×); 1 channel at 5kHz (supports 1×, 2× and 4×)
* Power-off Data Retention: Adjustable via software
* Storage Medium: Flash
* Digital Filtering: Applied to all input terminals
* Serial Communication: RS485
* Operating Temperature: 0 to 55℃
* Storage Temperature: -20℃ to 70℃
* Humidity: 35~85% RH (non-condensing)
* Shock Resistance: Complies with JIS C 0040 standard
* Noise Immunity: Complies with IEC61000-4-4 and GB/T 17626.4: Noise voltage amplitude 1kV P-P, 10μs pulse width, 0.3s cycle, 5ns edge, continuous for 1 minute
Packing List:
* 1 × PLC Controller
Packaging Details:
* Weight: 0.7kg
