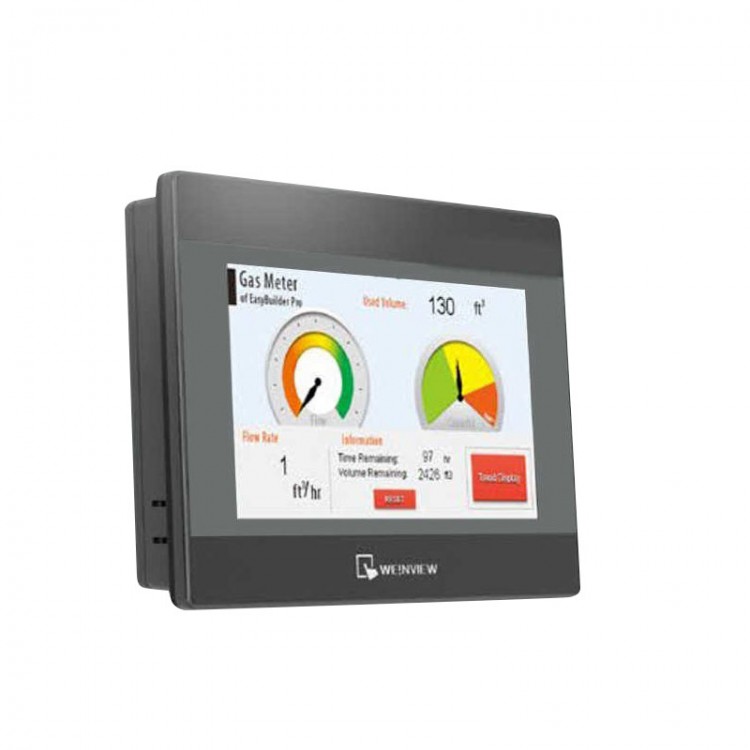

Weinview MT8072IE HMI Touch Screen (Upgraded Version of MT8071iE) with 7" 800 x 480 TFT LCD Screen
Features:
* 7" 800 x 480 TFT LCD with LED backlight
* Fanless cooling system
* COM2 and COM3 RS-485 2W support MPI 187.5K. Choose one to use at a time
* Its mainboard is coated for protection, preventing corrosion in harsh environments
* Built-in power isolation
* NEMA4 / IP65 front panel protection level
MT8072IE Specifications:
Display:
* Display: 7" TFT
* Resolution: 800 x 480
* Brightness (cd/m²): 450
* Contrast: 500:1
* Backlight Type: LED
* Backlight Life: >30,000 hours
* Color: 16.7M
* LCD Viewing Angle (T/B/L/R): 60/70/70/70
* Dot Pitch (mm): 0.1926 (H) x 0.179 (V)
Touch Panel:
* Type: Four-wire resistive
* Touch Accuracy/Hardness: Active area Length (X) ±2%, Width (Y) ±2%
Storage:
* Flash Memory: 256 MB
* RAM: 128 MB
Processor:
* Processor: Dual-core RISC CPU
I/O Interfaces:
* SD Card Slot: None
* USB Host: USB 2.0 x 1
* USB Client: None
* Ethernet Interface: 10/100 Base-T x 1
* Wireless Transmission: None
* Serial Interfaces: COM1: RS-232; COM2: RS-485 2W/4W; COM3: RS-485 2W
* RS-485 Dual Isolation Protection: None
* CAN Bus: None
* HDMI-compatible: None
* Audio Output: None
Perpetual Calendar:
* Perpetual Calendar: Built-in
Power:
* Input Power: 24±20% VDC
* Power Consumption: 450mA at 24VDC
* Power Isolation: Built-in
* Dielectric Strength: 500VAC (1 minute)
* Insulation Resistance: 500VDC over 50MΩ
Specifications:
* PCB Coating: Yes
* Enclosure Material: Engineering plastic
* Dimensions: 200.4x146.5x34 mm
* Cut-out Dimensions: 192x138 mm
* Weight: Approximately 0.52 kg
* Mounting Method: Panel mount
Operating Environment:
* Protection Level: NEMA4/IP65 Compliant Front Panel
* Storage Temperature: -20℃ to 60℃ (-4°F to 140°F)
* Operating Temperature: 0℃ to 55℃ (32°F to 131°F)
* Relative Humidity: 10% to 90% (non-condensing)
* Maximum Altitude (Air Pressure): Below 3,000 meters (70.1kPa)
* Vibration Resistance: 10 to 25Hz (X, Y, Z Axes 2G for 30 minutes)
Certifications:
* CE: CE marked
* UL: None
Software:
* EasyBuilder Pro: Available only for Simplified Chinese version EasyBuilder Pro V6.08.01 or later
* Weincloud: EasyAccess 2.0 (optional)
* For CODESYS®: None
Package Included:
* 1 x HMI Display
Packaging Details:
* Weight: 0.75kg
