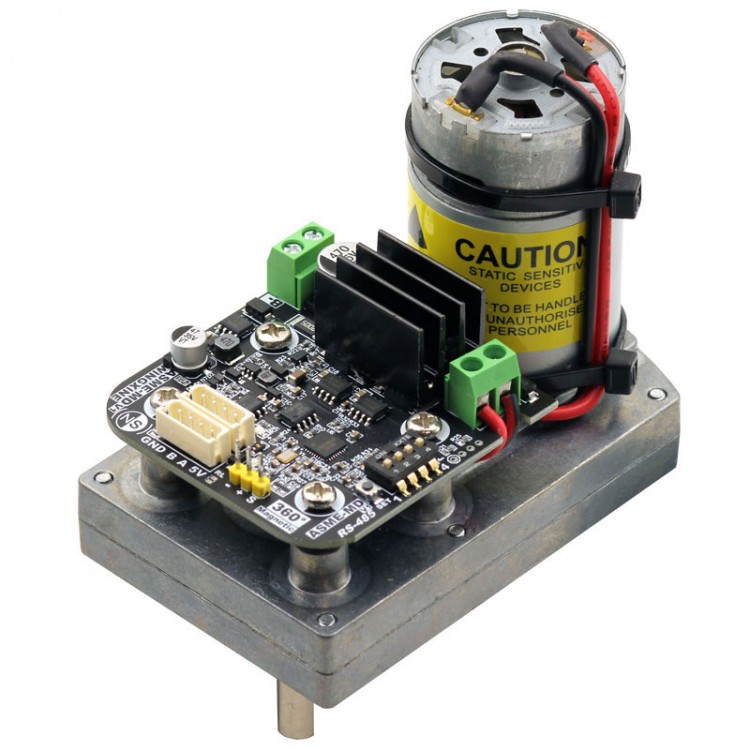

WINGXINE 380Kg.cm High Torque Servo Bus Servo ASME-MDv1B with RS485 Communication Control Port

Availability: In stock, usually dispatched in 1 business day

  • Price:$65.20
  • Price in reward points: 652 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $63.90 $62.59 $60.64 $58.03 Contact US
Quantity:

WINGXINE 380Kg.cm High Torque Servo Bus Servo ASME-MDv1B with RS485 Communication Control Port

Features:

- Suitable for servo controller, model aircraft wireless remote control and analog voltage control
- Alloy gear high-power motor with high-torque output
- Super light weight reduction box body made of aluminum alloy
- Easy to install and durable to use

Applications:
- Robot, robotic arm, manipulator, PTZ control, valve control, production line robot, camera PTZ control, etc.
- Heavy-duty motion control of arm joints and leg joints of large robots
- Industrial automation production line robot control
- Precise control of valve angle
- Large camera PTZ remote control
- Various occasions requiring large torque angle control

Rated Parameters:
- Rated voltage: 8V~24V/DC (8V/MIN~30V/MAX, limit voltage)
- No-load current: <500mA (current limit value: 5A; it is recommended to use a switching power supply greater than 10A or battery)
- Limit angle: ±180° or 0°~360° (MAX); the servo has electronic limit adjustment
- Control mode: RS485 communication (level voltage 5V), pulse or analog voltage (communication mode can be customized)
- Control resolution: 360° corresponds to 15Bit resolution (32768), 32-bit MCU for ARM, real digital port to read magnetic encoded data
- Material: Gear and Shaft: Alloy Steel; Gear Box: Cast Aluminum
- Weight: 550g
- Mechanical life: >1,000,000 times/full load (conservative value)

Limit Parameters:
- Limit voltage: 7V~30V/DC (MAX)
- Current limit: 10A±0.2A (MAX)
- Working angle: ±180° or 0°~360° (MAX)
- Weight: 550g~600g

Package Included:
- 1 x Servo
- 2 x 4Pin Bus Cable

Note:
- Servo horn and battery are not included.
- Protocol and functions can be customized.
