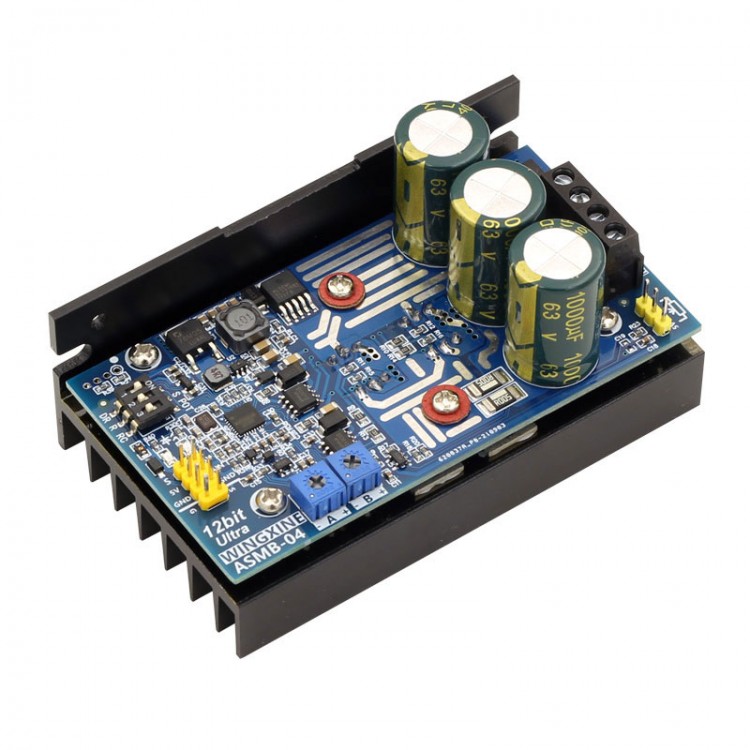

WINGXINE ASMB-04 Single-channel 1000Nm Servo Controller Board to DIY High-torque Servo 8V-48V 20A
Features:
- Suitable for servo control, model aircraft wireless remote control and analog voltage control
- High torque output with metal gear high power motor
- With current limiting protection and power regulation
- Easy to install and durable to use
- Can be used to assemble a servo
Applications:
- Robot, robotic arm, manipulator, PTZ control, valve control, production line robot, camera PTZ control, etc.
- Heavy-duty motion control of arm joints and leg joints of large robots
- Industrial automation production line robot control
- Precise control of valve angle
- Large camera PTZ remote control
- Various occasions requiring large torque angle control
Specifications:
- Rated voltage: 8V/48VDC
- Limit current: 20A (maximum constant current output)
- Control mode: RC pulse (standard servo mode)/analog voltage (0V-5V)
- Control resolution: 12bit
- Select RC mode pulse width: 0.5ms-2.5ms pulse width/1.0ms-2.0ms pulse width (can be set)
- Sensitivity adjustment: 0%-100%
- Weight: 165g (MAX)

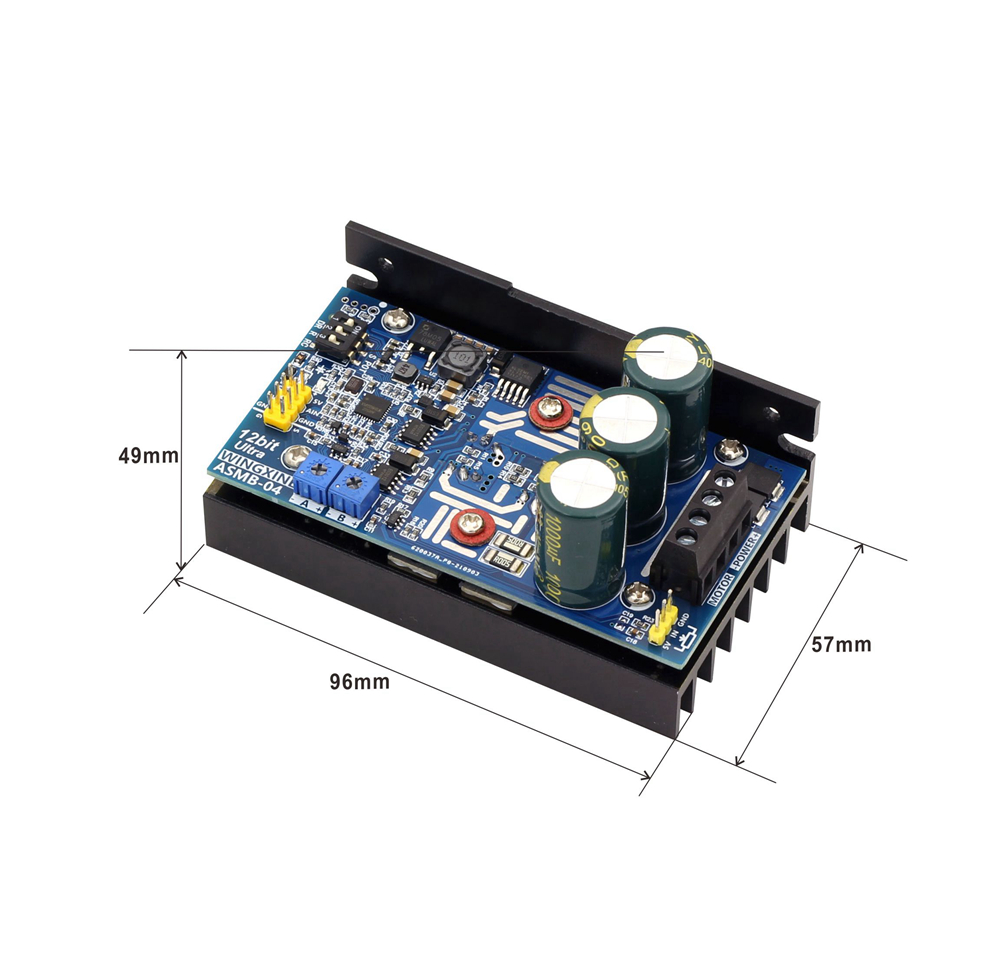

- Dimensions: 96 x 57 x 49mm (LxWxH)
Package Included:
- 1 x Servo Controller
- 1 x Servo Signal Cable
