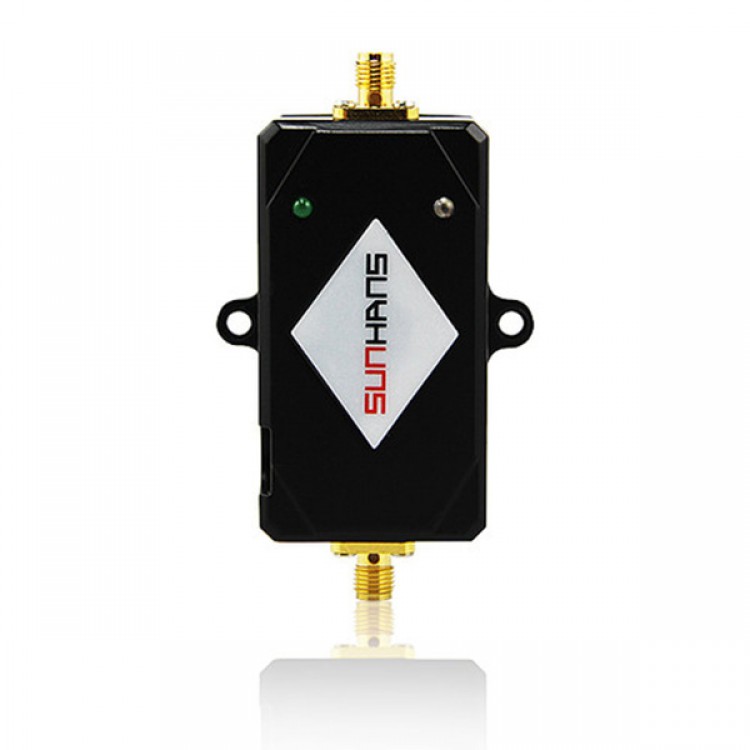

Wireless 802.11 B/G/N 2.5W/2500mW Wifi Broadband Amplifier 2.4Ghz Booster FPV Transmitter Signal Booster

Wireless 802.11 B/G/N 2.5W/2500mW Wifi Broadband Amplifier 2.4Ghz Booster FPV Transmitter Signal Booster

Product Features:
-This 2.4 GHz booster enlarges your WiFi devices to of 2500MW [2.5Watt/34dBm], increase the range of your wireless network coverage, strength and stability.
-The working principle of the pusher bidirectional (TX / RX). Which amplifies both the output power (TX) and receiver sensitivity (RX) WiFi devices.
-In standard WiFi devices have an output power of 100mW [0.1Watt/20dBm].
-You do not have to install any drivers or special configuration. Just connect booster to your WiFi devices (Plug and Play) external antenna socket and connect your wireless antenna boosters.

Specification:
- Model: SH24BTA-N11N wireless booster
- Supports standard: IEEE802.11 B / G / N
- 2500 MHz frequency: 2400 -2500MHz
- Impedance: 50ohm
- RF output power: 2500MW [34dBm]
- Transmit Gain: 1317 db
- Receiver Gain: 8 - 12dB
- The input trigger power-minute. 5dBm the
- Maximum. +17dBm (50MW)
- Noise factor: 3.0 dB (typical)
- Operating Temperature: -40Cto +70C
- Operating Humidity: up to 95 ° relative. Humidity
- LED: Transmit Active(Blue), Power(Green)
- Housing: aluminum
- Main Color: Black

Warning: This schematic diagram as signal coverage is only as a reference sample, signal strength and signal amplifier power relate to the environment.

Package Content?
- 1 x Broadband Amplifier Booster
- 1 x AC Power Charger
- 1 x Antenna
- 1 x Cable
- 1 x User Manual
