Wireless GSM Alarm System Home Burglar Alarm System SOS Motion Door Window Sensor Security

Wireless GSM Alarm System Home Burglar Alarm System SOS Motion Door Window Sensor Security

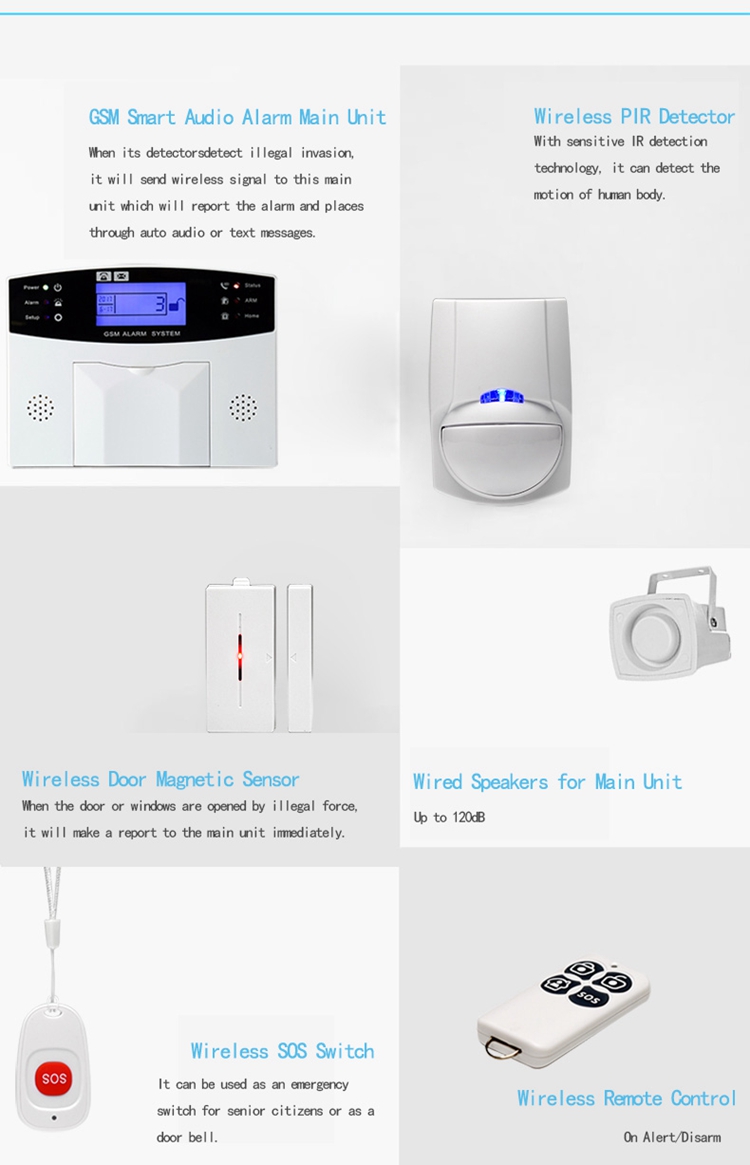

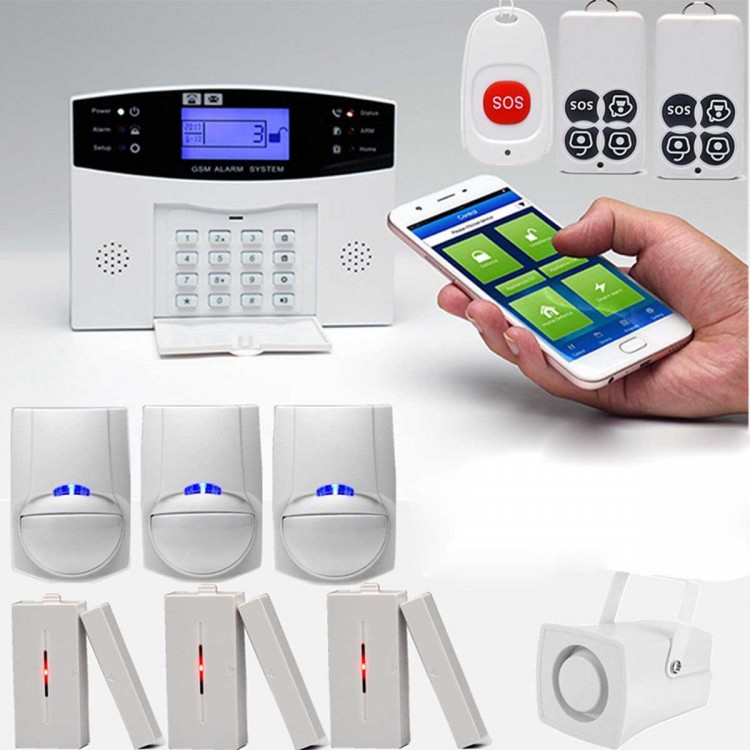

Package Included:
- 1 x Main Device
- 1 x Siren
- 1 x SOS Switch
- 1 x Charge (please choose one of you suitable types)
- 2 x Remote Controls
- 3 x PIR Detectors
- 3 x Sets of Door Magnetic Sensor
- 3 x Instructions
- 4 x Sets of Accessories

Specifications:
- Product name: (GSM alarm system) wireless LCD GSM SMS burglar alarm system auto dialer home security safe

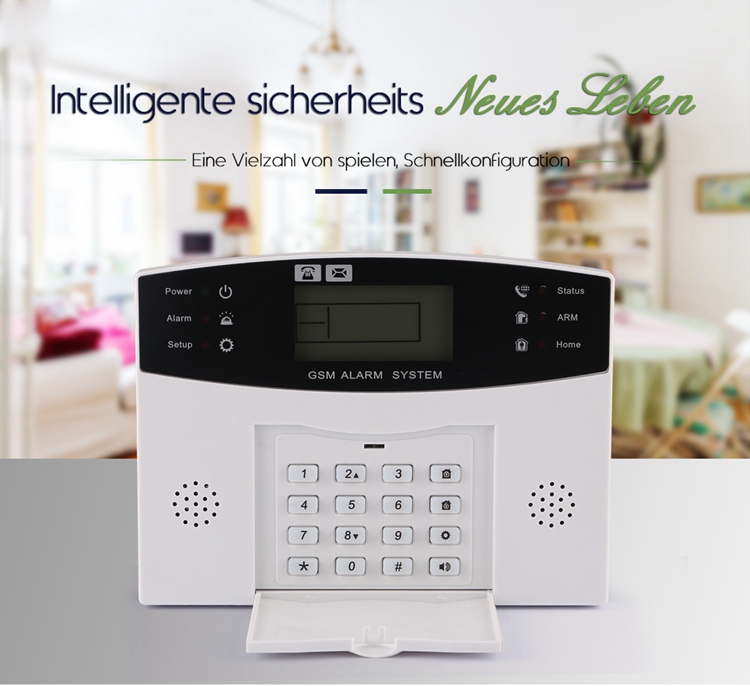

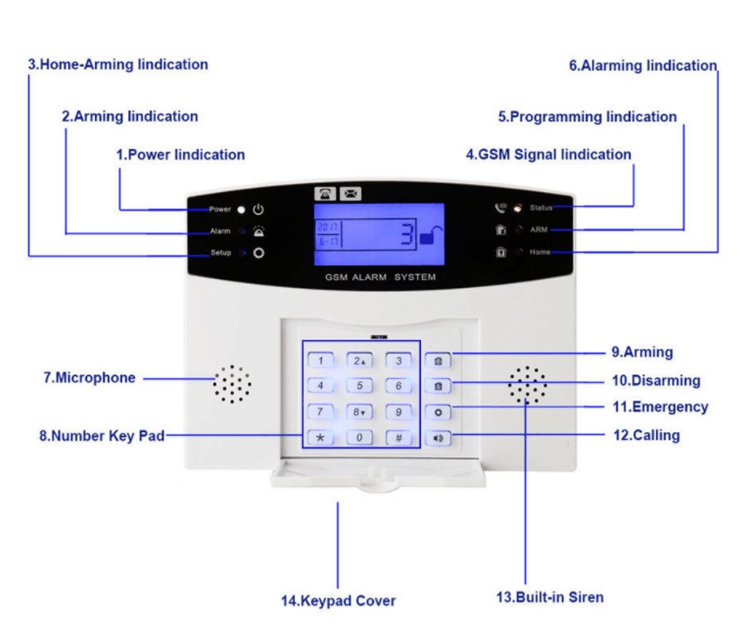

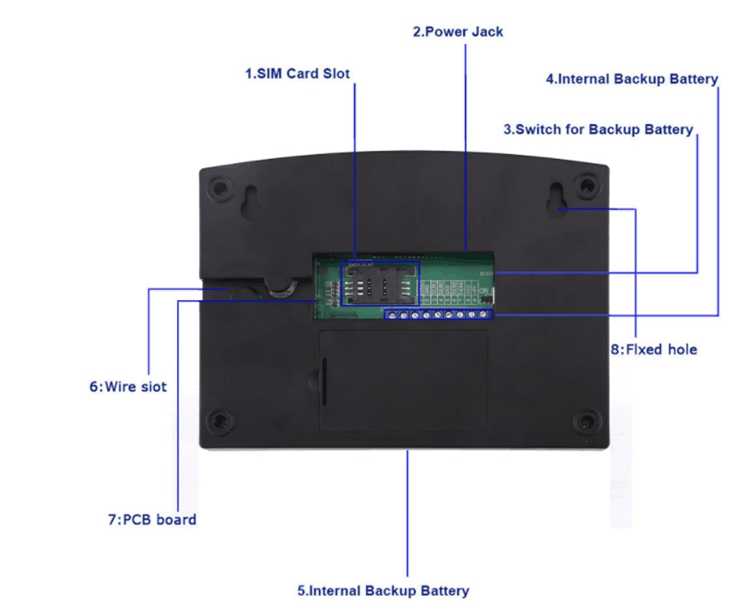

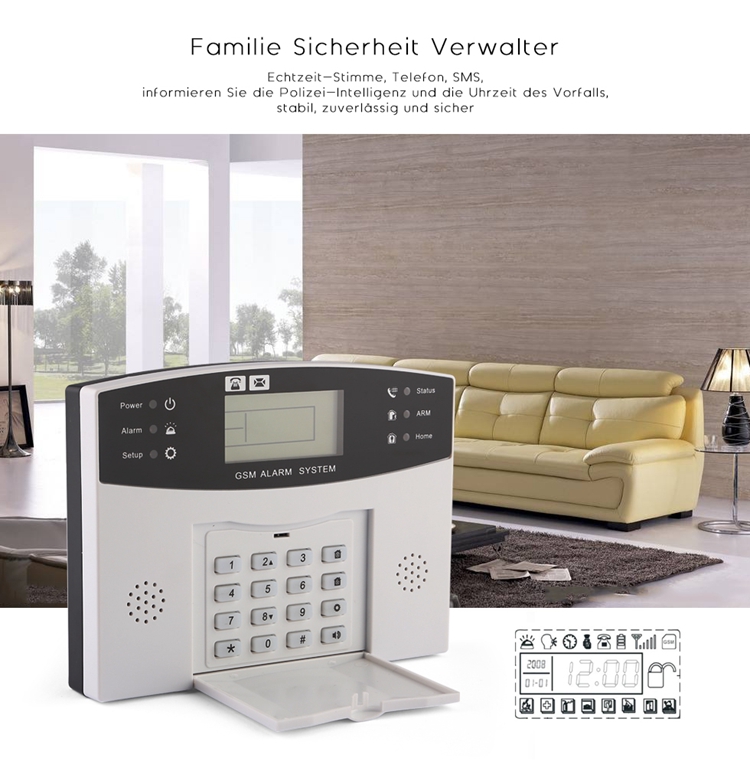

- Model: CS85
- Size (main device): 176x130x27.4 mm
- Power supply: 110～230VAC（input）12V/1. 0A（output）
- Backup battery: 7.4V/500 mah
- Standby current: ≤80ua
- Alarm current: ≤500ma
- GSM (HZ): 850/900/1800/1900mhz
- Operating temperature: -10℃-60℃
- Operating humidity: ≦95%
- Wireless frequency: 433Mhmhz
- Alarm sound: ≥110db
- Transmission of outdoor wireless power: 10±14db
- Alarm transmission: GSM transport
- Size (charge): 74.4x48.2x38.8 mm
- Color: White
- Material: Plastic

- Size (siren): 61x45.9x33.6 mm
- Size (SOS switch): 59.3x34.5x11.8 mm
- Model: RC22
- Voltage: DC3 (2032Alkaline battery)
- Operation scope: 200m
- Frequency: 315/433.92/868.4MHZ
- Static current: 0

- Size (Remote control): 58x31x10.2 mm
- Model: RC22
- Voltage: DC3（2032Alkaline battery）
- Operation scope: 150m
- Frequency: 433.92MHZ
- Static current: 0
- Working current: 10ma

- Size (PIR detector): 92x62.4x39.3mm
- Parameter specification: Detection angle: 110 degrees;
- Detection range: 9 m @ 25 ℃
- Working voltage: DC9V
- Alarm output: Normally closed (100ma / 30VDC)
- Disassemble output: Normally closed (100ma / 30VDC)
- Working environment: Indoor;
- Disassemble switch: Normally closed;
- Loss mode: Wireless transmission alarm frequency 315/433.92/868.4 MHZ;

- Size (door magnetic sensor: 77.1x48.8x19 mm
- Model: CD100
- Voltage: DC12V（23A battery*1）
- Operation scope: ≤200m（in open area）
- Frequency: 315MHZ/433.92MHZ
- Static current: ≤1μa
- Working current: ≤15ma
- Working distance: ≥2mm
- Transmission protocol: 1527
- Transmitter method: Wireless
- Temperature: -10℃-50℃（14℉-122℉）

Note:
-The color of the item may vary slightly due to photography and different PC monitor.
-The size might be slightly errored due to manual measurement. Your kindly understanding would be appreciated.

Download User Manual Here:
https://drive.google.com/open?id=152SwqT0XSRHJ-S09i03zagzWwBP1H4Ks

、
