WitMotion JY901B High Precision Accelerometer Gyroscope Module Magnetometer Air Pressure Angle Sensor with USB-TTL Module
Description:
- The product is a professional attitude inclination sensor module that obtains chip three-axis acceleration, gyroscope, and magnetic field data. It calculates real-time three-axis attitude angles through Kalman filtering fusion algorithm, and outputs air pressure and altitude data.
Features:
- The angle accuracy is 0.2° on the X and Y axes, and 1° on the Z axis (without magnetic interference and after calibration), making it highly cost-effective in the same price range products.
- The Z-axis heading angle is filtered and fused with magnetic field sensors, completely solving the cumulative error caused by gyroscope drift in the 6-axis algorithm, and can stably output heading angle data for a long time.
- Serial TTL/IIC communication, suitable for single-chip micro-controllers and secondary development applications.
- High speed 0.2-200Hz feedback to meet high-speed sampling requirements.
- Supports horizontal/vertical installation methods.
- Small size, stamp hole, convenient for mass SMT production.
- It can be connected to an external GPS module to form an inertial navigation system and synchronously output positioning information.
- Rich private customization and configuration functions.
- Note: The heading angle of the product depends on the measurement data of the magnetic field sensor, so when measuring the heading angle, it is necessary to stay away from the magnetic field interference area, at least 20cm away from hard magnetic objects such as speakers and magnets, and 5cm away from soft substances such as iron nails, cobalt, and nickel, the magnetic field needs to be calibrated before use.

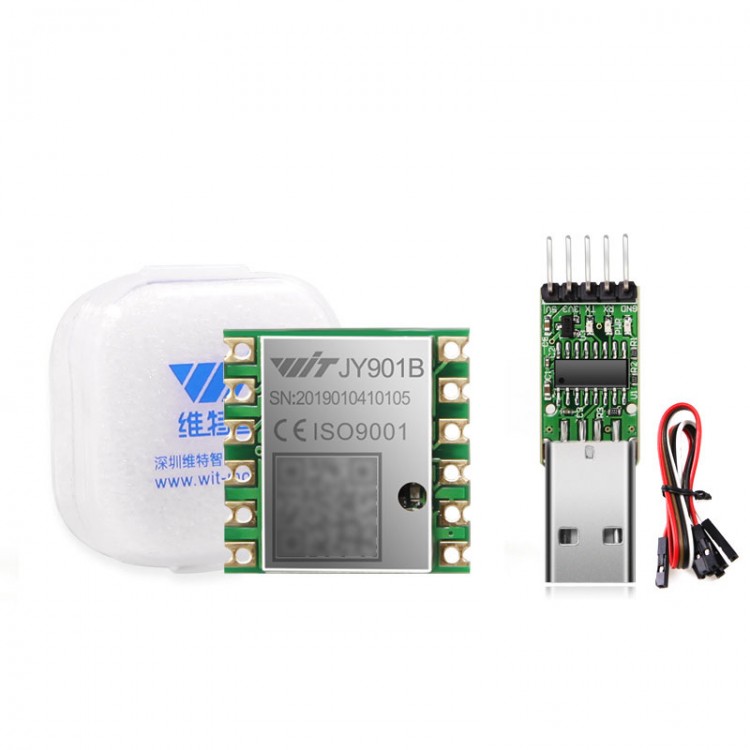

Package Included:
- 1 x JY901B Module
- 1 x USB-TTL Module
