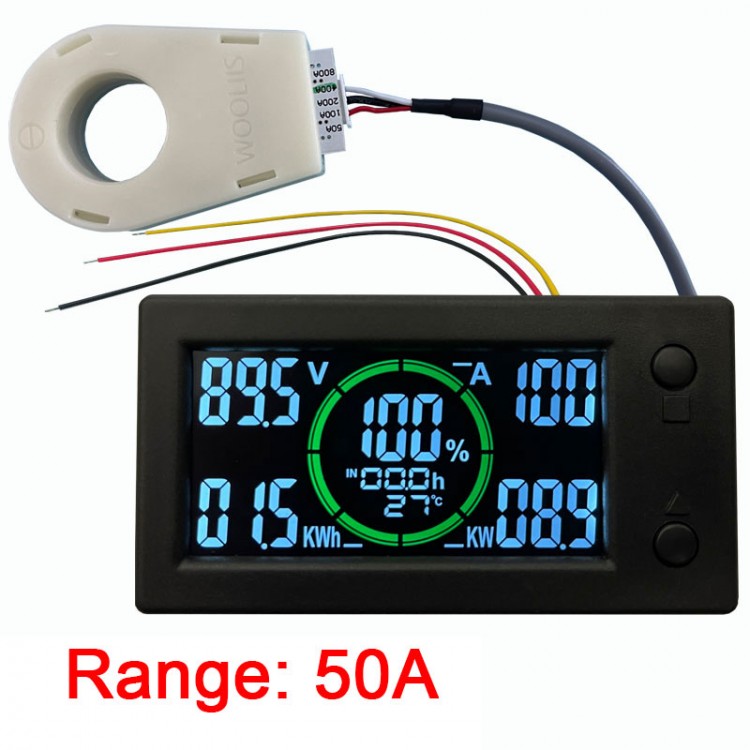

• WLS-MVA050 50A LCD Display Coulometer High Performance Current Voltage Power Electric Energy Meter

WLS-MVA050 50A LCD Display Coulometer High Performance Current Voltage Power Electric Energy Meter

Availability: In stock, usually dispatched in 1 business day

  • Price:$26.45
  • Price in reward points: 265 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $25.92 $25.39 $24.60 $23.54 Contact US
Quantity:

WLS-MVA050 50A LCD Display Coulometer High Performance Current Voltage Power Electric Energy Meter

Installation and setting steps:
- Thread the sensor
- Power supply for coulometer
- Set parameters

Parameter:
- Model:WLS-MVA050
- Current test range: 0~50A
- Current resolution: 0.1A
- Power supply voltage range: DC5~90V
- Voltage test range: DC0~300V
- Voltage resolution: 0.1V
- Capacity test range: 0~999AH
- Power test range: 0~999KW
- Electric energy test range: 0~999KWH
- Temperature: -50℃~125℃
- Measuring accuracy: +/-1%
- Slotting size of panel installation: 76mm x 40.5mm
- Diameter size of sensor hole: 20mm
- Working current: When the backlight is open: 25MA
  When the backlight is closed: 4MA

Package Included:
- 1 x Host
- 1 x Sensor
- 1 x Power Cable
- 1 x Connection Cable of Sensor
