Wondom 1x100W Class D Subwoofer Amplifier Board w/ DSP Electronic Crossover EQ JAB3-1100 AA-JA31181

Availability: In stock, usually dispatched in 1 business day

  • Price:$31.15
  • Price in reward points: 312 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $30.53 $29.90 $28.97 $27.72 Contact US
Quantity:

Wondom 1x100W Class D Subwoofer Amplifier Board w/ DSP Electronic Crossover EQ JAB3-1100 AA-JA31181

Product Description:

JAB3-1100 is an All-in-one mono Class D audio amplifier board integrated with high performance DSP – ADAU1701, outputting 100W into a 2Ohm load based on TPA3116 chip. With the integrated DSP chip, JAB3 can be applied to various DIY audio, commercial or industrial applications such as digital crossover, bass enhancement, loudspeakers, kiosk, etc. After connection with WONDOM programmer – ICP series, JAB3 supports for programming with SigmaStudio, remote control through APP or PC UI.

Video for how to achieve I2S input and output of JAB3: https://www.youtube.com/watch?v=7huHn2JoGkA

Video for introduction of JAB3: https://www.youtube.com/watch?v=3Kz13mp55oA

Video for connection with JAB2 and APP control: https://www.youtube.com/watch?v=-wOcJUeXEUY

Video for reprogram DSP with SigmaStudio: https://www.youtube.com/watch?v=-vQsGYfodEI

Miumax Download link for Android Phone: store.sure-electronics.com/images/documents/Miumax_v1.0.1_2020.6.22.apk

Miumax Download link for iOS Phone: Please go to APP Store and search “Miumax” directly.

Integrated with DSP
The on board fully programmable 28-/56-bit audio DSP ADAU1701 is competent in various signal processing applications. This process can compensate for real-world limitations of speakers, amplifiers, and listening environments, providing dramatic improvements in perceived audio quality.

Four potentiometers are provided on JAB3 for real time hardware control of the whole audio system for volume, gain and high / band pass filter.

Supporting for SigmaStudio Program and Remote Control
Different applications have unlike requirements on audio as the speakers, the environment and the preference are different. To give customers better control of audio systems, Sure Electronics has released In-circuit programmers (ICP series), with connection of which, you can program DSP with for SigmaStudio or remote control the system with APP or PC UI.

We have developed an APP – Miumax for remote control, with which, you can adjust volume, gain, frequency and EQ setting. PC UI is also available for different applications as digital crossover, bass enhancement, subwoofer, and so on.

Sure Electronics has provided open-sourced files for customers to start the project quickly.

High Quality Audio Performance

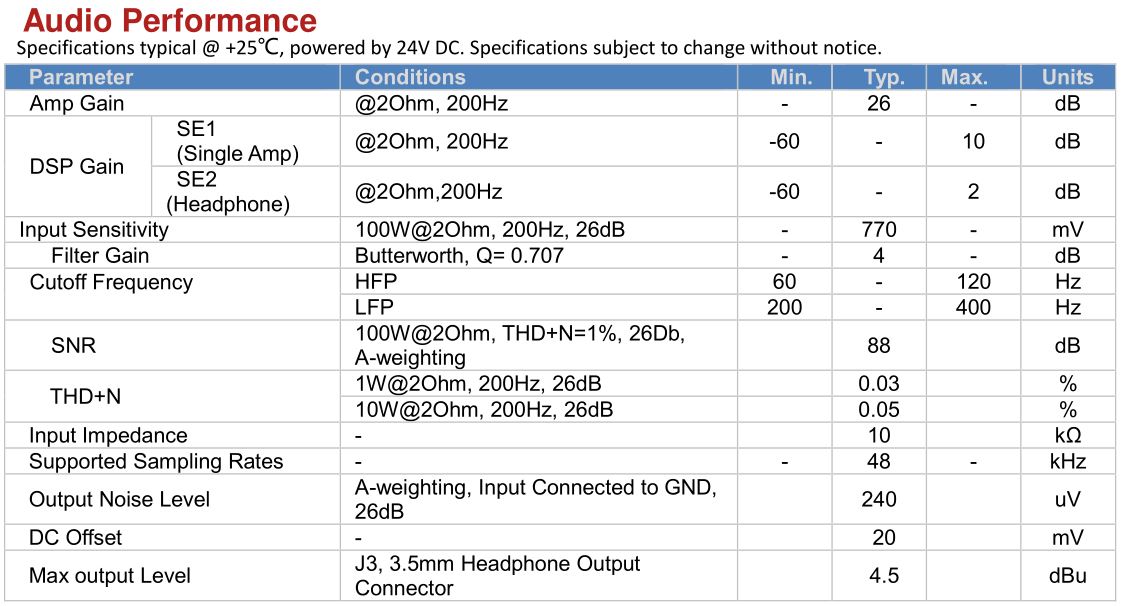

Thanks to dedicated PCB layout design and engineers' attentive debugging, this JAB3-1100 audio amplifier board features high audio performance, whose SNR is 88dB and THD+N performs well as 0.03% at 2Ohm, 1W, 200Hz.

Low Power Consumption and Long Playback Time
Power management system and Signal level sensor system are employed on JAB3 for low power consumption. We have preset a threshold on the input voltage of the signal. When there is no signal detected in 5min, JAB3 would enter into standby mode automatically.

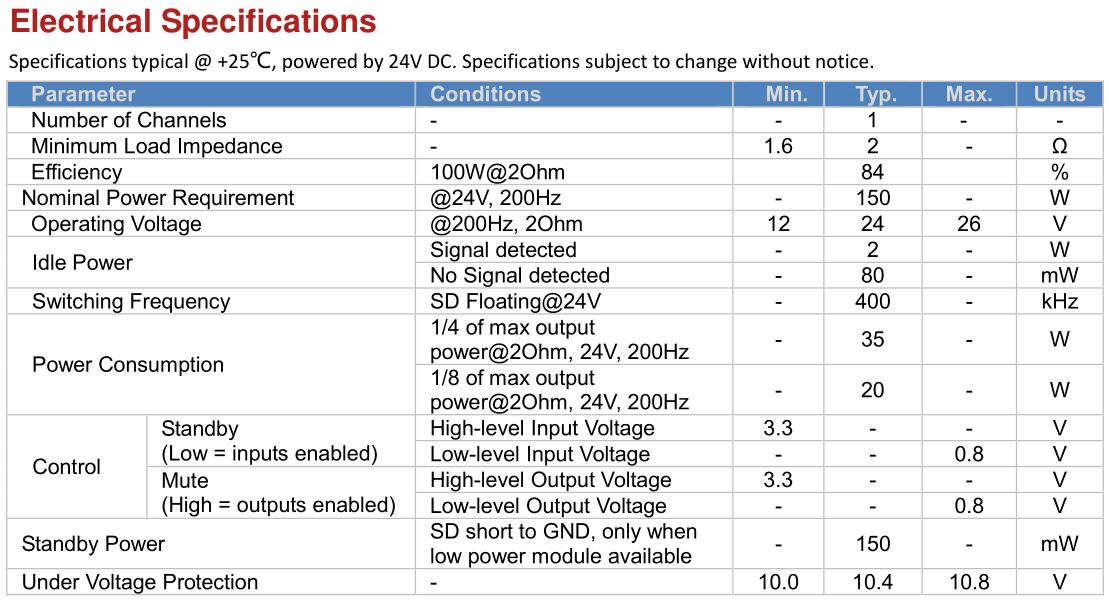

This JAB3-1100 audio module dissipates only 150mW in standby mode. The extremely low power consumption ensures long playback time especially when JAB3-1100 is powered by battery boards (battery boards are not included), which is absolutely an advantage for portable Bluetooth speakers.

Supporting Battery Power (Battery is not included)
A DC10V-26V power supply is required to power JAB3-1100.

In addition to power supply, JAB3 also supports battery power, which greatly improve the portability and flexibility of audio systems.

Please kindly noted that MPPT circuit is not employed in JAB3. So JAB3 cannot be used to recharge batteries. If you only buy JAB3 and want portable battery power, it is recommended to use WONDOM Battery charging, protection and balance board – BCPB series. If you have a JAB1 / JAB2 at hand, you can use the WONDOM Battey charging and protection board (JAB – BE, AA-JA11113) for power.

Easy for Installation
Four screw holes provided make this Bluetooth amplifier board easy for installation and quick for integration in any cabinet. We provide a Functional cables kit (JAB - FC) for your convenient operations. Furthermore, a 3.6" x 2.7" L-style aluminum bracket (JAB - LAB) is available to fix the Bluetooth amp in wiring process and to install the board to cabinets.

Build Audio 2.1/4.0 system with Bluetooth and DSP
JAB2 can connect with mono JAB3 to build an audio 2.1 system or connect with stereo JAB3 to build an audio 4.0 system. This built system will be integrated with both Bluetooth and DSP, suitable for portable Bluetooth speakers and digital crossover applications. A Functional cables kit (AA-AJ11116) is released for your convenient connection.

Download Document:
https://store.sure-electronics.com/document-download/147

Package Included:
- 1 x Set of Amp Board


Note:
1. JAB3 can be powered by three 18650 lithium battery balancing and protection boards (AA-JA11113). Please note that AA-JA11113 does not have a charging function, and the battery charging circuit is integrated on JAB1/JAB2. That is, if the customer wants to charge the lithium battery of AA-JA1113, JAB1/JAB2 is a must.
2. In order to achieve low power consumption, JAB3 integrates a small signal detection system. When the system does not detect an audio signal for a long time, JAB3 will enter the standby mode; in this case, once an audio signal is detected, JAB3 will immediately resume work.
3. JAB3 can be used in conjunction with JAB2.
4. Battery and other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
