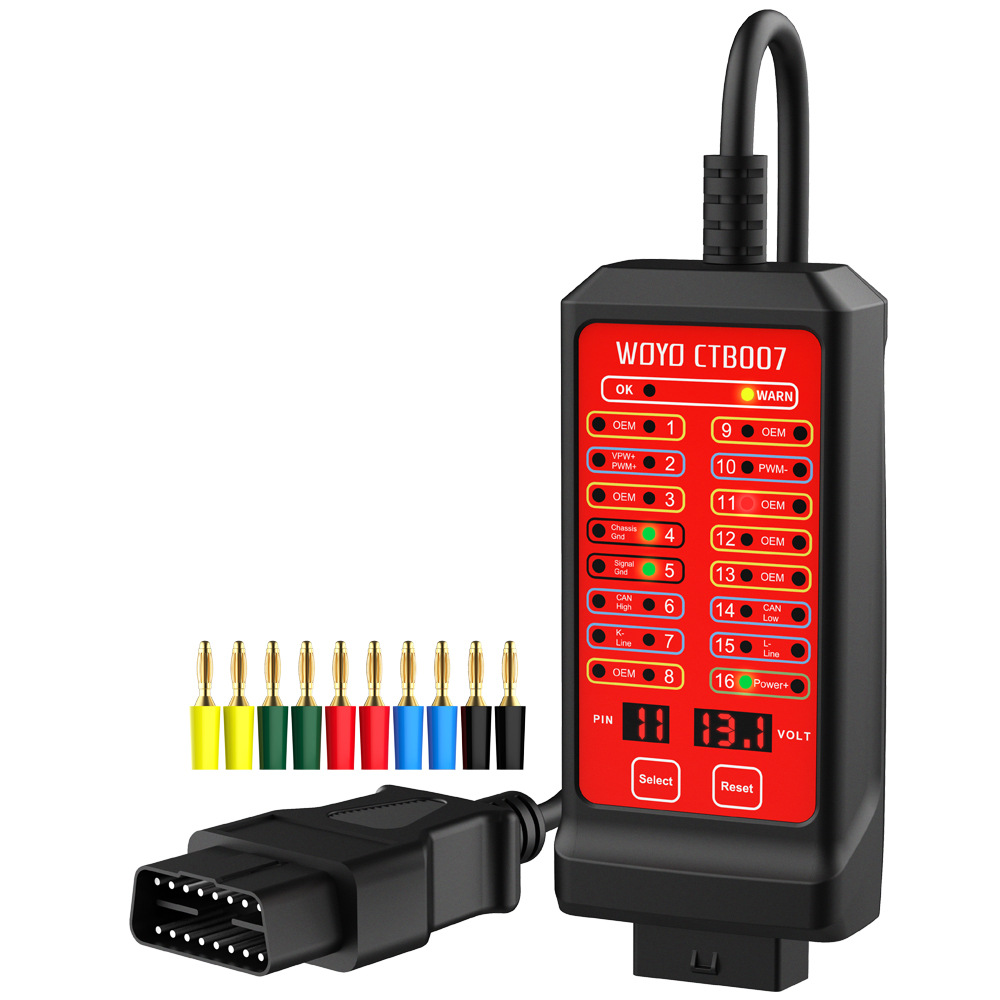

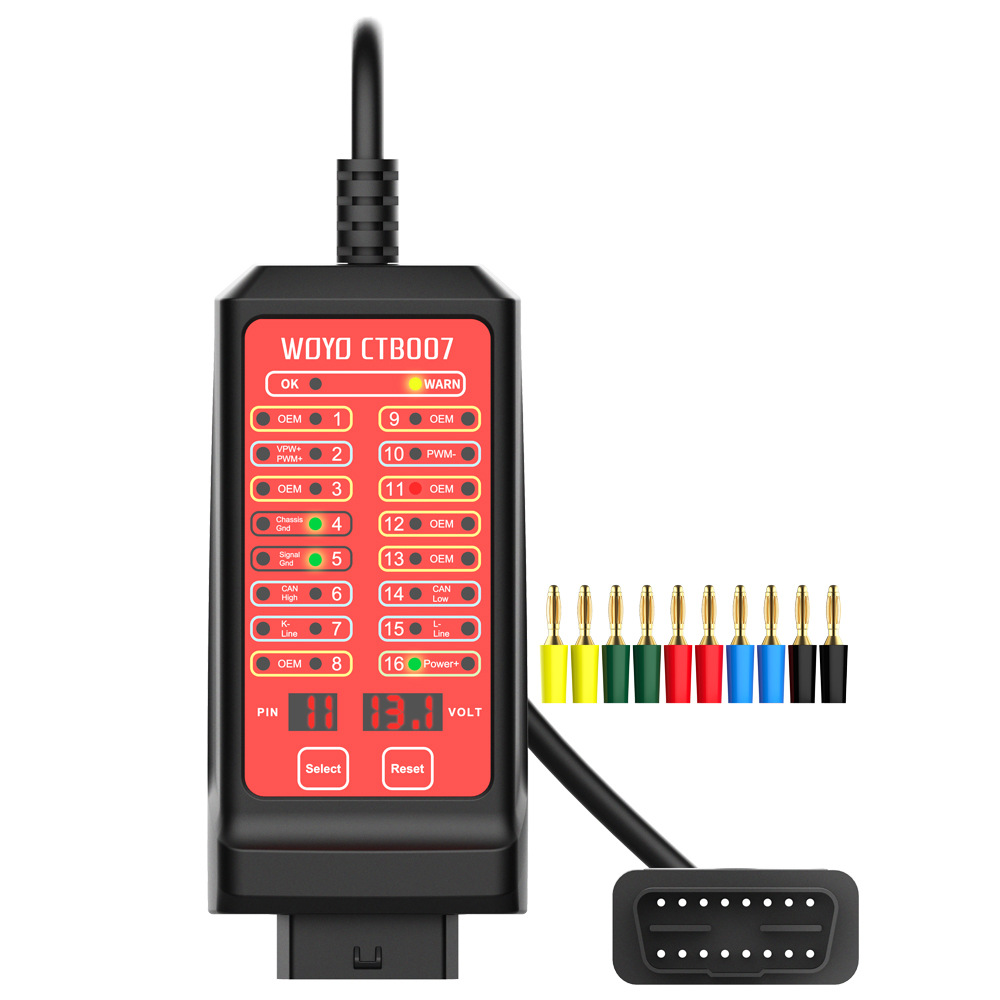

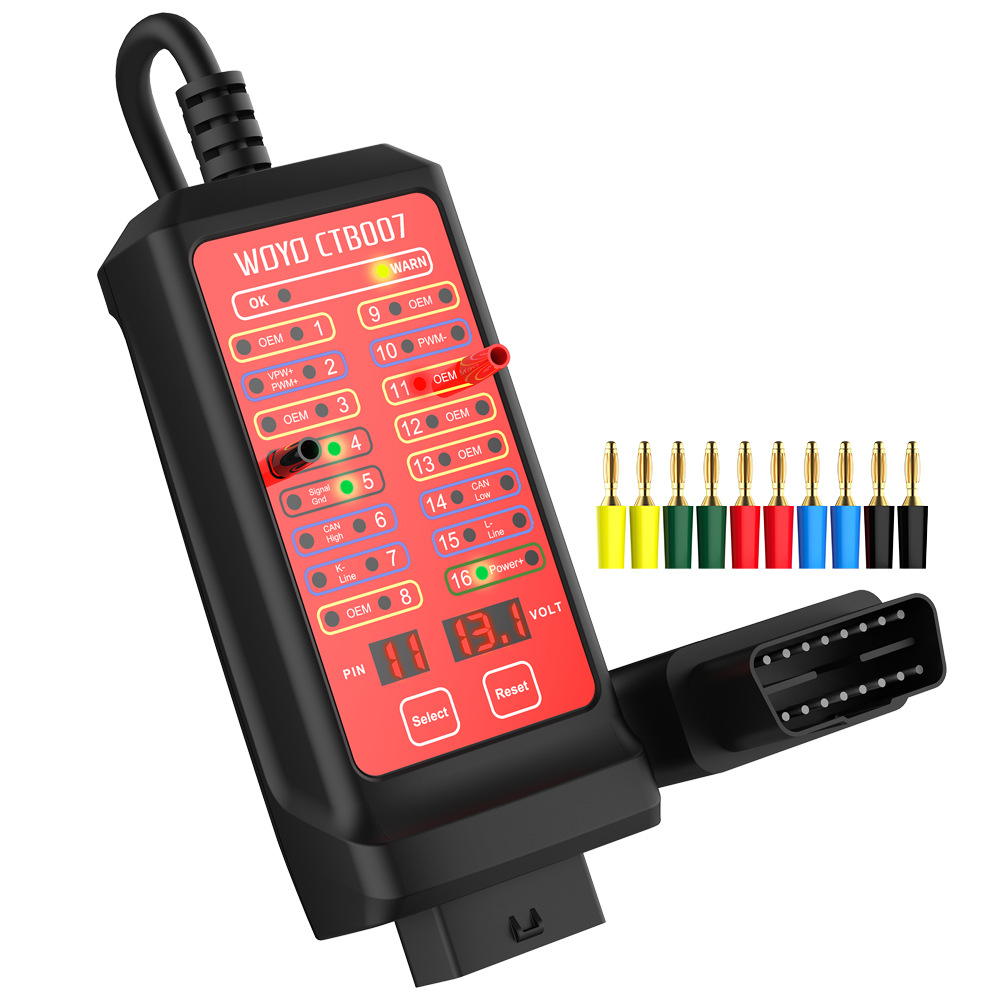

WOYO CTB007 CAN Tester Box OBD2 16Pin Break Out Box Setting Diagnostic Tool with 9-32VDC Input
Introduction:
- CAN Tester Box is a CAN Bus circuit tester compatible with 12 and 24 volt systems.
- Before other diagnostic devices was connected to the DLC, testing the DLC (OBD port) if any abnormality.If there is a short circuit or polarity reverse connected, this can avoid diagnostic scan tool be damaged.
- Real-time display of communication signals ( such as communication protocol signals ) on the allocated pins which can quickly locate faults and replace the voltage measurement function of digital multi-meter.
- Fastly connect 16 pins during vehicle maintenance diagnosis.
- Monitoring input voltage of OBD when burning module, high and low voltage alarm.
Specifications:
- Input Voltage: 9.0-32.0VDC
- Maximum Load: 2.0A
- Resolution: 0.1V
- Overload Protection: Yes, PTC Fuse (Self-Healing)
- Reverse Polarity Protection: Yes, LED on Pin 4&5 turn red
- Protocol Standard: PWM(J1850), VPW(J1850), ISO9141-2, DIS/ISO 14230-4, CAN(J-2284)
- Operating Temperature: 0℃-50℃, Humidity<70%
- Probes Socket: 16P x 2.0mm
- OBD Cable Length: 70cm(27.5inch)

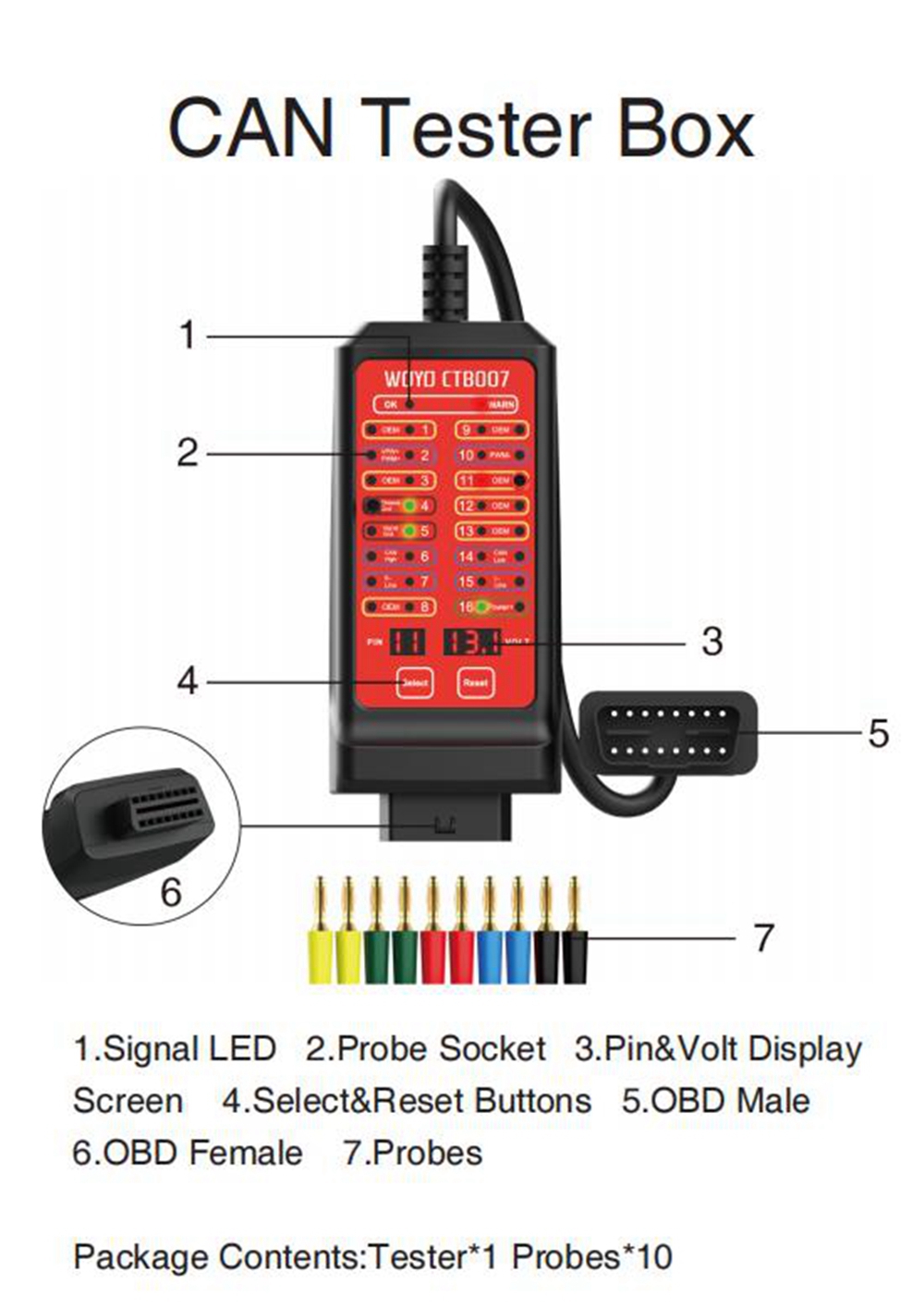

Package Included:
- 1 x Host
- 10 x Probe
