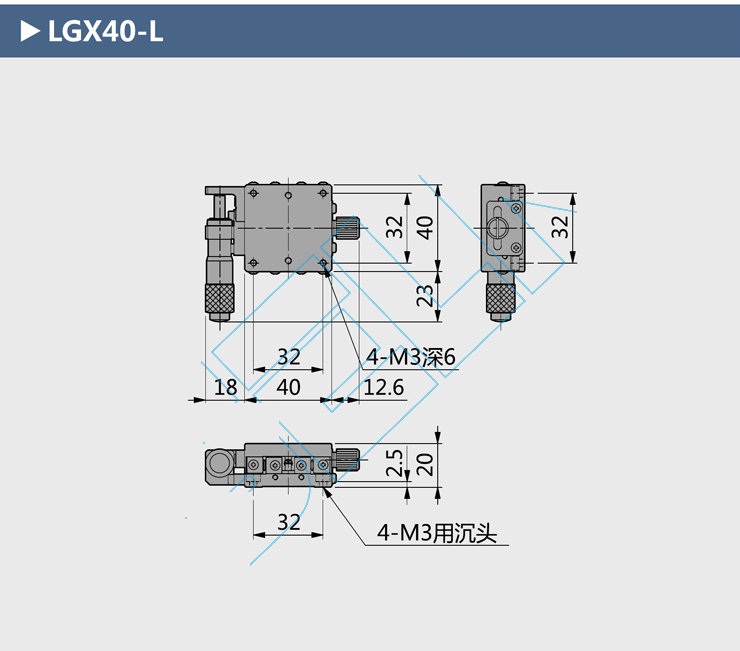

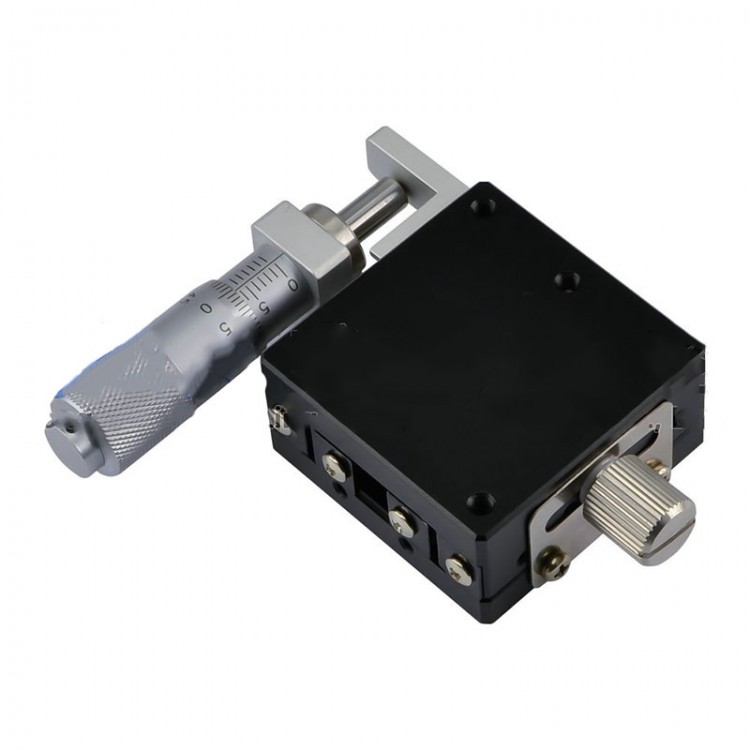

X Axis Micrometer Manual Displacement Platform Steel Ball Stage Sliding Table 40x40mm LGX40-L

Specifications:
- Model: LGX40-L
- The direction of movement: X-axis
- The table size: 40*40mm
- Material: Aluminum
- Table thickness: 20mm
- Travel: ±6.5mm
- Load: 19.6N(2kgf)
- Accuracy: 0.01mm
- Movement parallelism: <=0.02mm/6mm
- Parallelism: 0.03mm
- Weight: 0.13kg

Package Contents:
- 1 x Manual Displacement Platform
