xArm UNO 6DOF Robot Arm Mechanical Arm (Assembled) w/ Secondary Development Sensor Kit for Arduino

Availability: In stock, usually dispatched in 1 business day

  • Price:$368.59
  • Price in reward points: 3686 Reward Points: 37
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $361.22 $353.85 $342.79 $328.05 Contact US
Quantity:
xArm UNO 6DOF Robot Arm Mechanical Arm (Assembled) w/ Secondary Development Sensor Kit for Arduino

Advantages:

- Support for Arduino programming
- Sensor kit with UNO R3 and UNO R3 expansion board
- Provide 10 function games for the robot kit
- Provide detailed tutorials and codes
- Support wireless handle control, APP and mouse control

Description:
xArm UNO includes xArm 1S robotic arm and sensor expansion kit. The desktop robotic arm can perform various gripping and sorting functions. Sensor development kit includes glowing ultrasonic sensor, color sensor and etc. With provided UNO R3 and UNO R3 expansion board, you can carry out secondary development through programming for Arduino.

Features:

- Robotic arm supports wireless controller, APP and mouse control
- Provide 10 function games for robotic arm and development kit for Arduino
- Detailed tutorials and provided codes are friendly for using
- Sensor kit with UNO R3 and UNO R3 expansion board support for Arduino programming

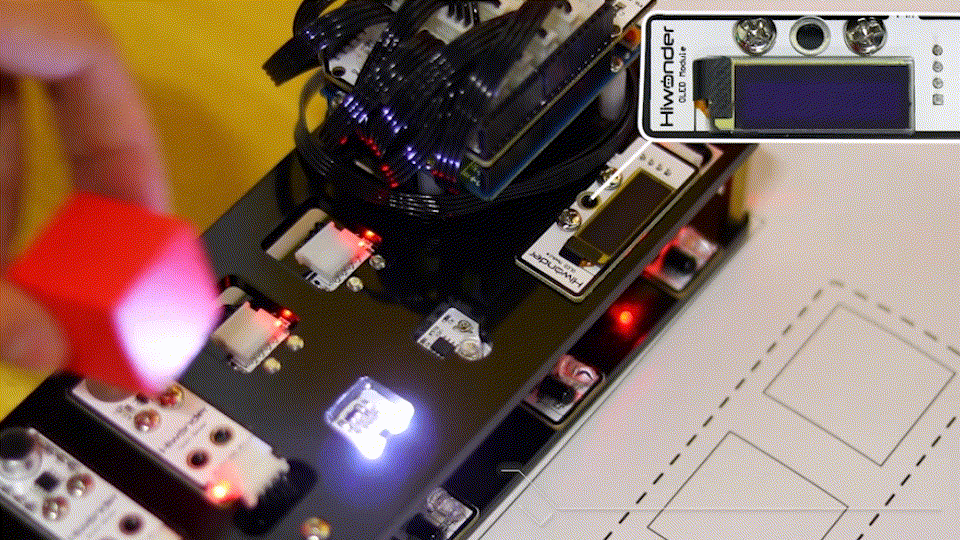

- Color Identify: Program color sensor to detect the color of blocks, and then display the detected result on the OLED screen

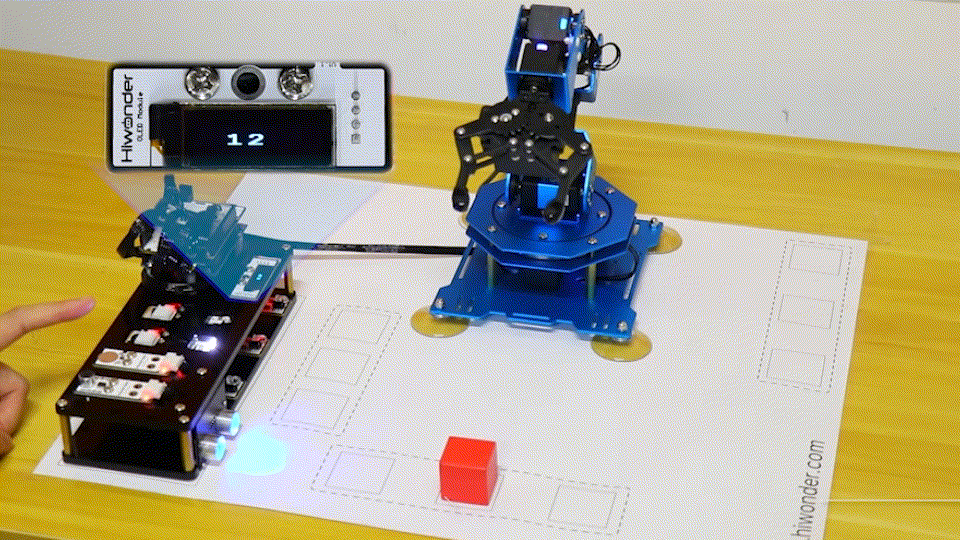

- Password Lock: Setting password with the touch sensor then robotic arm will transport the object. It will take back the object when the password entered again

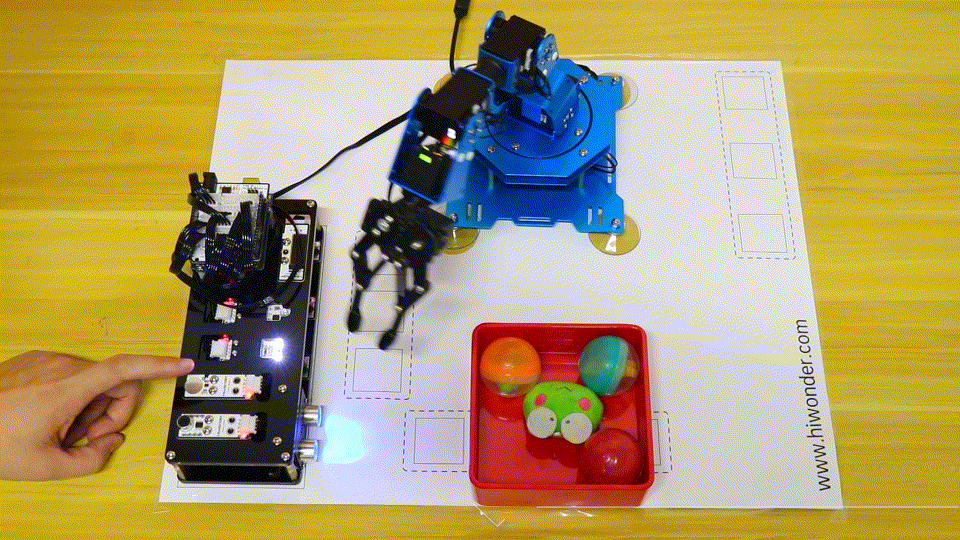

- Claw Machine: Set robotic arm to keep rotating left and right. Aiming at the movement and touch the sensor promptly to grip and pass the target

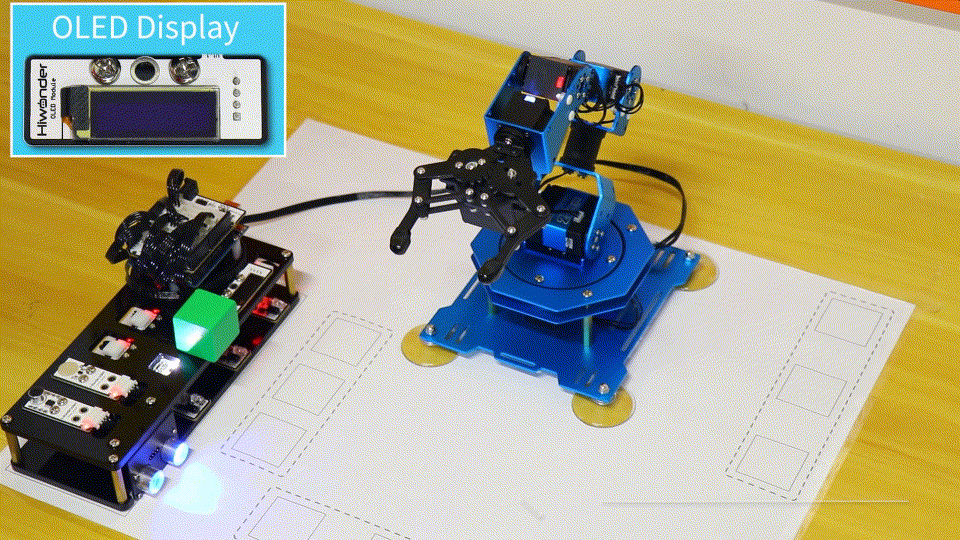

- Color Sorting: Program light sensor to detect whether there is a object. If the object is detected, robotic arm will pick it to identify the color, and then sort to the corresponding position

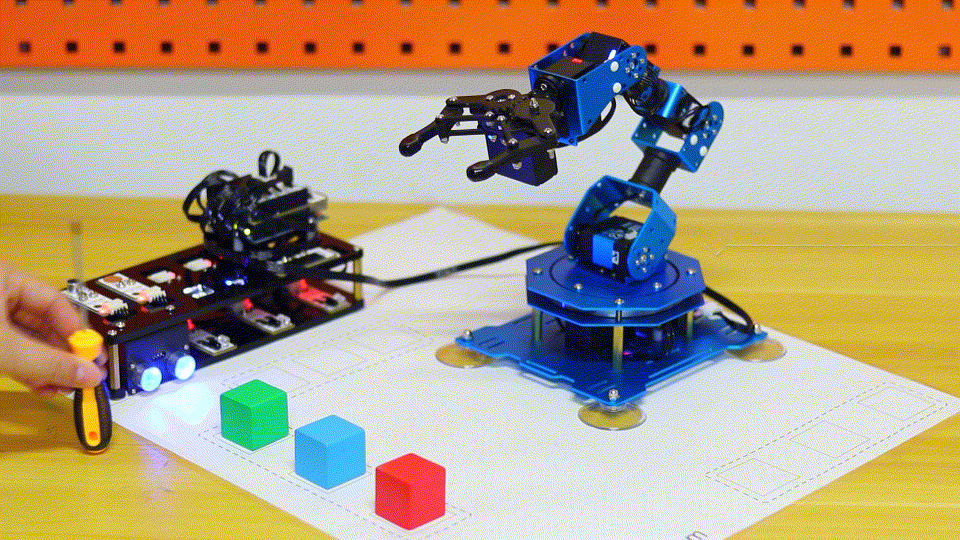

- Sound Control: Sound sensor receives sound signals and detects the intensity. Program robotic arm to pick up objects in different position according to the detected result
- Touch Sensor: According to the number of touches detected by touch sensor within a certain period of time, robotic arm will transport the object
- More functions: Distance measurement; grab at a certain distance; automatic sorting; and light sensitivity
- Robotic Arm Control Methods: PC software programming, APP programming, and offline manual programming
- With core CPU for ARM, built-in 4.0 Bluetooth module and 16M memory, robotic arm can save 1020 actions for each group. The controller has built-in serial communication port

Specifications:
- Robot size: 154 x 140 x 426mm/6.1 x 5.5 x 16.8"
- Material: aluminum alloy and surface sandblasting and oxidation
- Robot DOF: 5DOF + gripper
- Robot power supply: 7.5V 6A DC power adapter
- Servo: single shaft/LX-15D/LX-225 intelligent bus servo
- Control method: for iOS/Android mobile APP/for PS2/mouse/PC software

Note:
- It is assembled and ready to use.



Senor Development Kit for Arduino


UNO R3 Controller
