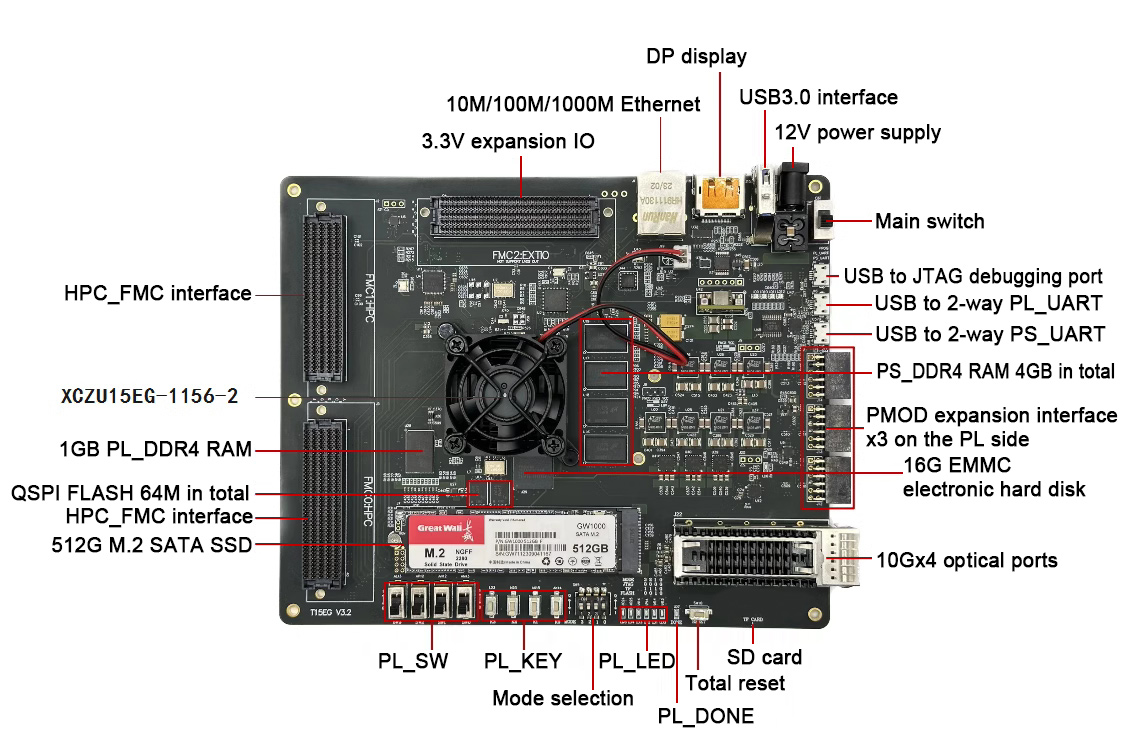

XCZU15EG MPSOC Development Board 14-Layer PCB with FMC HPC Used for Software Defined Radio Purpose
Description:
The board is made of 14-layer PCB. The board is TU872 and its thickness is 2mm.
Boot Mode:
* The on-board USB-to-JTAG module enables JTAG boot
* Dual-way Quad-SPI flash memory (online programming via JTAG)
* Boot from TF/SD card (programming via card reader)
Memory:
* 64-bit 4GB DDR4 connected to PS
* PL is connected to 1200MHz/2400Mbps DDR PL 512MB DDR4 component memory (256Mbx16 device), i.e. 1GB 16-bit
* 8KB IIC EEPROM
* Dual 64MB Quad SPI flash memory can be used for booting
* TF/SD card slot
* On-board EMMC 32G memory
* 512G M.2 SATA SSD
Control & I/O:
* 4 PL buttons
* 4 PL DIP switches
* 6 PL LEDs
* Start the mode DIP switch
* Keys for global reset
Extended Connectors:
* 2 x FMC-HPC (FMC-LPC compatible) connectors (16 GTH transceivers, 64 differential user-defined signals)
* 1 x FMC-LPC connector
* 2 x PMOD PL external expansion ports
* 1 x PMOD PS external expansion port
Communication Networks:
* 10/100/1000Mb/s RGMII communication. Series GMII interface supports 1Gb/s SGMII interface
* QSFP ports can be divided into four separate optical ports. The rate is greater than 10Gbit/s
* Two PS UART-to-USB bridges
* Two PL UART-to-USB bridges
* RJ45 Ethernet connector
* DP monitor interface
* USB HOST interface can be connected to a USB drive and a keyboard and a mouse
Clock scheme:
* CDCM6208 programmable clock, the following clocks are supplied:
33.333M as the input clock for PS.
26M as a clock for the USB 3.0 interface.
27M is used as the clock of the DP port.
125M as a clock for SATA.
74.25M and 100M as user PL clocks
* In addition, there are two specialized differential crystal oscillators:
156.25M is provided with GTH clock for 10G optical port communication.
200M is provided to the PL and can be used as a reference clock for PL DDR4 or as a clock for other PLs.

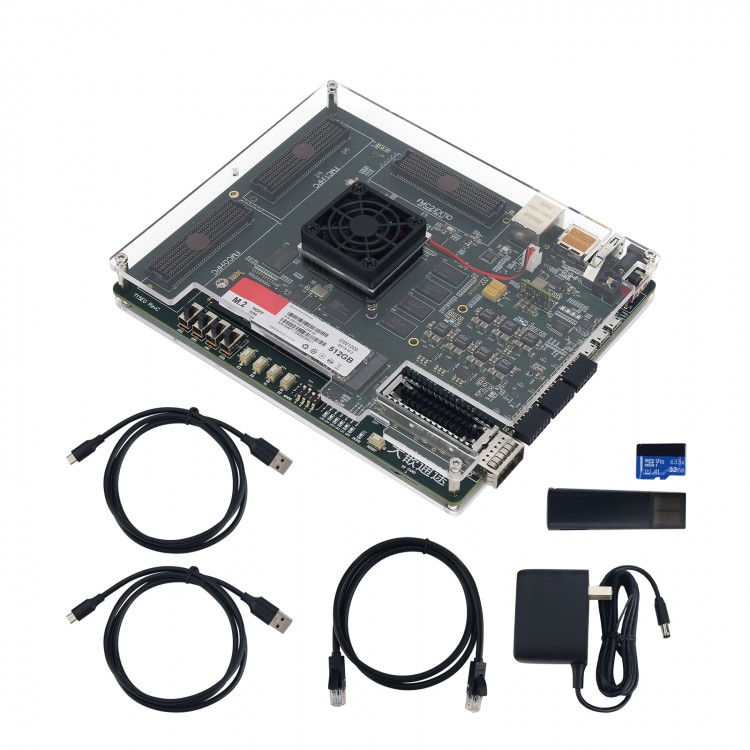

Package Included:
* 1 x Development board motherboard
* 1 x 512G M.2 SATA SSD
* 1 x 12V power adapter
* 1 x RJ45 Gigabit Ethernet cable
* 1 x 32G TF card
* 1 x SD/TF card reader
* 2 x MICRO USB cables
Packaging Details:
* G.W.: 0.5kg
