XD-3420 30W Permanent Magnet DC Motor High-Speed Micro Motor (24V 7000r/min) with Threaded Shaft

Availability: In stock, usually dispatched in 1 business day

  • Price:$31.66
  • Price in reward points: 317 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $31.03 $30.39 $29.44 $28.18 Contact US
Quantity:

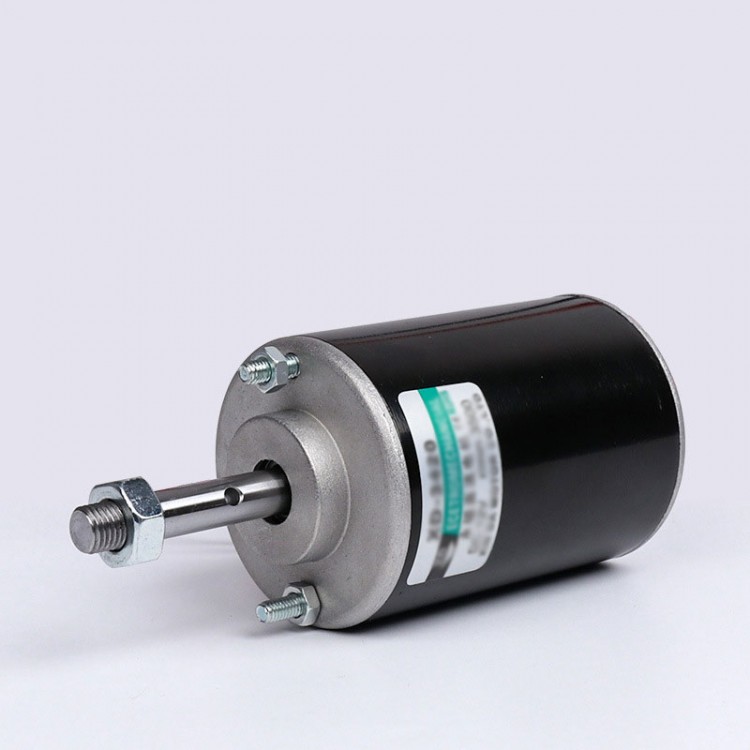

XD-3420 30W Permanent Magnet DC Motor High-Speed Micro Motor (24V 7000r/min) with Threaded Shaft

Features:

* Pure Copper Coil: Made with pure copper wire for low heat generation, excellent conductivity, stable performance, and long service life.
* 2200GS Magnetic Tile: Ferrite permanent magnets have a small temperature coefficient, offering excellent thermal stability at high temperatures, high coercivity, high magnetic energy product, high efficiency, and low dynamic loss.
* Ball Bearing: Made of high-grade steel, ensuring smooth operation, low noise, high ductility, and a low friction coefficient.

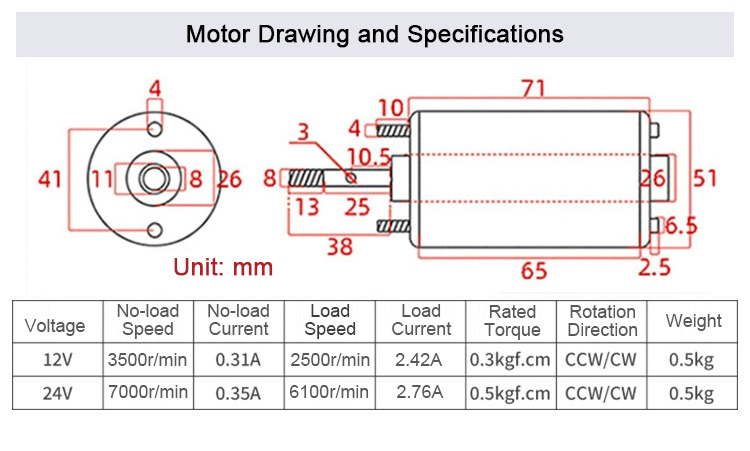

Specifications:
* Model: XD-3420 (Threaded Shaft)
* Voltage: DC 12V/24V
* Speed: 3500RPM/7000RPM
* Power: 30W

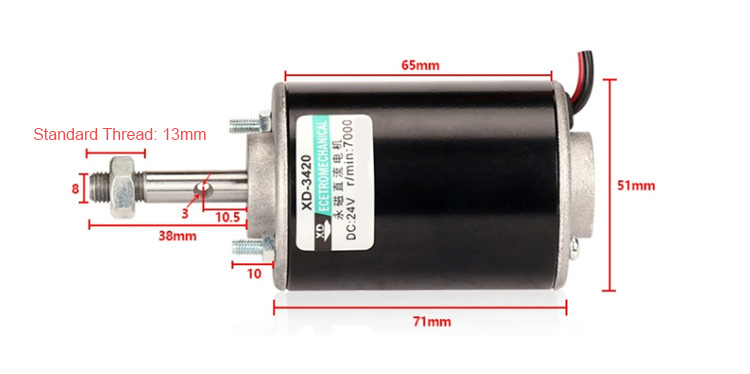

* Output Shaft Dimensions: 8 × 38mm
* Weight: 500g
* Reversible Rotation: Yes
* Speed Adjustable: Yes

Packing List:
* 1 x DC Motor

Packaging Details:
* Weight: 1.1kg
