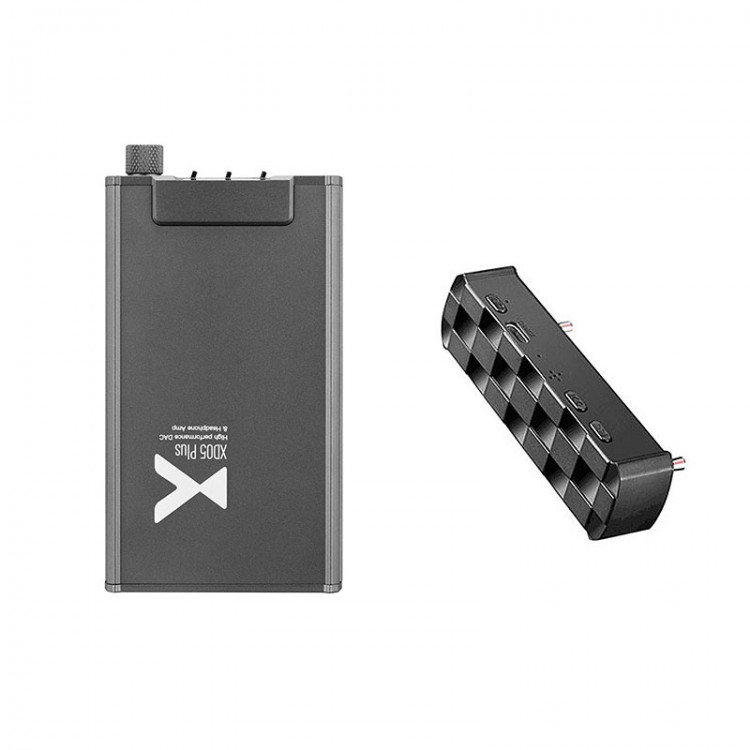

XD05 Plus Black High Performance DAC & Headphone Amp + 05BL PRO Bluetooth Digital Turntable Kit
Package Included:
- 1 x Set of XD05 Plus + 05BL PRO
XD05 Plus:
Advantages:
- A portable desktop amplifier
- 1000mW output power at 32Ω
- 13H endurance time
- For XMOS XU208
- AK4493EQ
- Dual interchangeable op amps
- Optimized circuit
- Support 05BL PRO Bluetooth module
- Multiple input ways
Features:
- Multi-scenario use: No matter where you are, you can enjoy the high quality music
-
1000mW output power: 1000mW output power(32ohms load), comparable to
desktop headphone amplifier, easy to drive high impedance headphones
-
Powerful battery: Built-in 3.8V/5000mAh rechargeable li-polymer
battery, long playback time. ≥13H (USB IN), ≥21H (COAXIAL/OPTICAL),
≥40H(AUX IN)
- Professional high performance chips: For XMOS XU208
and AK4493EQ chips, work in asynchronous transfer mode, support up to
32Bit/384KHz and DSD256 signal, present more musical details
-
Multiple audio input ports: Support USB/COAXIAL/OPTICAL/AUX IN, can be
connected various multimedia devices, all digital ports support DSD
-
Dual Crystal Oscillators: Adopts two active Low Phase Noise Crystal
Oscillators, work with CPLD, reducing Jitter to undetectable level
-
Professional HIFI power supply system: Built-in filter circuit and
high-efficiency power conversion circuit, optimize LDO circuit through
power supply design, and supply power to decoder chip, LPF, amp, for
XMOS, digital receiver chip independently
- Dual interchangeable op
amp: Its op amps can be replaced by yourself, no soldering needed.
Different chips bring different sound quality to meet different personal
preferences (Please purchase two op amps in the same model or one dual
op amp to replace them by yourselves)
- Connected to 05BL PRO
Bluetooth module, become to a Bluetooth DAC amplifier: Connected to 05BL
PRO, let your XD05 Plus become a Bluetooth DAC amplifier. Your wired
amplifier system is now fully capable of playing wireless Bluetooth
music
Specifications:
- Size: 139 x 75.2 x 22.8mm
- Net weight: 0.29kg
- Applicable OS: for Win XP, Vista, Win 7/8/10, Mac OS X, IOS, and Android system
- Output power: 1000mW (32Ω load)
- Frequency response: USB/coaxial/optical fiber: 20Hz~20kHz(±0.5dB); AMP: 10Hz~100kHz(±0.5dB)
- Sampling rate support:
* USB: PCM: 16-32bit/44.1-384kHz; DSD: DOP/NATIVE mode, DSD64-256; DXD: 24-32bit/352.8-384kHz
* Fiber/Coaxial: PCM: 16-24bit/44.1-192kHz; DSD: DSD64 (DOP)
- Harmonic distortion: USB/coaxial/optical/: 0.0016% at 1kHz; AUXIN: 0.0009% at 1kHz
- Signal to noise ratio: 117dB Separation: ≥75dB
- Battery capacity: 5000mAh
- Life time: USB IN≥13H; AUX IN≥40H; coaxial/optical fiber≥21H
Note:
- CHARGE type-c port is for charging only, not for USB digital input.
05BL PRO:
Features:
- Transform XD05 Plus into a Bluetooth DAC & headphone amplifier
- Support for APTX, APTX_LL, APTX_HD, and LDAC. Signal transmission for high quality music
-
Bluetooth 5.0 for real time display: 24Mbps transmission speed at
maximum, two times faster than Bluetooth 4.2 LE. Feel easy to transmit
lossless CD-quallity signals. Fast wireless transmission and ultra-low
signal delay relieve listeners from terrible experience
- CSR8675 chip
- Support HD format
-
For IOS/Android: Compatible with music app. Support various video apps,
games, extending HiFi enjoyment beyond traditional music and liberating
listeners from the restrictions of earphones
- Stable connection
with 10M communication range: Signal reaches far to your living room.
Liberate listeners from the inconvenience of taking off earphones even
in case of pouring a cup of water and liberate them from the restriction
of earphone cables
- Battery endurance time 15-hour, 2-hour fast charge
- Independent button for offline operation
-
Get wireless audio problems done once for all. Stable connection wit
ultra-low delay. Wireless connection, lossless audio sound
- Every
endeavor is made for better experience. Integrated design and model for
harmony and beauty. Protective component for volume switch to protect
listeners from hearing impairment. Check power status on your cellphone
and keep yourself known well about battery life. Display button enables
off-cellphone operation. Multi color light indicates bluetooth audio
code. CVC noise cancellation technology
Product Parameters:
- Bluetooth Version:5.0
- Support Bluetooth Audio Formats: For SBC, AAC, APTX, APTX_LL,APTX_HD, and LDAC
- Maximum Communication Range: About 10 meters
- THD+N: 0.00087%
- Output level: 0.5Vp-p
- Battery Life: ≥15 hours
- Charging Time: >2 hours above 5V/0.5A
- Size: 75*22.8*14.8 (29.3)mm
- Net weight: 31g
