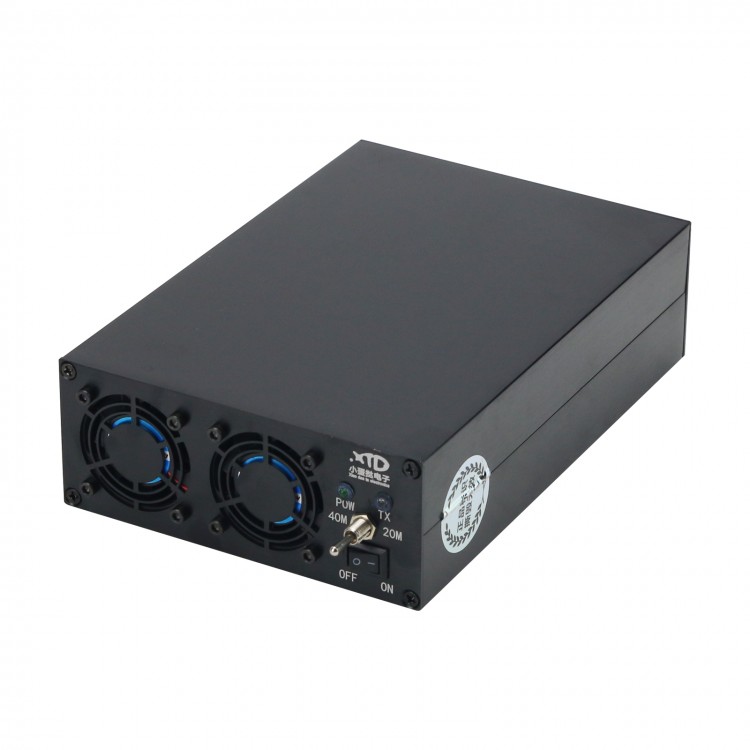

XDT-PA100X 100W 1.8MHz to 30MHz HF Power Amplifier Module Designed for Other HF Transceiver Models

XDT-PA100X 100W 1.8MHz to 30MHz HF Power Amplifier Module Designed for Other HF Transceiver Models

Features:
* HF Power Amplifier Frequency Range: 1.8 to 30 MHz
* Rated Power: 70W. Maximum Power: 100W
* Power Supply: 13.8V
* Input Power: 1W → Output 30W
* Input Power: 5W → Output 100W
* Suitable for boosting the transmission power and improving communication performance of QRP radios such as Xiegu G90S, X6100, IC-705, FT-818 and KX3
* Equipped with 3 seven-stage low-pass filters with automatic switching

Specifications:
* Frequency Range: 1.8 MHz ~ 30 MHz
* Supported Modes: A1A (CW), J3E (SSB), A3E (AM), F3E (FM), F7M (C4FM), and F1B (FSK)
* Power Supply Voltage: DC 12V ~ 16V
* Power Supply Current: Standby 0.2A, Transmit 15A
* Input VSWR: < 2.0
* Input/Output Impedance: 50 Ω
* Through Loss: Better than 0.5 dB
* Power Gain: 15 dB (±2 dB)
* Max Input Power: 10 W
* Max Output Power: 100 W at 7 MHz / 14 MHz; 70 W at 21 MHz / 28 MHz
* Low-Pass Filter Frequencies: 33 MHz, 18 MHz, 9 MHz
* Harmonic Output: Even-order: better than -50 dB; Odd-order: better than -30 dB
* Spurious Suppression: Better than 40 dB
* Input/Output Connectors: SL161-K
* Dimensions: 200 mm (L) × 120 mm (W) × 50 mm (H)
* Weight: 900 g
* Operating Temperature: 0°C ~ 50°C
* Storage Temperature: -20°C ~ 70°C
* Storage Humidity: Better than 55%
* PTT Trigger Level: +VCC-2V (Low Trigger), GND+5V (High Trigger)
* PTT Trigger Current: 2 mA

Warning:
* Output must not be open-circuited or short-circuited. VSWR must not exceed 2.0.

Package Included:
* 1 x Power Amplifier
* 1 x User Manual
* 1 x Power Cord
* 1 x Sync Trigger Cable

Attention:
* There are two kinds of sync trigger cables for Xiegu G90 and X5105. Type 1 cable allows direct connection and there is no need to connect to CE-19 data interface expansion board. Choose automatic switching package to support automatic frequency and band switching. Type 2 is a 3.5mm cable which must be used with a CE-19 expansion board to support digital modes such as FT8. Please inform customer service of the type of trigger cable you want while purchasing. Thank you!

Packaging Details:
* Weight: 0.9kg

Note:
* Please see that the wiring of your transceiver and the amplifier is correct to avoid damage.
