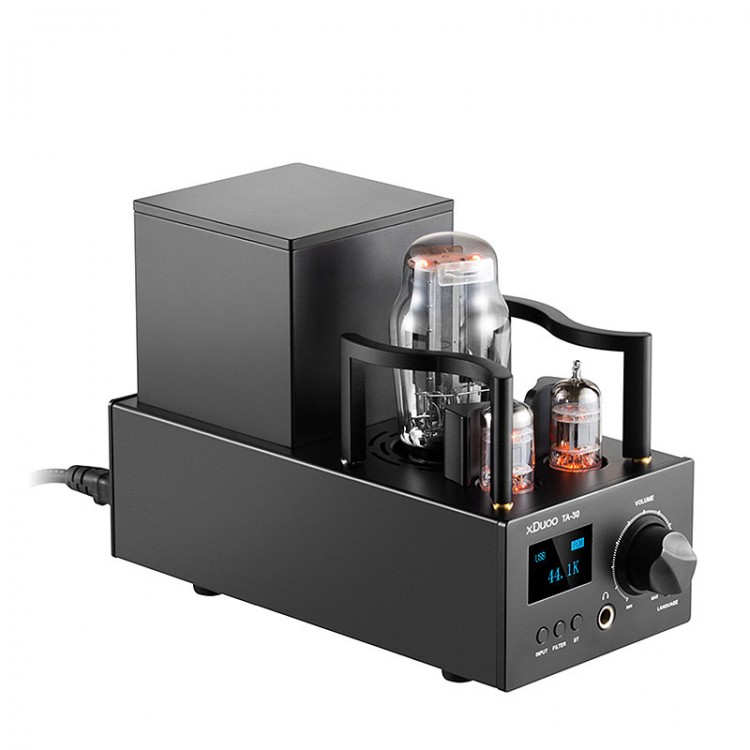

Xduoo TA-30 Tube Headphone Amplifier Tube Amp High Fidelity Desktop Headphone Amp USB DAC 3000MW

Xduoo TA-30 Tube Headphone Amplifier Tube Amp High Fidelity Desktop Headphone Amp USB DAC 3000MW

Advantages:
- ES9038Q2M
- DSD512
- PCM 32Bit/768kHz
- Tube rectification
- Tube amplifier
- Enthusiast customized capacitors
- USB DAC
- Coaxial/Fiber
- HD Bluetooth

Features:
- High-fidelity desktop tube amp amplifier
- 3000mW output matching professional earphones
- Multiple interfaces are fully adapted to various front ends: USB DAC decoding is convenient for connection. Support USB decoding for computers, mobile phones (for Apple/Android), tablets, HIFI players and other devices
- It adopts the receiving chip for XMOS XU208, which supports up to PCM 32Bit/768kHz, DSD512. (Attention: Computer USB decoding, up to PCM 32Bit/768kHz, DSD512. For Apple/Android phone/tablet USB decoding, up to PCM 32Bit/384kHz, DSD256)
- Coaxial/optical decoding professional docking: Supports coaxial/optical decoding of various desktop and portable players. Adopt AK4118 receiver chip, support up to PCM 24Bit/192kHz, DSD64 (DOP mode)
- Bluetooth 5.0 decoding, stable transmission. Using Bluetooth 5.0 technology, using CSR8675 Bluetooth receiving chip, support for SBC, AAC, aptX, aptX_LL, aptX_HD, LDAC format transmission
- Selected materials, keep improving. Imported chips, customized capacitors, and professional circuit design ensure high-fidelity sound quality. The new American ES9038Q2M DAC chip, built-in time domain jitter remover, its signal-to-noise ratio reached 129dB, and the true loss reached -120dB. DAC built-in 7 kinds of PCM filters, 1 kind of DSD filter is adjustable
- Dual active crystal oscillator, CPLD data shaping. Using dual active low phase noise clock crystal oscillators to achieve accurate digital-to-analog conversion for different sampling rates. Use CPLD for data shaping to achieve precise clock synchronization and reduce jitter
- Audiophile capacitors: Use capacitors for ELNA SILMIC (II) dedicated to audiophiles as coupling capacitors, with transparent and sweet sound. Capacitors for NICHICON FW (M) specially designed for audio enthusiasts are used as the main filter capacitor. The sound is soft, warm and soft, and the high-frequency sound is gorgeous. Use customized metallized polyethylene film capacitor as the output coupling capacitor of tube

Specifications:
- Power Supply: AC220V /110V
- Screen: 1.3-inch OLED
- Compliant OS: For Win7, Win8, Win10, Mac OSX, IOS, Android system
- Output Power: 3000mW (32Ω load)
- Frequency Response: USB/OPT/COA/BT: 20Hz~20KHz(±0.5dB); AMP: 10 Hz~100kHz(±0.5dB)
- Sampling Rate Support of USB IN: PCM: 16-32bit/44.1k-768kHz; DXD: 24-32 bit/352.8k-384kHz; DSD: 64-512
- Sampling Rate Support of OPT/COA IN: PCM: 16-24bit/44.1K-192kHz; DSD: DSD64 (DOP)
- Support Format of Bluetooth: For SBC, AAC, aptX, aptX HD, aptX LL, LDAC
- S/N: 110dB (A weighted)
- THD+N: 0.5% at 1kHz
- Crosstalk: ≥ 65dB
- Size: 29x11x17cm
- Net weight: 3.0KG

Package Included:
- 1 x Set of Tube Headphone Amplifier
