Xduoo XD05 Bal Hi-Definition Balanced DAC & Headphone Amplifier Bluetooth 5.0 1000mW ES9038Q2M x 2

Xduoo XD05 Bal Hi-Definition Balanced DAC & Headphone Amplifier Bluetooth 5.0 1000mW ES9038Q2M x 2

Advantages:
- Flagship DAC ES9038Q2M*2
- New CPLD, unified clock, reduce jitter
- Hard solution DSD512 for XMOS XU208
- 1000mW power at 32Ω, fully balanced circuit architecture
- 4-way balanced analog potentiometer
- Bluetooth 5.0, support for Sony LDAC HD
- 6.5mm single-ended, 4.4mm balanced headphone jack
- Full interface: coaxial/optical/USB/AES balanced

Features:
- Complete details, real sense of space. XD05 Bal has been upgraded to 2 flagship chips, which doubles the conversion and processing of digital music signals. Perfect for your smartphone, iPad or computer, MP3, DSD
- Restore the real sound, make the music full of appeal. Compared with XD05 Plus, XD05 Bal total harmonic distortion is reduced to 0.0009%. Through dual-chip active low-phase noise crystal oscillators, in conjunction with the new FPGA, the data shaping process achieves a unified clock
- 1000mW thrust: balanced output of 1000mW power, the headphone unit's diaphragm is fully vibrated, and the detailed loudness of the music overtone column is improved. Even with the use of HD650 300Ω high-impedance headphones, you can enjoy the joy of music in good timing, timbre, clarity, pitch and rhythm
- Full-scenario application, unblocked music. A new set of professional AES balanced digital input and 4.4 balanced output ports have been added, allowing you to balance globally from digital input to analog output. Can be used with HD660s balanced headphones, the left and right separation, the sound field performance is significantly improved
- Internal Bluetooth 5.0, good sound quality for listening to songs, and no video freezes. Built-in Bluetooth 5.0 to meet the low-latency needs in music, games, and video, so that wireless can also enjoy high-quality sound quality
- Customize sound effects to create personal preferences. Continuing the structure of the XD05 series for op amps, according to the user's personal preferences, with different earphones, customize your own personalized sound and music style
- 4-link balanced analog potentiometer, exquisite hand feel, bid farewell to pops. The built-in red 4-piece balanced analog potentiometer is not afraid of popping sound caused by accidental touch. Compared with digital volume adjustment, physical adjustment has almost zero damage to sound quality
- Two power supply methods: Built-in 5000mAh lithium-ion polymer battery provides continuous use time of not less than 9H. For indoor use, users can set through EXTE, use a power bank or USB power supply for external power supply, which greatly increases the use time without losing power Reduce the lack of music dynamics
- OLED screen display status is clear at a glance. Through the orange OLED screen, you can know the music bit rate, connection mode, power display, and DAC filter working status in real time even in the dark

Specifications:
- Battery: Built-in 3.8V/5000mAh rechargeable lithium polymer battery
- Display: 0.91-inch OLED screen
- Applicable system: For Win 7/8/10, Linux, Mac OS X, IOS, Android system
- Frequency response: USB/SPDIF: 20Hz~20kHz (±0.5dB); AMP: 10Hz~60kHz (±0.5dB)
- Sampling rate support:
* USB: PCM 16-32bit/44.1-768kHZ; DSD DOP/NATIVE mode, DSD64-512
* AES/optical/coaxial: PCM 16-24bit/44.1-192kHz; DSD DSD64 (DOP)
- Bluetooth support formats: For AAC, SBC, APTX, APTX_LL, APTX_HD, LDAC
- Gain: +6/15dB
- Endurance time: USB IN ≥29H; AES/coaxial/optical fiber ≥15H; AUX IN≥24H
- Charging time: ≤5 hours (fast charging 1.2A); ≤11 hours (slow charging 500MA)
- Volume: 13.0x7.5x2.2cm
- Net weight: 0.29kg

Single-ended headphone port output parameters:
- Output power: 1000mW (32Ω load)
- Output level: 32Ω: single-ended 5.7V; 300Ω: single-ended 6V; 600Ω: single-ended 7V
- Harmonic distortion: 0.0015% at 1kHz
- Signal to noise ratio: 117dB
- Separation: ≥72dB

Balanced headphone port output parameters:
- Output power: 1000mW (32Ω load)
- Output level: 32Ω: balanced 5.7V; 300Ω: balanced 12V; 600Ω: balanced 14V
- Harmonic distortion: 0.0009% at 1kHz
- Signal to noise ratio: 119dB
- Separation: ≥100dB

AUX OUT output parameters:
- Output level: 2.0Vrms
- Harmonic distortion: 0.0008% at 1kHz
- Signal to noise ratio: 120dB
- Separation: ≥100dB

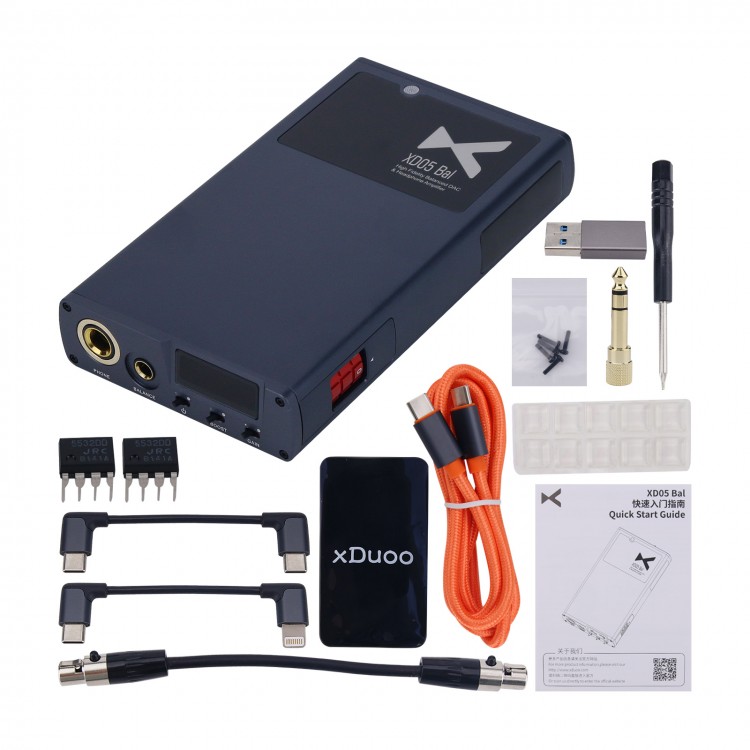

Package Included:
- 1 x Set of DAC Headphone Amp
