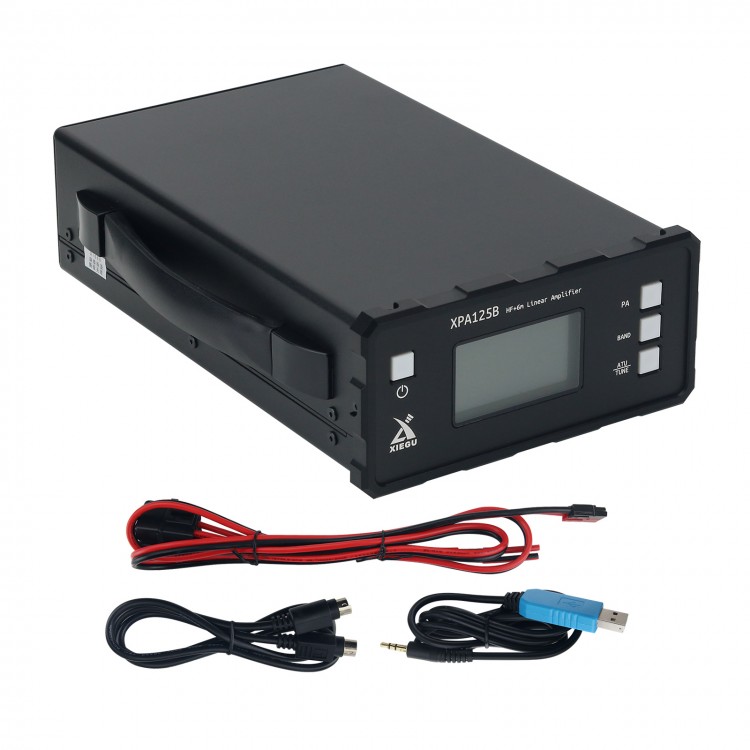

XIEGU XPA125B Power Amplifier 100W HF Integrated Radio Power Amplifier for X5105 X108G G1M G90
Description:
-XPA125 is a 100W power amplifier and ATU all-in-one machine of Xiegu series. It can quickly build a high-power short-wave transceiver with X5105, X108G, G1M, G90 and other hosts through the adapter C-19. It is also possible to quickly build a high-power short-wave transceiver with an adapter such as ICOM817 through the adapter CN-20.
-The amplifier host uses an all-solid-state CNC design, built-in perfect input and output protection functions, so that you can communicate at any time.
Specification:
Working frequency: 0.5 ~ 54MHz
Input power: ≤5W
Maximum output RF power: 1.8-30MHz≥110W; 50-54MHz≥90W
Current parameter: Standby 260mA @Max launch: 30A @ Max
ATU maximum tuning range: 14 ~ 500Ω
Working voltage: 12V ~ 14.5V DC
Machine size: 260 * 150 * 100mm (excluding knobs, handles, etc.)
Weight: 3.3 kg
Package Included:
1 x XPA125B Amplifier
Note:
XPA125 can also be connected to G90, X5105 and compatible with other Xiegu products.
