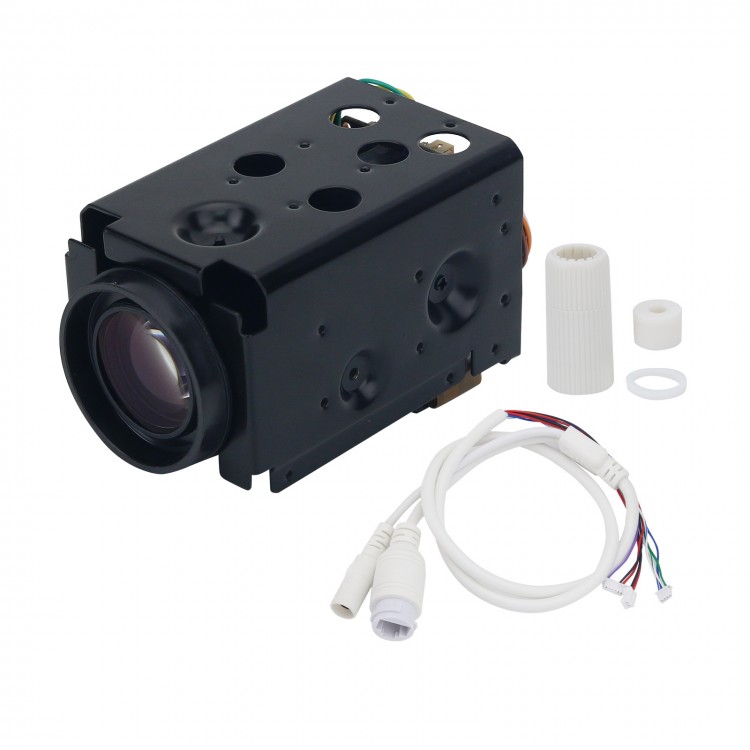

XM IVG-G5S-20X 5MP 20X Optical Zoom Camera Module Automatic Focus IMX335 for SONY + GOKE GK7205V300

XM IVG-G5S-20X 5MP 20X Optical Zoom Camera Module Automatic Focus IMX335 for SONY + GOKE GK7205V300

Features:
- Support humanoid detection and face detection; Support for customization of other smart functions
- 5MP HD resolution, black illumination and clear and delicate image
- Support 2D/3D noise reduction and digital WDR
- Advanced H.265+ (compatible with H.265/H.264) video compression technology, ultra-low bitrate, and high-definition picture quality
- Built-in 4.7MM-94.06MM 20X optical zoom
- Supporting protocol for ONVIF, it can access third-party back-ends/platforms
- Support for cell phone monitoring (for iOS and Android)
- Support web, CMS, central management platform software for MYEYE and provide SDK development
- Support a variety of cloud technologies, realize network penetration, front-end and back-end docking, alarm information push to mobile phones and other functions

Integrated Sealing Module:
- 4.7 to 94.06mm motorized zoom lens, with IRC filter. Zoom & focus control by software (CMS or IE explorer)
- Cloud server / service is located at (3w points) XMeye.net.
- Default IP: 192.168.1.10
- Login name: admin (case sensitive, not Admin); no password

Specifications:
- Model: IVG-G5S-20X
- Image sensor: 1/2.8" CMOS for SONY
- Signaling system: PAL/NTSC
- Frame rate: 2592*1944 at 20fps
- Minimum illumination: Color: 0.0001Lux at F1.6. Black and white: 0.0001Lux at F1.6
- Electronic shutter: 1/1~1/30000 sec
- Day/Night mode: IR-CUT
- Scan system: Line-by-line
- Synchronization: Internal synchronization
- Signal-to-noise ratio: >50dB (AGC Off; Weight ON)
- Aperture control: Automatic
- Backlight compensation: On/off
- White Balance: Automatic
- Slow shutter: Yes
- Slow exposure: Yes
- Exposure mode: Automatic
- Privacy occlusion: Yes
- WDR: Yes
- Gain settings: Yes
- Screen: Flip/Mirror
- Gain control: Automatic
- Sharpness adjustment: Yes
- Focus: Automatic/Manual/One-time Autofocus
- Noise reduction level: 0/1/2/3/4/5
- Zoom speed: 2S
- Focus control: Manual/Automatic
- Lens initialization: Built-in
- Optical zoom: 20X and 4.7mm to 94.06mm (F1.6 to F2.7)
- Minimum focal distance: 100mm-1000mm (near focus ~ telephoto)
- Number magnification: 0x
- Maximum range of observation: level 55.42.90
- Network interface: 1 x network power integrated interface, 10/100M adaptive; Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP and other network protocols
- Service functions: support WEB configuration, OSD, real-time video transmission, motion detection and IO alarm linkage front-end storage, front-end storage playback/download, motion detection and IO alarm post-center reminder and screen pop-up linkage; support JPEG image collection; support unified client remote monitoring software, for MYEYE platform and other systems; provide a complete SDK development kit
- Storage environment: -20°C to +70°C and 20% to 95%RH
- Operating temperature: -10°C to +60°C and 20% to 80%RH
- Power supply: DC9V-12V (12V recommended)
- Power: MAX 6W
- Dimensions: 87.5 x 50 x 60mm/3.4 x 2 x 2.4"
- Weight: 286g/0.6lb

Package Included:
- 1 x Camera Module
