XMOS Asynchronous U8 USB Module Card 7-Pin for AK4399/ES9018/DAC7/DAC9

XMOS Asynchronous U8 USB Module Card 7-Pin for AK4399/ES9018/DAC7/DAC9

Features:

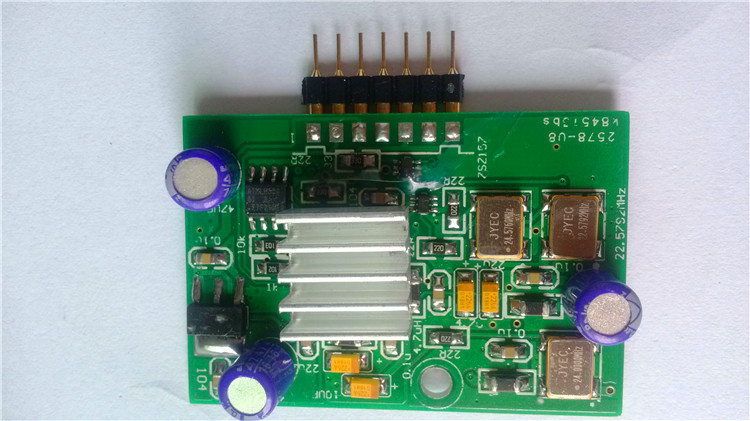

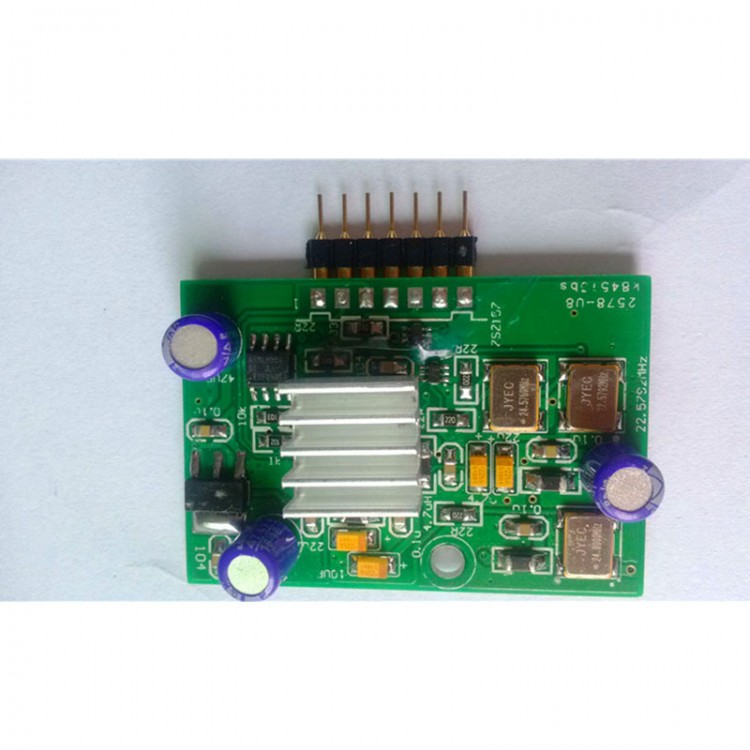

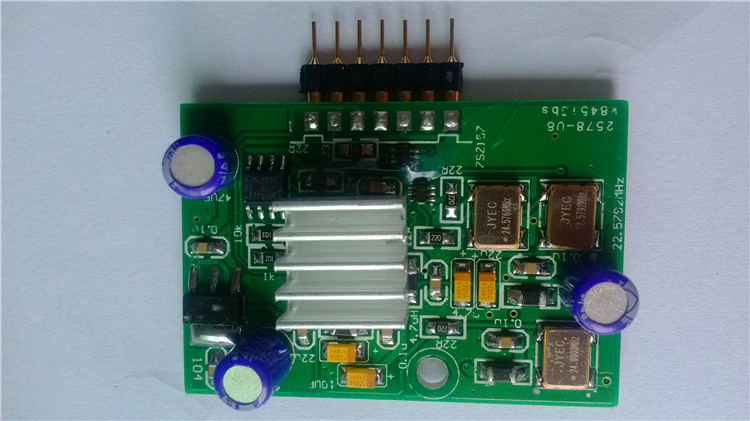

7-Pin XMOS U8 USB Module Card
- The fully linear non-public version non-DC-DC power supply is greatly enhanced. Each main power supply is equipped with an independent voltage regulator LDO and an independent capacitor array. In the same category of products, the power supply achieves the ultimate, low frequency ratio. Before the depth of the better, the analytical power is even better. The substantial increase in the number of originals also makes the production cost much higher than some cheap XMOS products.
- Optimized circuit wiring, 3 high-frequency crystal oscillators are directly placed at the closest distance from the main chip, because the frequency is very high, more than 24M, the crystal design is placed close to the XMOS chip, so it is very good to reduce the jitter Help, avoiding the radiation and loss caused by long traces.
- XMOS directly extracts power from the USB port, which has the advantage of reducing the burden on the DAC motherboard and avoiding heat dissipation;
- The circuit adopts 3 imported high-precision active crystal oscillators, with discrete precision clock shaping circuits;
- Maximum support for 192K-24BIT.

Program compatibility: WINXP WIN7 WIN8 32BIT-64BI.
Apple system does not need to download this program from the driver with the appropriate XMOS.

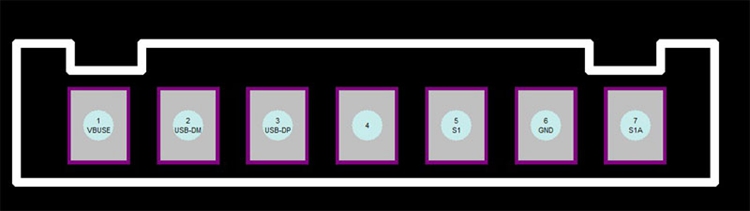

Pin Sequence:

S1 is the coaxial signal output. S1A can be left alone.

Download Drive Here:
http://pan.baidu.com/s/1o6BQeka

Package Included:
- 1 x 7-Pin XMOS U8 USB Module Card
