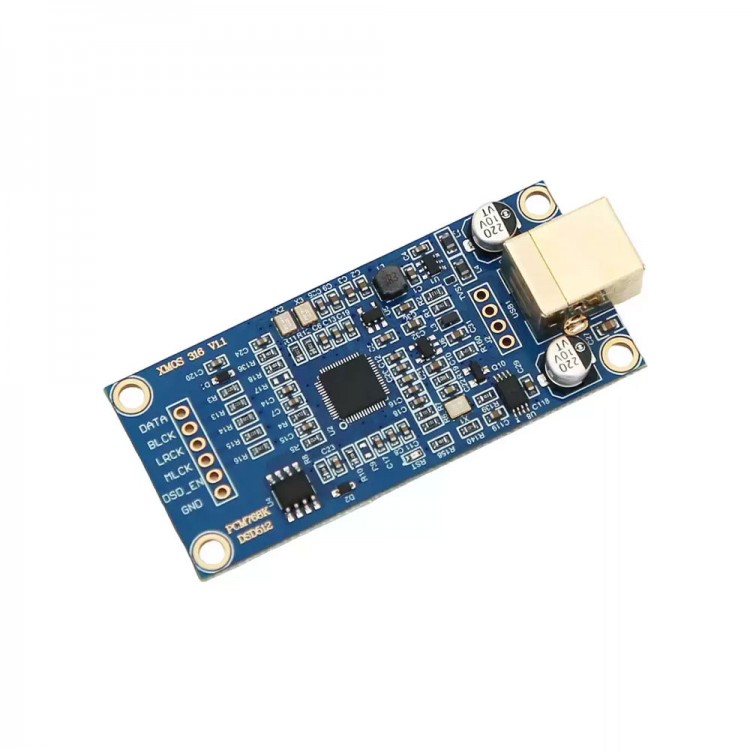

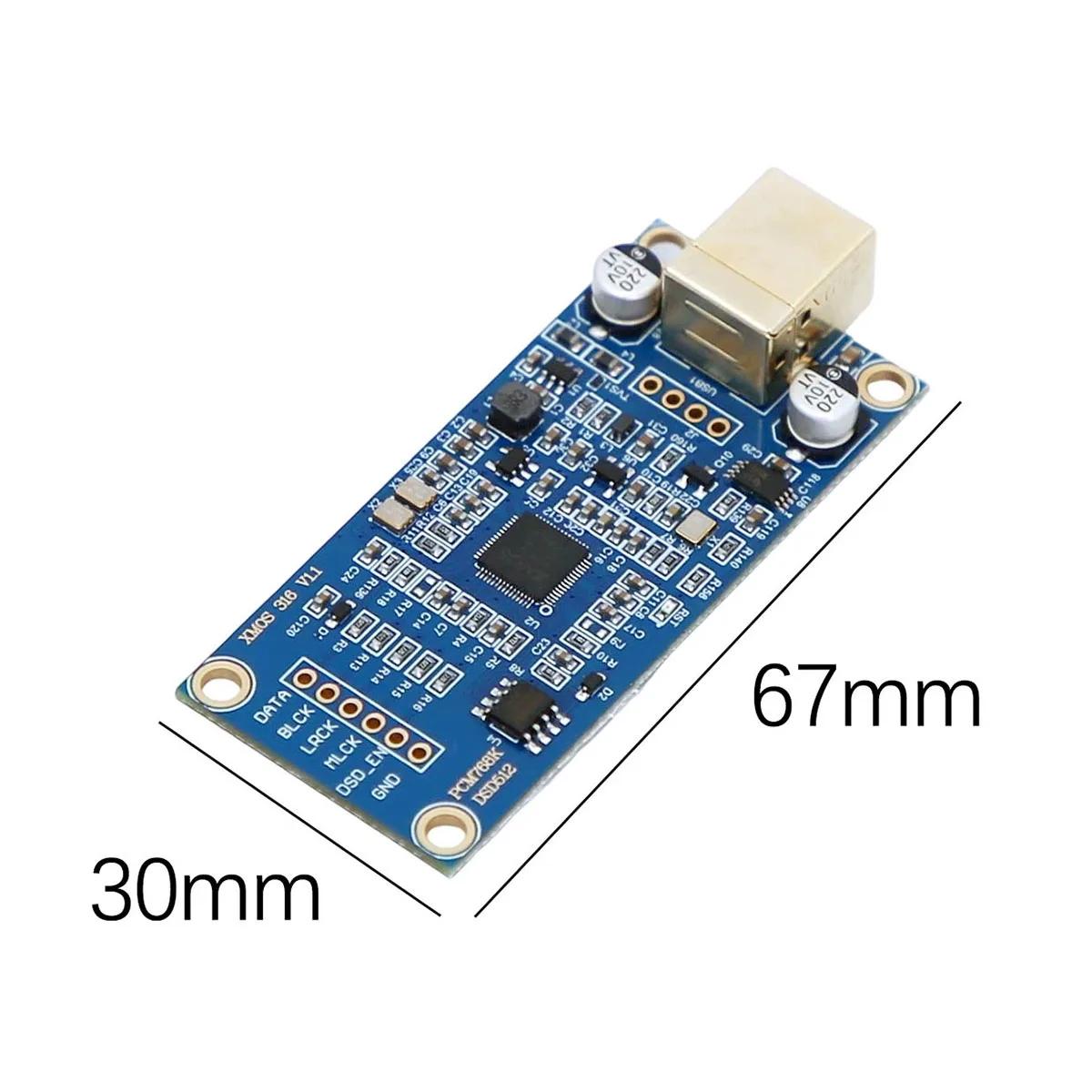

XMOS XU316 USB Digital Interface Support for DSD512 PCM768kHz/32bit Compatible with Amanero Sub Card
Description:
- Flagship level audio processing: using the latest XMOS XU-316 core chip, supporting DSD512 (22.5792MHz) and PCM 768kHz/32-bit ultra high definition audio decoding, restoring the ultimate original sound.
- Full platform drive free compatibility: Perfectly supports Daphil system drive free without bugs! Compatible with Windows 7/8/10/11 (driver required), macOS 10.6+, Linux (drive free), Android, iOS, PS5, Switch, Listen to all devices in one machine.
- Professional level circuit design: 4 layers of PCB board with gold-plated technology+3 sets of precision independent voltage regulators, effectively reducing interference, ensuring signal purity, and clock jitter as low as 75ps (typical value).
- Seamless upgrade solution: Perfectly compatible with Amanero sub card interfaces, providing high-performance upgrade solutions for your existing devices.
Specification:
- Main control chip: for XMOS XU-316
- Maximum PCM support: 768kHz/32-bit
- Highest DSD support: DSD512 (22.5792MHz)
- USB input: asynchronous transfer, Type-B interface
- Output interface: 6-pin 2.54mm spacing (standard I2S)
- Sampling rate range: I2S: 44.1kHz -768kHz
- DSD range: 2.8224MHz -22.5792MHz (DSD64-DSD512)
- Bit width support: 1-bit (DSD), 24bit, 32-bit
- Typical clock jitter: ≤75ps
- Power consumption: 5V/200mA (approximately 1W)
- PCB process: 4-layer gold-plated circuit board
Package Included:
- 1 x Digital Interface
