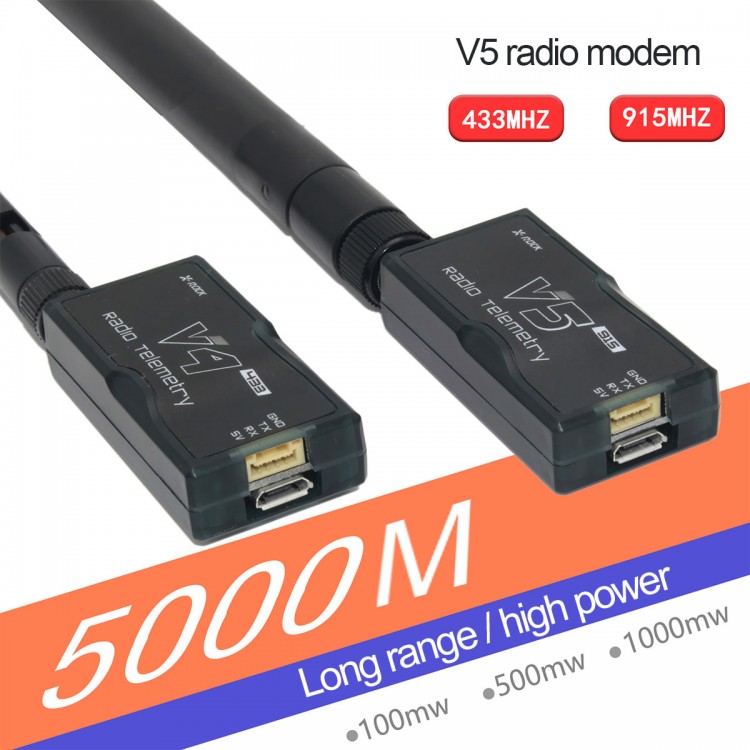

XROCK V5 433Mhz 1000mw Radio Telemetry Module Transmitter Receiver for APM2.8 Flight Control UAV Drone

Availability: Out Of Stock

  • Price:$62.58
  • Price in reward points: 626 Reward Points: 6
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $61.33 $60.08 $58.20 $55.70 Contact US
Quantity:

XROCK V5 433Mhz 1000mw Radio Telemetry Module Transmitter Receiver for APM2.8 Flight Control UAV Drone


Specifications:
- Transmitter power:1000mw
- transmitter range:5000m
- transmitter frequency:433Mhz
- Baud rate:57600 (default)
- Operating Temperature: -10 -60 dgree
- Operating Humidity: 10% RH - 90% RH(non-condensing)
- Dimension (no antenna):
- Ground Module: 63mm(L)×41mm(W)×15mm(H)
- Air Module: 49mm(L)×25mm(W)×13mm(H)
- Weight (with antenna)
- Ground Module: 44g
- Air Module: 22.5g

Power Requirement of Ground Module
- VBAT: 3.7V(LiPo)
- Battery Capacity: 800mAh
- USB Charging Voltage: 4.5~5.5V
- Charging Current: 500mA
- Operating Current: 100mA
- Standby Current: 12mA
- Working Hours: 7h(Full Power )

Power Requirements of Air Module
- Working Voltage: 3.7V~6V DC
- Emission Current: 100mA@30 dBm
- Receiving Current: 25mA
- Pin code:0008


Package included:
-  1 set XROCK V5 433Mhz 1000mw Radio Telemetry Module
