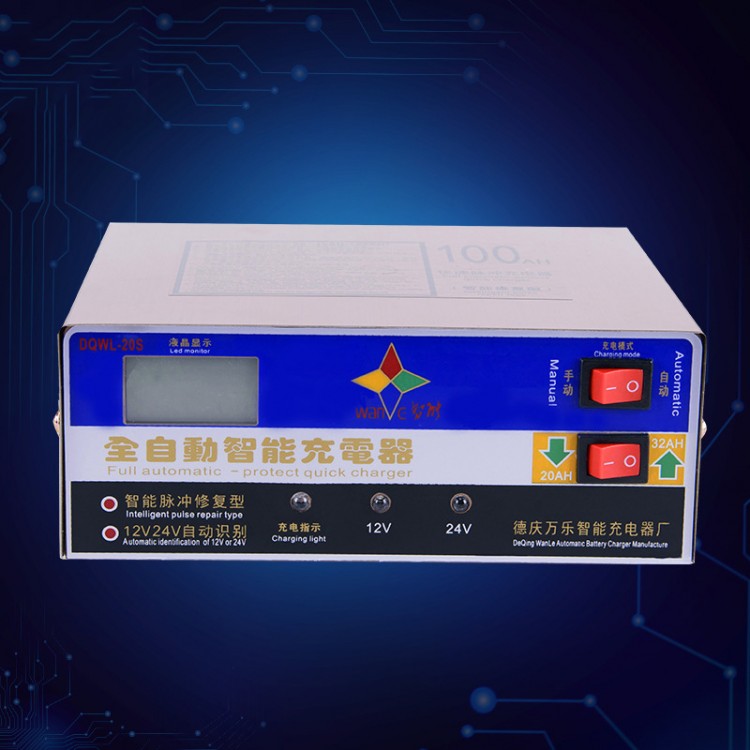

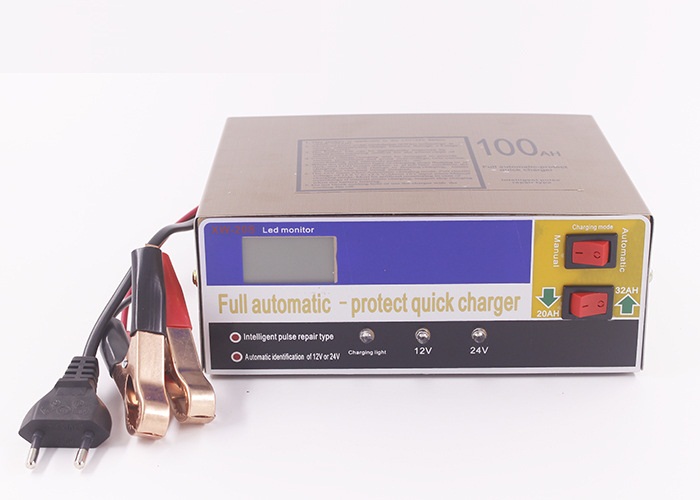

XW-20S Car Automatic Intelligent Battery Charger Motorcycle Quick Charge 150W QWL-20S

XW-20S Car Automatic Intelligent Battery Charger Motorcycle Quick Charge 150W QWL-20S

Product Description:
- WL-series switching power supply pulse quick chargers are designed and manufactured by our company based on single-voltage battery packs of 12V, 24V, 36V, 48V, 60V, 62V, 72V and 84V.
- Intelligent computer chips are adopted for whole process control with advanced technologies of pulse width modulation (PWM).This series of products feature small size, safety and flexibility, high conversion rate, stable output current, large designed volume, long-time duration, etc.
- Short circuit protection, reverse connection protection, overheat protection as well as low voltage protection is available. Therefore, constant voltage and constant current can be transformed reliably from constant voltage status into floating charge status. Hence, power waste and water loss can be reduced during charging process, and battery overheating and bubbling can be eliminated. As a result, battery life is extended greatly!

Specification:
- Model:XW-20S
- Actual power:150W
- Voltage range:130V-250V (can custom 110V voltage)
- Working frequency:50-60Hz
- Input voltage:AC220±25%50Hz
- Rated charge voltage:12V/24V
- Charging working mode:no load--constant current -- constant pressure--trickle--floating charge
- Constant current, charging current:12V 12A±10%;24V 7A±10%
- Constant voltage, charging voltage:12V 14V-14.8V;24V 27.5V-29V

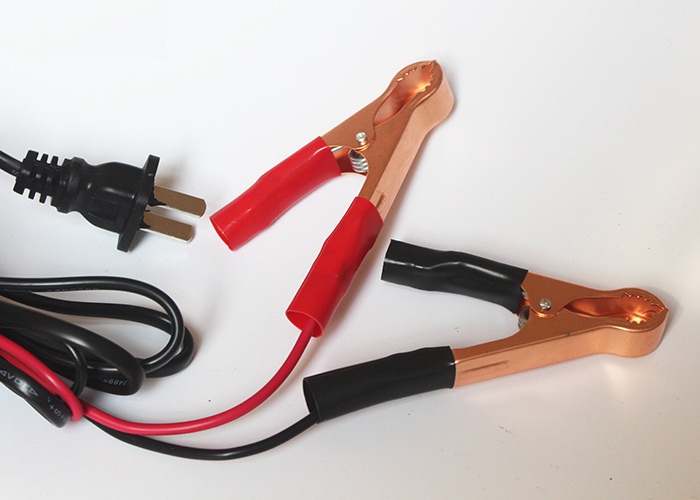

- Output cable:60cm
- Input cable:120cm

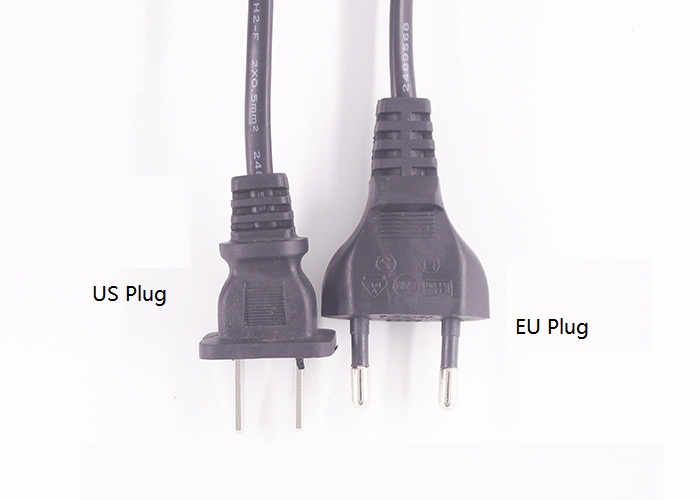

- EU/US Plug
- Size:19x14x7cm
- Weight:0.75kg

For 12V battery,the actual output current is about 10A.
For 24V battery,the actual output current is about 7.5A.

Note:The actual current should be charged with constant current and constant voltage depending on the demand of the battery. When charging is complete, automatic constant pressure automatically stop,change to floating charge mode,now the constant current is about 0.2A.

7Ah battery: 1-3 hours
9ah battery: 3-4 hours
10ah battery: 4-5 hours
20ah battery: 4-7 hours
32AH battery: 6-8 hours
36ah battery: 7-10 hours
45ah battery: 8-12 hours
55ah battery: 9-14 hours
60ah battery: 11-16 hours
80Ah battery: 13-18 hours
105ah battery: 16-20 hours
120ah battery: 17-25 hours
120ah above the battery will be analogy

Package Included:
- 1 x XW-20S/DQWL-20S CarBattery Charger
- 1 x Manual
