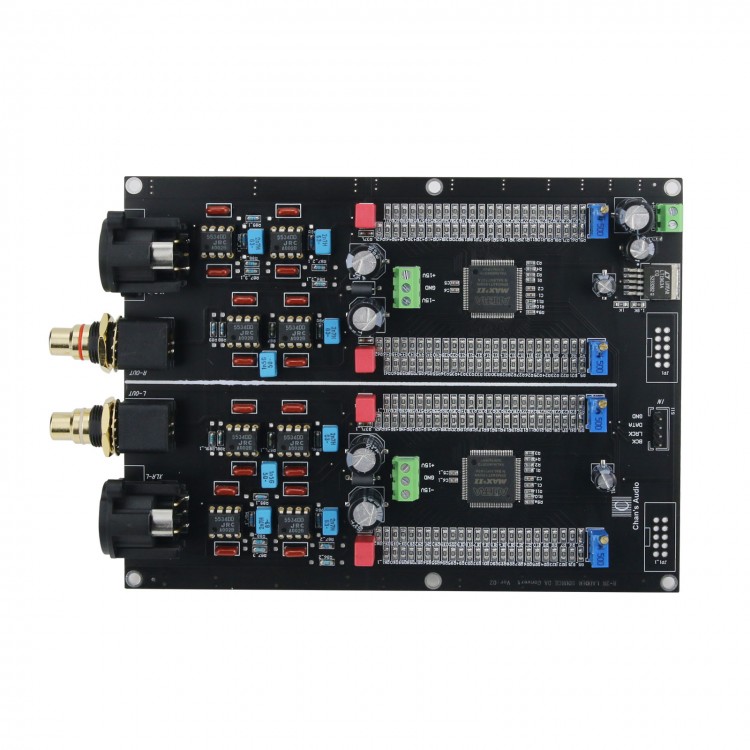

XY-R2R-XLR-V2 Network Decoder Board DAC Board 24Bit 384Khz PCM NOS R2R High-Precision Resistance
Description:
The whole decoder board uses CPLD as data processing. Because CPLD is parallel processing, it will not be serial processing like the peripheral logic chip, of which delay between all the gates will accumulate. The delay to the last data is very large. The resulting signal jitter cannot be ignored. Therefore, the R2R DAC developed by CPLD has advantages.
This decoder board has mid-tone accuracy, deep bass diving, and high-tone accuracy. The overall experience shows that the degree of separation is better than that of an integrated IC solution. (Under the premise of cooperating with our USB interface card).
This product adopts SMT industrial production, the components are neat and beautiful, and the solder joints are full and shiny. SMT production reduces manual reclaiming process and avoids soldering wrong components. Greatly improve the accuracy and precision of decoding. Good voice is ensured. Thanks to its lower price, enthusiasts can enjoy the treatment of large-scale machinery.
Specifications:
- Product name: For LADDER SOURCE DA Convert XLR
- Edition: 2.0
- Dimensions: 160 x 123mm (LxW), excluding the sizes of connectors
- Voltage: DC voltage +5v logic circuit power supply. DC voltage +15v 0v -15v analog amplifier circuit power supply (one channel, one channel, separate power supply)
- Signal input: 4-wire I2S (for Philips IIS format) does not support left-justified, right-justified GND BCK LRCK DATA
- Supports the highest sampling rate and tested PCM384KHZ to work normally, and does not support DSD
- Output: Single-ended (RCA) L-OUT and R-OUT; Balanced (XLR) XLR-L +/- and XLR-R +/-
- Output analog signal level: single-ended 2.5vRMS; Balanced 4.8vRMS
Attention:
- Power supply mode does not support connection to a transformer, and the rectifier voltage stabilizer board should be used for power supply.
Package Included:
- 1 x DAC Board
