XY6020-W Digital Adjustable DC Regulated Power Supply Constant Voltage and Constant Current 20A/1200W Step-down Module
Parameter:
- Product Model: XY6020
- Input voltage range: 6-70.00V
- Output voltage range: 0-60.00V
- Output current range: 0-20.00A
- Output power range: 0-1200W
- Input voltage measurement resolution: 0.01V
- Output voltage setting measurement resolution: 0.01V
- Current setting measurement resolution: 0.01A
- Input voltage measurement accuracy: ±(1%+5 digits)
- Output voltage setting and measurement accuracy: ±(0.4%+1 digit)
- Output current setting and measurement accuracy: ±(0.5%+3 digits)
- Typical output ripple: 100mV VPP
- Product working temperature range:-10℃--40℃
- Capacity measurement range: 0-99999Ah
- Energy measurement range: 0-99999Wh
- Capacity and energy statistical error: ±2%
- Running time measurement range: 0-1000h
- Maximum output voltage: (input voltage÷1.1)-2
- Cooling fan on: current>2A; power>50W; temperature>50℃
- Cooling fan off after turning on: current <1.5A; power <45W; temperature <45℃
- Over temperature protection: default 110℃
- Screen brightness setting: 0-5 in total of 6 levels
- Display screen: 1.8 inch color LCD screen
- Product weight: 256g
- Product size: 125MM x 55MM x 35MM

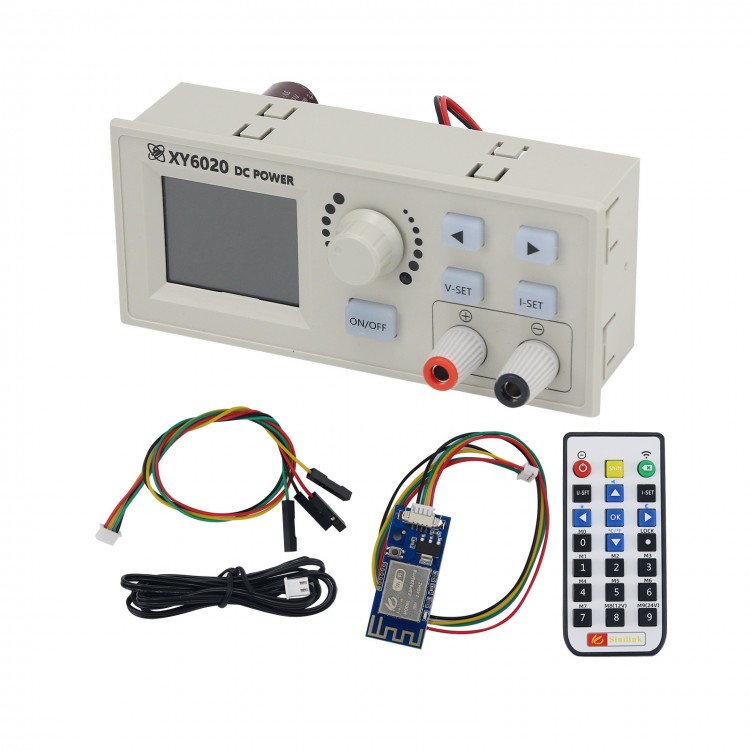

Package Included:
- 1 x XY6020 Power Module
- 1 x Remote Control
- 1 x External NTC/10K Temperature Sensor (line length: 1m)
- 1 x Serial Cable
- 1 x WiFi Communication Module
- 1 x Packaging Box
Note:
- Battery is not included.
