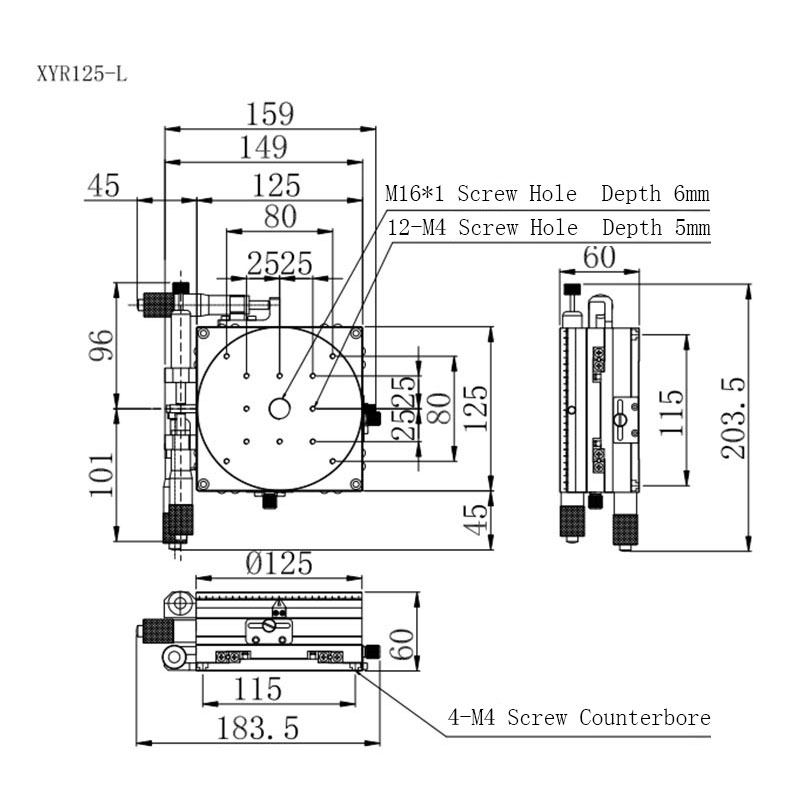

XYR 3Axis 125*125mm Manual Displacement Platform High Precision Sliding Table XYR125-L
Features:
- Using cross roller guide for high accuracy, smooth movement
- Lightweight: its main material aluminum alloy makes it suitable for built in other devices
- Drive Mode: micrometer drive mode for extra accuracy
- Rotating platform enables fine adjustment of the angle of the platform to the approximate location, using the thickness adjusting switch screws, can be fine-tuned using a micrometer
Parameters:
- Model: XYR125-L
- Direction of Movement: X, Y, R Axis
- Adjustment: Front &Rear, Left & Right, Rotation Precise Fine Adjustment
- Material: Aluminum Alloy (Surface black anodizing)
- Dimension: 125*125mm
- Rail Type: V-rail (Cross Roller Guide)
- Travel: XY Axis: ±12.5mm; R Axis: Coarse Adjustment 360° Rotation, Fine Adjustment ±10°
- Minimum Scale: 10μm
- Load: 49N (5kgf)
- Accuracy: 10μm
- Linearity: 5μm
- Weight: 3.4kg
Package Included:
- 1 x Manual Displacement Platform
