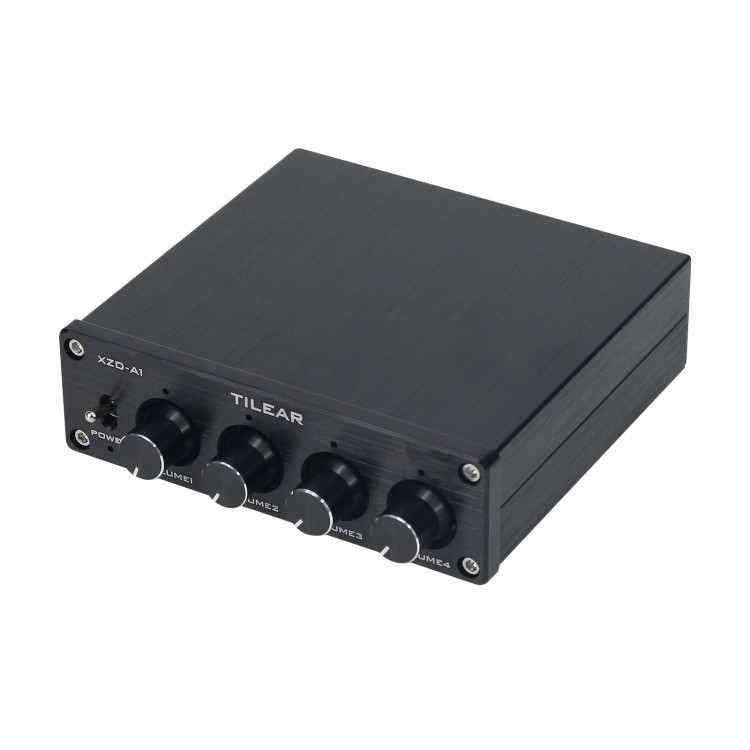

XZD-A1 Audio Signal Distributor Audio Distributor 1 Input 4 Output (Black Panel) With Gain Switch
Features:
1. One input and four outputs; and each output volume is independently controlled
2. Built-in MCU control circuit can control the impact sound generated when turning on and off to achieve a static effect
3. With a 10dB gain switch. You can adjust the volume appropriately; add the level to the device with low output level and increase the volume
4. Frequency response 20-20kHz±0.1dB, distortion 0.0001%; the same output phase and input phase
5. Each channel is processed independently by an op amp without interfering with each other; NE5532 for TI are used and can be replaced according to your needs. Supply voltage of op amp is ±12V. The socket of the op amp is a gold-plated socket for Nextron, which has good contact and long service life.
6. Hifi components: solid filter capacitors for NCC, infinite audio coupling capacitors, audio coupling for Tk audio, etc.
7. Gold-plated RCA sockets have good contact; brushed aluminum shell, laser engraving process; high-grade product with beautiful appearance
8. Power supply voltage: DC12V. Current: 1A or above is recommended
9. Wiring: Connect a signal source to the input port of the switcher through an RCA line output. Connect the output of the switcher to the monitor via RCA cable
10. Product size: 117 x 107 x 35mm/4.6 x 4.2 x 1.4" (WxDxH)
11. Net weight: 350G/0.8LB
Package Included:
- 1 x Audio Distributor
Note:
- Power adapter is not included.
