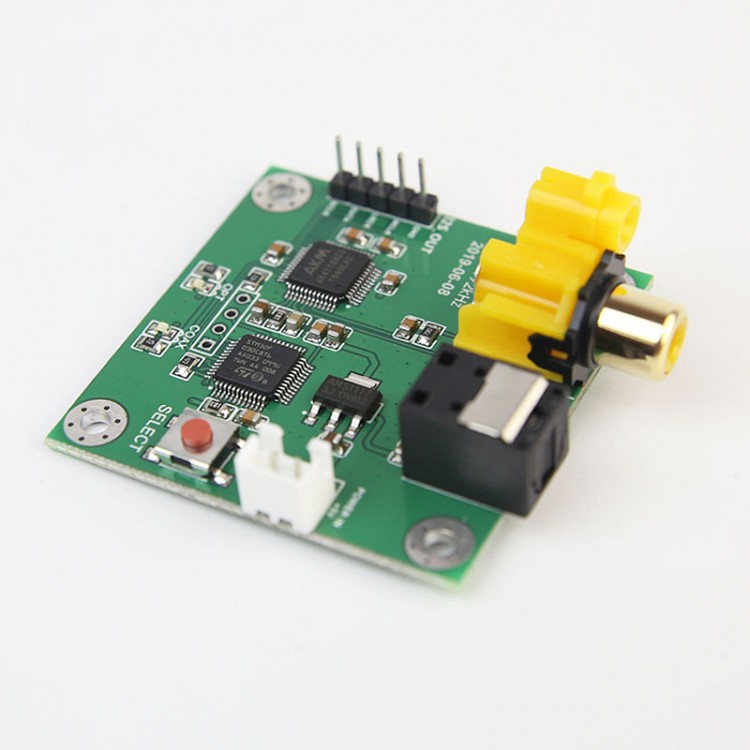

Y13 Digital Receiver Board AK4118EQ Software Control Board 24Bit 192KHz Coaxial Optical To IIS Output
Parameters:
- Coaxial input: support 16-24bit 44.1-192kHz
- Optical input: support 16-24bit 44.1-192kHz
- STM32 MCU control
- Input channel indication: When COAX LED is on, it proves that the current channel is coaxial, and when OPT LED is on, it proves that the current channel is fiber input
- Lock status indication: No signal means that the LED of the input channel is off, and the LED is always on when there is a signal input
- Input channel with power-down memory
- Input channel selection button
- Board size 4.7cm*4.7cm
- Power supply requirement: DC 5V
- 2.54 spacing of I2S output pin headers
- Frequency multiplication description: MCLK=128fs, BCLK=64fs
Package Included:
- 1 x Digital Receiver Module
