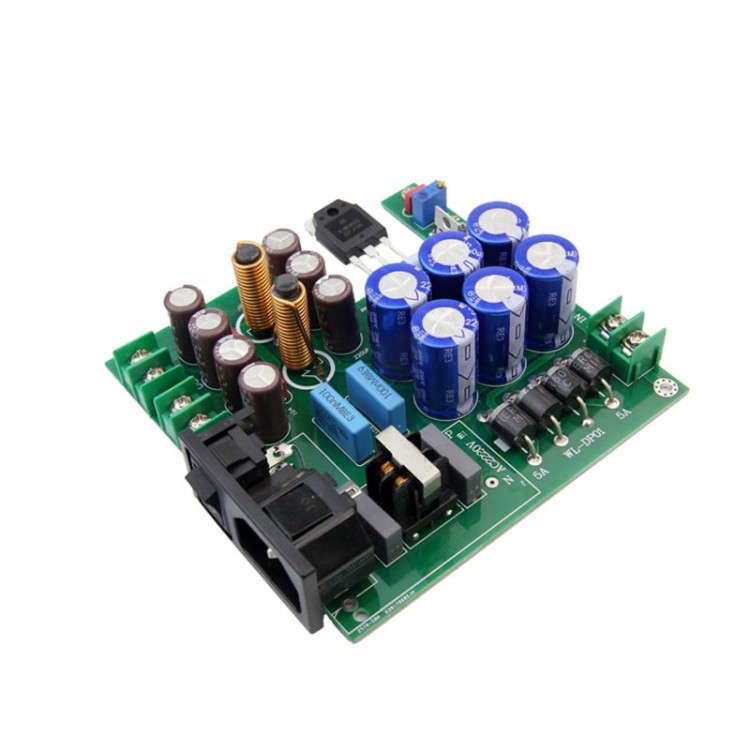

Y8 Basic Version 50W DC Regulated Linear Power Supply Board 12V Module WL-DP01 Fits Audio Equipment
Y8 Basic Version:
- Solution: NPN transistor circuit
- Maximum power: 50W
- Size: 108 x 108 x 30mm
Product Description:
It is a finished pure power supply board, without wires, transformers or chassis. It has been debugged.
This 50VA linear power supply can be matched with more performance transformers such as for Porcupine. Excellent performance and very low noise TL431 plus high-power transistor discrete voltage regulator circuit, high-speed low-resistance electrolytic capacitor and other audiophile components.
It is used to upgrade various audio equipment, digital equipment, NAS hard disk box, mobile hard disk box, various CAS, wireless router, optical fiber module, set-top box, MAC mini, PC HiFi, for Thinkpad HP Asus and other portable computers.
It features three-level filtering, one-level EMI, two-level capacitor array, and three-level CLC to reduce the output ripple to the lower limit of instrument test.
Attention:
- Output voltage: DC12V at 3.5A (Maximum output current. If you need other output voltages, such as 5V, 9V, 15V, 19V, 20V, 24V, please contact customer service
- Output terminals: 2pcs 2P output sockets
- PCB dimensions: 108 x 108MM
Package Included:
- 1 x Linear Power Supply Board
Note:
- Component specifications will change periodically, please refer to the actual product.
