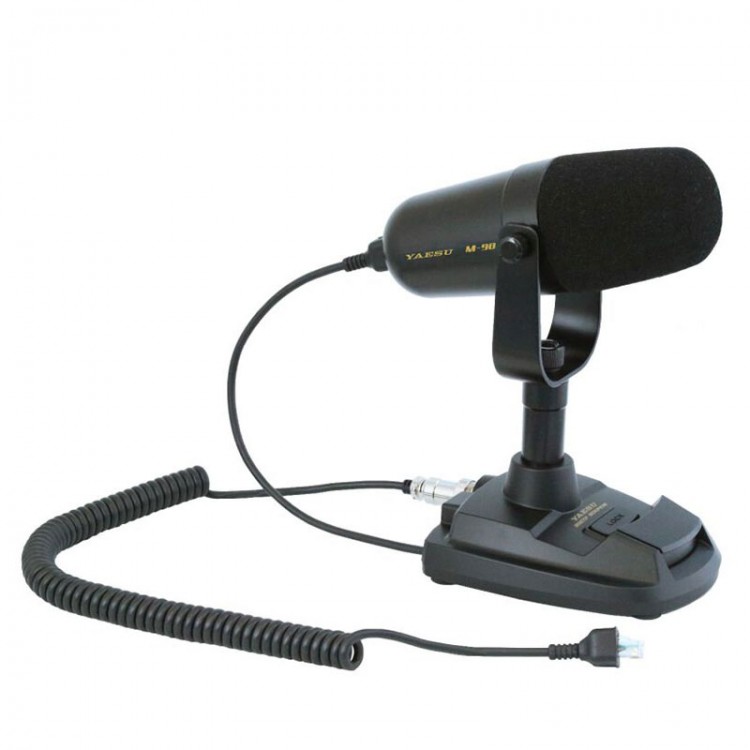

YAESU M-90D Desktop Dynamic Microphone Fits YAESU Shortwave Radio Stations FTDX10 FTDX9000 FTDX101

YAESU M-90D Desktop Dynamic Microphone Fits YAESU Shortwave Radio Stations FTDX10 FTDX9000 FTDX101

Features:
- Dynamic microphone with a sense of thickness, providing natural and rich mid- and low-frequency response
- Unidirectional large-diameter microphone element, which can suppress the coverage of environmental sound, and has an excellent frontal sound pickup effect
- Unique shell structure can reduce resonance and eliminate unnecessary sound sources to achieve the best sound quality of communication equipment
- Isolation transformer is integrated in the circuit board to improve audio quality
- Built-in low-cut filter creates clear audio characteristics by shaping the low-frequency response. - Large stable base support, adjustable up and down angle
- Adopt the long-stroke non-contact PTT key used by the advanced reference microphone M-1, with non-slip honeycomb surface treatment
- One-touch PTT lock button, convenient for long-term calls
- Equipped with wind screen to reduce noise, such as breathing noise
- Compatible with Yaesu shortwave radio stations with round 8-pin and 8-pin crystal head microphone plugs

Specifications:
- Microphone type: dynamic microphone
- Working voltage: DC5.0V±10%
- Working current: 5mA typical
- Frequency response: 30~17000Hz
- Sensitivity: -60dB (1kHz 0dB=1V/1Pa)
- Microphone impedance: 600Ω
- Dimensions: 106 x 192 x 126.5mm/4.2 x 7.6 x 5"
- Weight: about 530g/1.2LB

Compatible Models:
- FTDX10
- FTDX101
- FTDX9000
- FTDX5000
- FTDX3000D
- FTDX1200
- FT-1000MP
- FT-2000D
- FT-817ND
- FT-818ND
- FT-847/857
- FT-450D
- FT-891
- FT-897D
- FT-900
- FT-920
- FT-991A
- FT-950

Package Included:
- 1 x Set of M-90D Mic
