YDLIDAR X4 360° Laser Range Scanner Laser Radar Scanner Sensor Module 10m for ROS 3D Reconstruction

Availability: In stock, usually dispatched in 1 business day

  • Price:$90.83
  • Price in reward points: 908 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $89.01 $87.20 $84.47 $80.84 Contact US
Quantity:

YDLIDAR X4 360° Laser Range Scanner Laser Radar Scanner Sensor Module 10m for ROS 3D Reconstruction

Description:

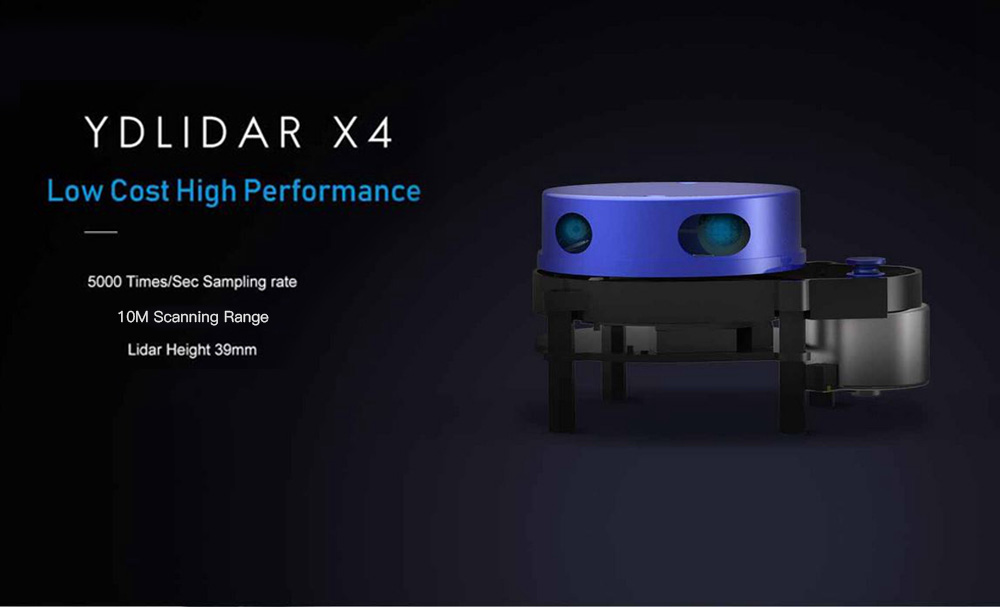

The YDLIDAR X4 Lidar is a 360-degree two-dimensional distance measurement product (hereinafter referred to as X4). This product is based on the principle of triangulation, and is equipped with relevant optics, electricity, and algorithm design to realize high-frequency and high-precision distance measurement. At the same time as the distance measurement, 360 degrees of scanning distance measurement is achieved by continuously obtaining the angle information through the 360 degree rotation of the motor.

Features:

- 360-degree scanning distance measurement
- Small distance error; stable distance measurement and high accuracy

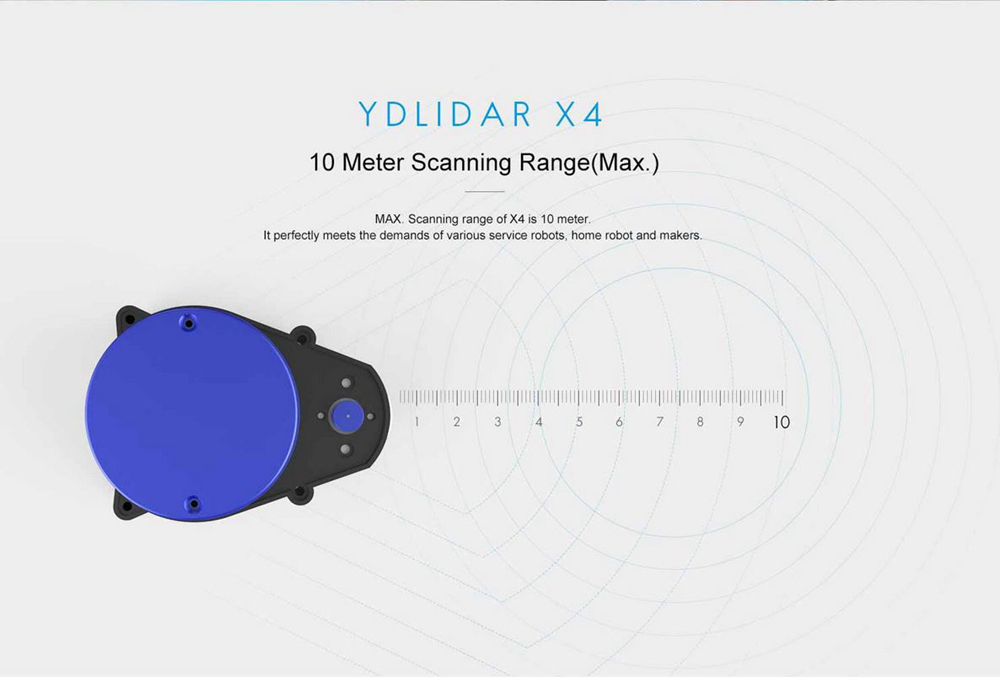

- Wide ranging range, not less than 10m
- Strong resistance to ambient light interference
- Industrial grade brushless motor drive, stable performance

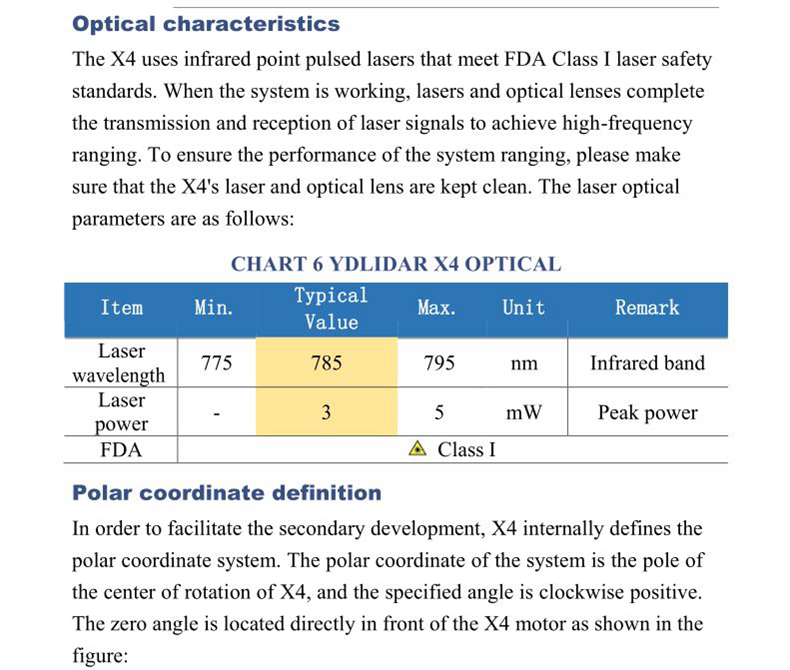

- Laser power meets Class I laser safety standards
- 360 degree omnidirectional scanning; 6-12Hz adaptive scanning
frequency
- High-speed ranging, ranging frequency up to 5000hz

Applications:
- Robot navigation and obstacle avoidance
- Robot ROS teaching and research
- Regional security
- Environmental Scan and 3D Reconstruction
- Home service robot/sweeping robot navigation and obstacle avoidance

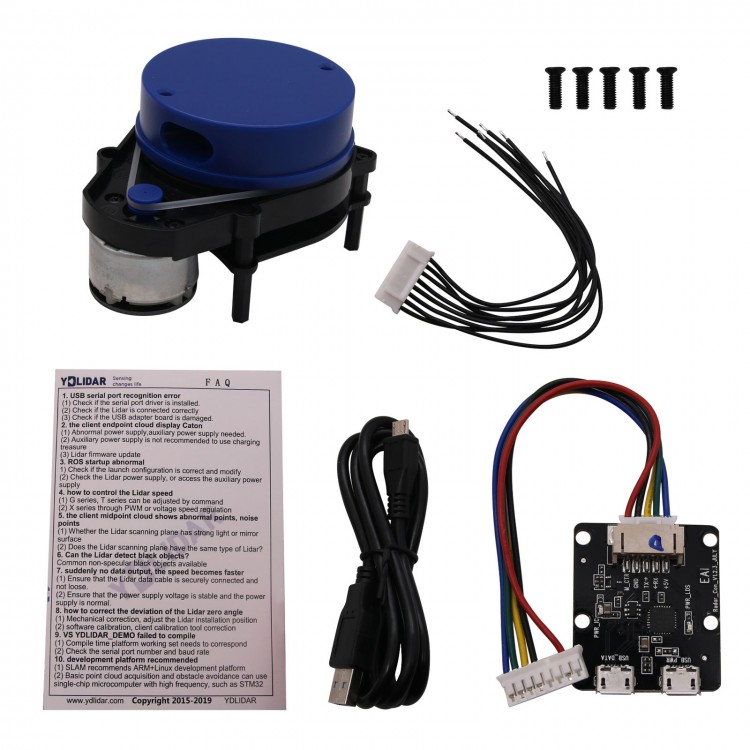

Package Included:

- 1 x Laser Range Scanner Module
