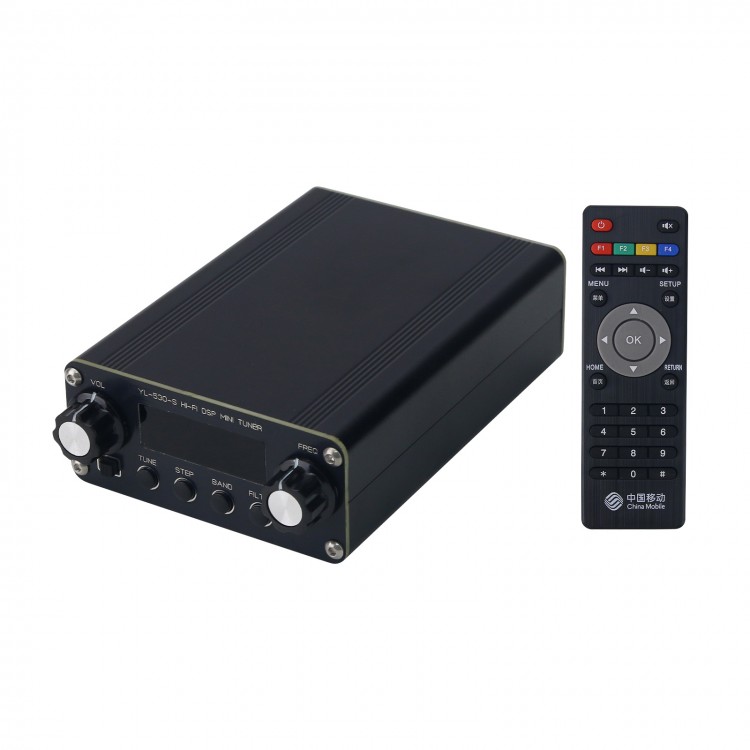

YL-530S New Full Band HiFi Mini DSP Digital Tuner Type-C Charging DIY DSP Radio Tuner Support for LW MW SW FM

YL-530S New Full Band HiFi Mini DSP Digital Tuner Type-C Charging DIY DSP Radio Tuner Support for LW MW SW FM

Improvements:
- For the convenience of users, the new model is equipped with a remote control that can achieve functions such as frequency direct transmission and quick channel selection.
- The entire circuit has been redesigned, and rigid connections between PCB boards are made using pin connectors, improving reliability and maintainability. The power supply adopts the popular Type-C interface. The power supply adopts common mode inductance to suppress the interference caused by the switching power supply and strengthen filtering, so using a mobile phone charger directly can also have good results.
- The audio part continues the mature design of the old model, but uses high-quality non-polar electrolytic capacitors for audio coupling. The SPDIF output also uses high-quality C0G non-inductive capacitors to ensure lossless output of digital waveforms, and can be connected to high fidelity DAC externally.
- The rear panel has two rows of heat dissipation holes, and combined with the internal structure, a circulating air duct can be established, where air enters from the lower row holes to take away heat and exits from the upper row holes, further enhancing the heat dissipation effect.
- In terms of the MW band, at a maximum bandwidth of 13.6KHz, the minimum display signal strength without an antenna can reach -8dBuV, and this is achieved when powered by a mobile phone charger.

Features:
- Taking NXP_SAF775x series chips as the core, it is carefully crafted with industrial modular design and first-class pure manual craftsmanship. The internal layout of the whole machine is reasonable and compact, and the appearance is exquisite and beautiful.
- Product size: 3.8 x 8.8 x 12cm
- Supports reception in long wave, medium wave, short wave, and frequency modulation bands.
- With strong anti-interference ability, it can effectively improve the reception of weak stations and minimize noise.
- Compared to traditional analog radio heads, DSP also has an excellent intermediate frequency bandwidth control capability, which can easily separate radio stations with 0.1MHz intervals.

Note:
- Power adapter is not included. Please prepare it by yourself.
- Due to the high power consumption of the DSP chip in the machine, ventilation and heat dissipation should be taken into account during high temperature weather in summer, and it should not be close to heat sources. If necessary, forced heat dissipation should be carried out.

Package Included:
- 1 x DSP Tuner
