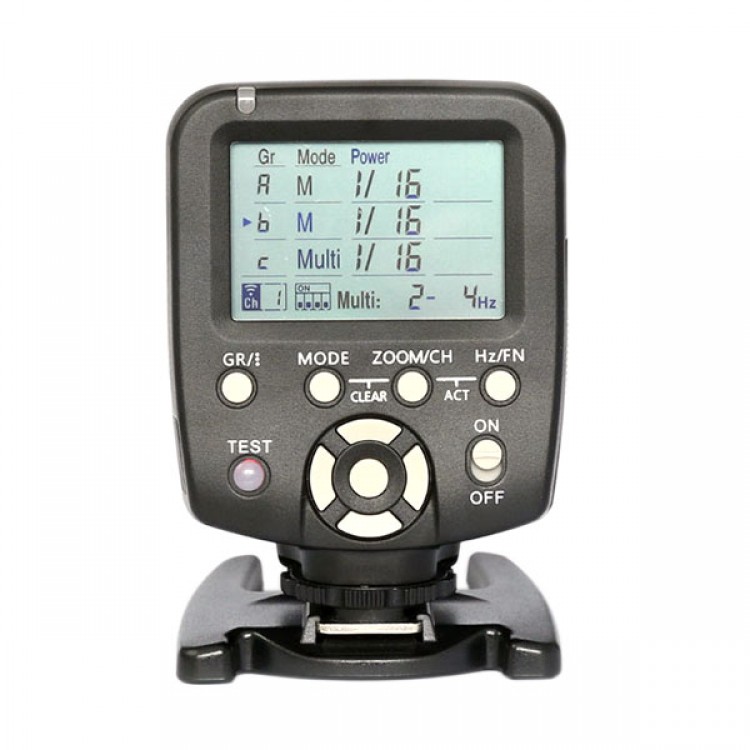

Yongnuo YN560-TX/C Wireless Flash Controller for Canon 500D 450D 400D 350D 300D

Yongnuo YN560-TX/C Wireless Flash Controller for Canon 500D 450D 400D 350D 300D

Specification
YN560-TX, manual flash controller, made specially for Yongnuo YN-560III made after January of 2013 year, but if you want to use it with our other Yongnuo flash speedlite, you just need the transceiver of Yongnuo RF-602, RF-603, RF603 II, because YN560-TX has built-in wireless trigger system.

You can use it not only as flash controller function, but aslo use it as remote control function.

Main function
    FSK 2.4G wirelss controller
    M / Multi Two mode
    Remote Control of Flash output and Zoom per group, up to 6 groups, A/B/C/D/E/F
    Zoom range: 24-105m
    Shutter Interface: 2.5mm shutter interface
    Compatible with YN-560III, RF-602, RF-603, RF603 II
    16 Channels
    Large and Clear Screen, user friendly interface
    100 meters transmission Range
    Battery Type: AA*2
    Stand-by time: 120hours

Features
1, Wireless Triggering Function
a, If you use it with YN-560 III, you need to activate the group function of YN-560 III with YN560-TX before you use them together, ( more detailed, you can see our manual. )
b, If you use it with other Yongnuo flash, like YN-560 II, YN-565EX, YN-568EX ( Manual mode ), you need a transceiver of Yongnuo RF-602, RF-603, RF-603 III.
2, Wireless Shutter Receiver Function
You can mount YN560-TX into Camera, use shutter release cable ( LS-2.5mm Series ) to connect it with your camera, and set RF-602, RF-603, RF-603 II in "transceiver" state , and then you can shutter release your camera
and you can also mount one flash into the hot shoe of flash transceiver, it also can be triggered synchronously.

Compatibility
--- Yongnuo YN-560III made after January of 2013 year.
--- Yongnuo RF-602 transmitter,RF-603, RF-603 II transceiver
--- Yongnuo YN-560II, YN-468II, YN-565EX, YN-565EX II, YN-568EX, YN-568EX II in manual mode ( You need to use RF-602, RF-603, RF-603 II together. )
---ALL Canon DSLR Cameras.

Packaged Content
    1 x YN560-TX Flash Controller for Canon
    1 x Manual in English and Chinese
    1 x Original box
