YR1035+ Lithium Battery Internal Resistance Tester Meter Range 0-100V 0-200Ω (Full Kit)

YR1035+ Lithium Battery Internal Resistance Tester Meter Range 0-100V 0-200Ω (Full Kit)

Note: Batteries are not included.

Description:
True four-wire 1Khz AC sinusoidal battery internal resistance meter. The maximum resolution of internal resistance is 0.00001Ω, and the maximum measurement range of internal resistance is 200.0Ω.

The maximum voltage resolution is 0.00001V, and the maximum voltage measurement range is ±99.999V. Tested lithium battery voltage can display to 0.0001V, ensuring high sensitivity. It can measure positive and negative voltages.

It can measure lead acid, lithium ion, lithium polymer, lithium iron phosphate, alkaline, dry battery, nickel metal hydride, nickel cadmium, button battery, etc. Use ZR function to measure internal resistance below 5 milliohms with higher accuracy.

Advantages:
- High precision
- Cost-effective
- Smart anti-reverse connection
- Widely used

Accessories Meet Your Needs:
- Probe test line is suitable for measuring all kinds of batteries and has good versatility;
- Kelvin clips are suitable for measuring lead terminals, sheet-shaped pole ears, etc. Just clamp the positive and negative poles of battery to free your hands;
- 18650 test stand is suitable for cylindrical batteries such as 18650.

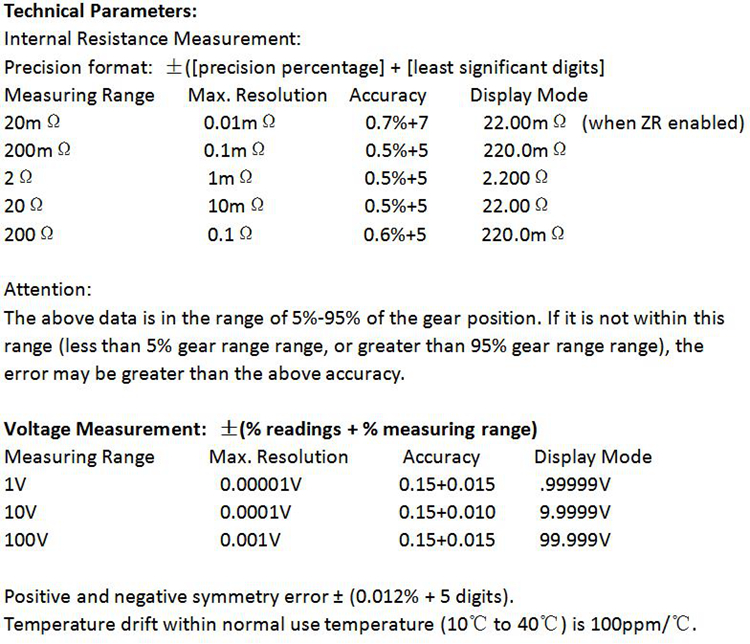

Specifications:
- Item Name: Battery Internal Resistance Tester
- Model No.: YR1035+
- Voltage Measuring Range: 0-100V
- Internal Impedance Measuring Range: 0-200Ω

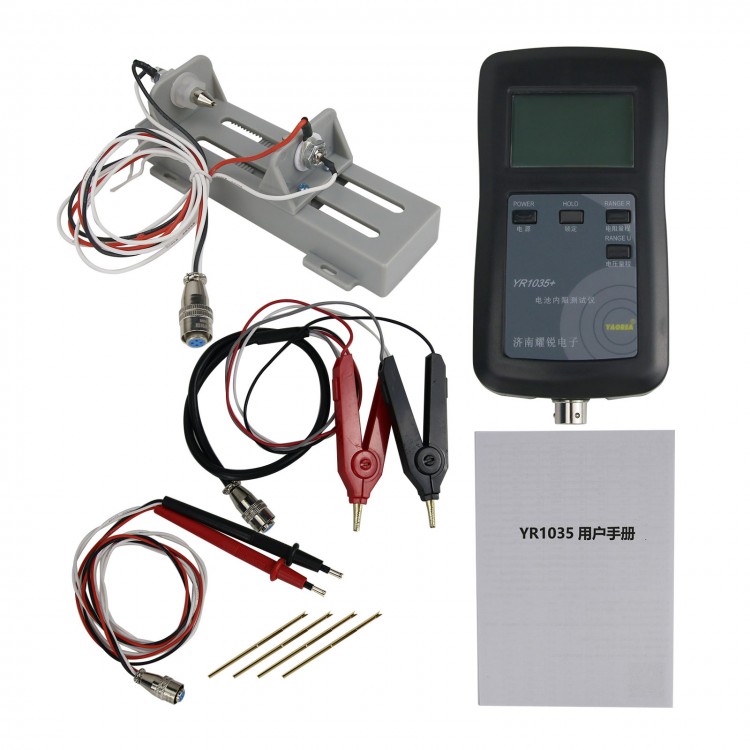

Package Included:
- 1 x YR1035+ Tester
- 1 x Set of Probe Test Line
- 1 x Set of Kelvin Clips
- 1 x Battery Test Stand
