YS-audio 6N11 Class A Headphone Amplifier Tube Headphone Amp Output Protection with Power Adapter
Description:
The 6N11 Class A tube headphone amp has undergone many improvements. Its lines have become more mature. New features added:
1. Output with mute protection: avoid damage to your headphones caused by the impact generated when it turns on.

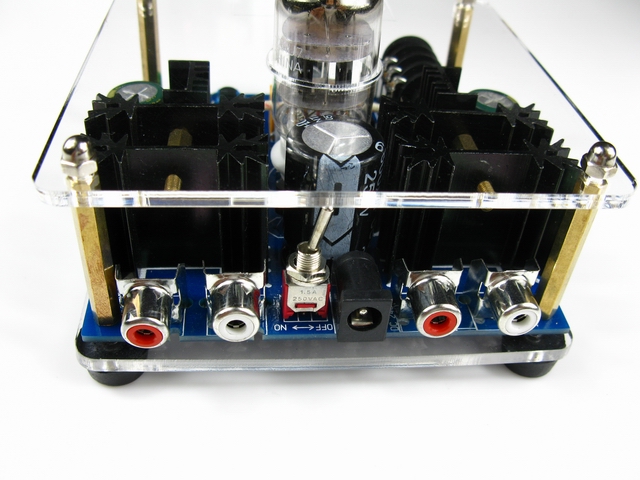

2. Added RCA and 3.5mm transfer switch for easy use.
3. Added 12A series and 6N series function switch. Suitable for series 6 tubes: 6DJ8/6922/6n11/E88CC/6H23, etc. Also for series 12 tubes: 12AU7/12AX7/12AT7/ECC82, etc.
4. Added preamp output interface, so that this headphone amp can be used as a Class A preamplifier.
5. The internal heat sink has been enlarged to allow the amp to work stably. Its sound quality is delicate, with high-fidelity and dynamics.
6. MOSFET as Class A amplification, and added 6N11 low-voltage tube. The sound is charming.
Specifications:
- Product name: Class A 6N11 tube headphone amplifier
- Working voltage: DC24V
- Input sensitivity: 50mV
- Output impedance: 16~320Ohm
- Gain: 32dB
- Frequency response: 20Hz-20KHz
- Size of main unit: 100 x 100 x 50mm/3.9 x 3.9 x 2" (Tube height and length outside the potentiometer are not included)

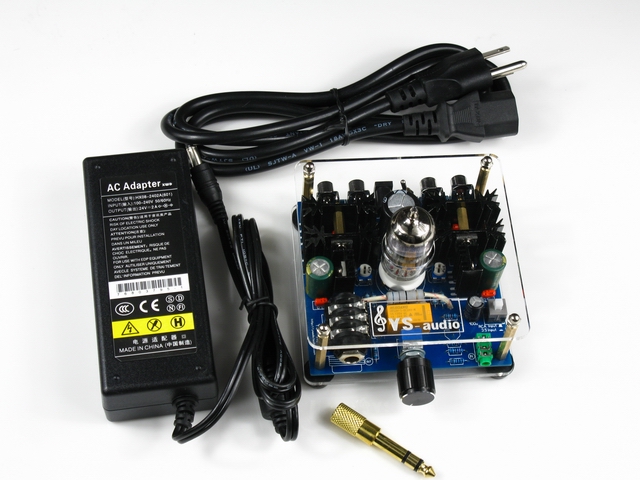

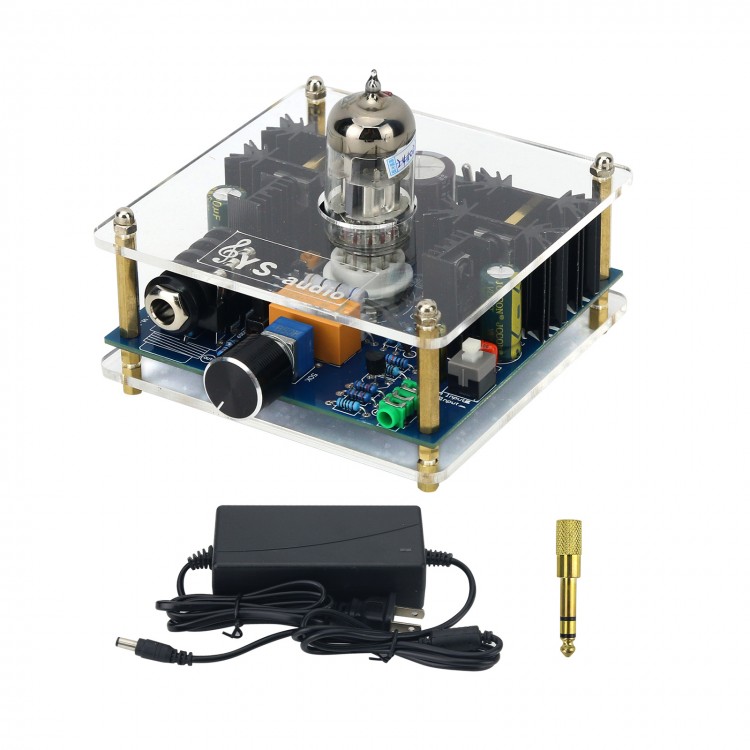

Package Included:
- 1 x Main unit
- 1 x 6N11 tube
- 1 x Power cable
- 1 x Power adapter
- 1 x Adapter plug
