YTE2030 Three-Clamp Digital Phase VA Meter High-Precision Voltmeter Ammeter with 3.5" LCD Screen

YTE2030 Three-Clamp Digital Phase VA Meter High-Precision Voltmeter Ammeter with 3.5" LCD Screen



Description:
YTE2000 series phase voltammetry meter is a multifunctional, digital, intelligent instrument specially designed for field testing. It boasts high precision, high stability, and low power consumption. It is easy to use. It is widely used in electric power, metallurgy, chemical industry, railway, industrial and mining enterprises, scientific research institutions, measurement departments and other industries.

It can simultaneously measure ac voltage, current, phase between voltage, phase between current, phase between voltage and current, frequency, active power, reactive power, apparent power and power factor.

Functional Features:
- Current and voltage accuracy: 0.5 class
- Using 3.5-inch TFT LCD screen (resolution 480x320)
- Displayed in Chinese and English
- Detection frequency: 0.2 times/second
- Voltage test input impedance: 1MΩ
- Visually display the vector diagram of voltage and current
- Accurate measurement of electrical parameters, including voltage, current, active power, reactive power, phase angle, power factor, and frequency
- Can store 16,000 historical records, which can be uploaded to PC through software
- When the battery voltage is lower than 3.2V, the device prompts to charge and shut down
- Two ways to supply power: power adapter and battery. Its built-in lithium battery can work continuously for more than 30 hours
- Automatic shutdown: The device can be set to automatically shut down without operation, and can be set to shutdown in 5 minutes, 30 minutes, 45 minutes, and 60 minutes, saving energy consumption and battery life
- Screen brightness: Screen display brightness can be adjusted according to the on-site ambient light to protect users' eyes and save power
- Interface: Type-C interface and serial communication

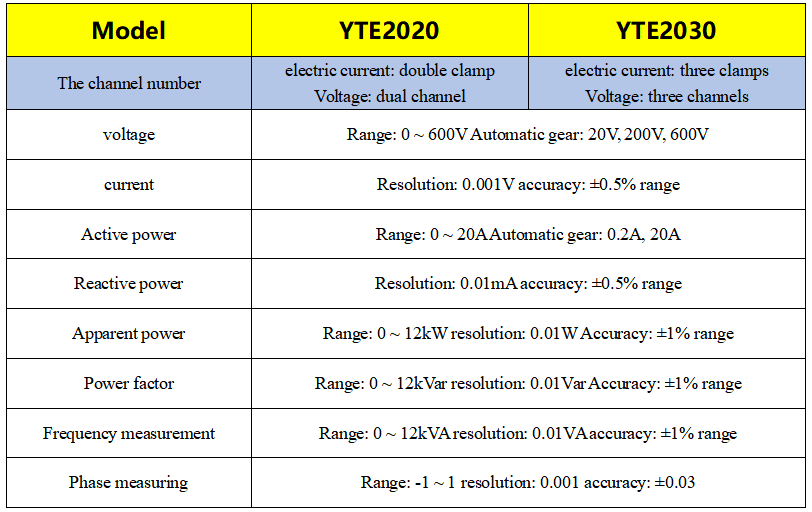

General Specifications:
- Power supply: battery power supply, or 5V/1A power adapter power supply (charging)
- Display: 3.5-inch TFT LCD screen, resolution 480x320
- Interface: Type-C interface, serial communication
- Dimensions: 210 x 110 x 34mm/8.3 x 4.3 x 1.3 (LxWxH)
- Weight: about 650g/1.4lb
- Working temperature: -10℃ to 40℃, relative humidity: 15% to 85%

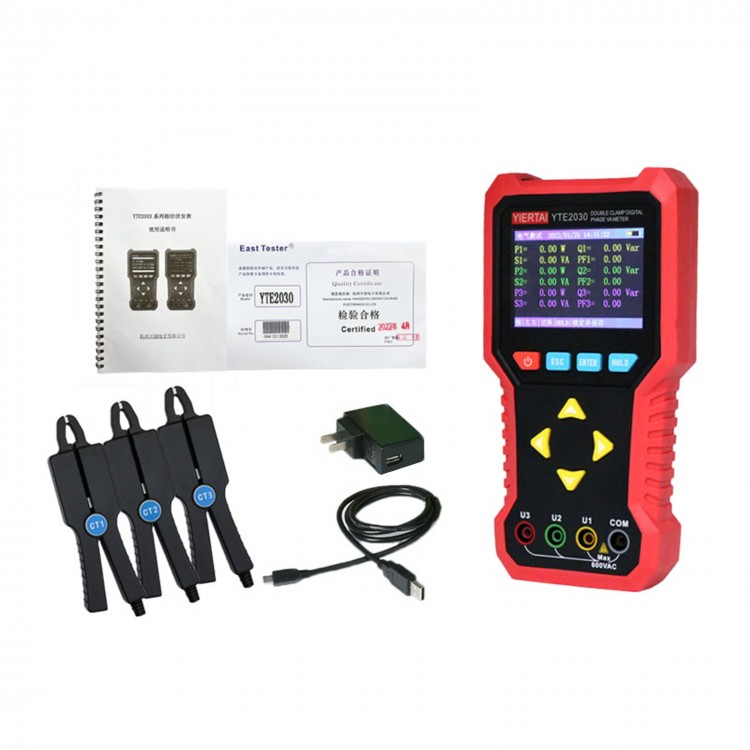

Package Included:
- 1 x YTE2030 Main Unit
- 1 x User Manual
- 3 x Current Clamps
- 4 x Test Cables
- 1 x Quality Certificate
- 1 x Type-C Data Cable
- 1 x Power Adapter
